AT INTERFACE DESCRIPTION
5 – 4
DMA Timing
TIMING PARAMETERS MODE 0 MODE 1 MODE 2
t0 Cycle Time (min) 480 ns 150 ns 120 ns
tC DMACK to DMARQ delay
tD DIOR-/DIOW- (min) 215 ns 80 ns 70 ns
tE DIOR- data access (min) 150 ns 60 ns
tF DIOR- data hold (min) 5 ns 5 ns 5 ns
tG DIOR-/DIOW- data setup (min) 100 ns 30 ns 20 ns
tH DIOW- data hold (min) 20 ns 15 ns 10 ns
tI DMACK to DIOR-/DIOW- setup (min) 0 0 0
tJ DIOR-/DIOW- to DMACK hold (min) 20 ns 5 ns 5 ns
t K r DIOR- negated pulse width (min) 50 ns 50 ns 25 ns
tKw DIOW- negated pulse width (min) 215 ns 50 ns 25 ns
tLr DIOR- to DMARQ delay (max) 120 ns 40 ns 35 ns
tLw DIOW- to DMARQ delay (max) 40 ns 40 ns 35 ns
tZ DMACK- to tristate (max) 20 ns 25 ns 25 ns

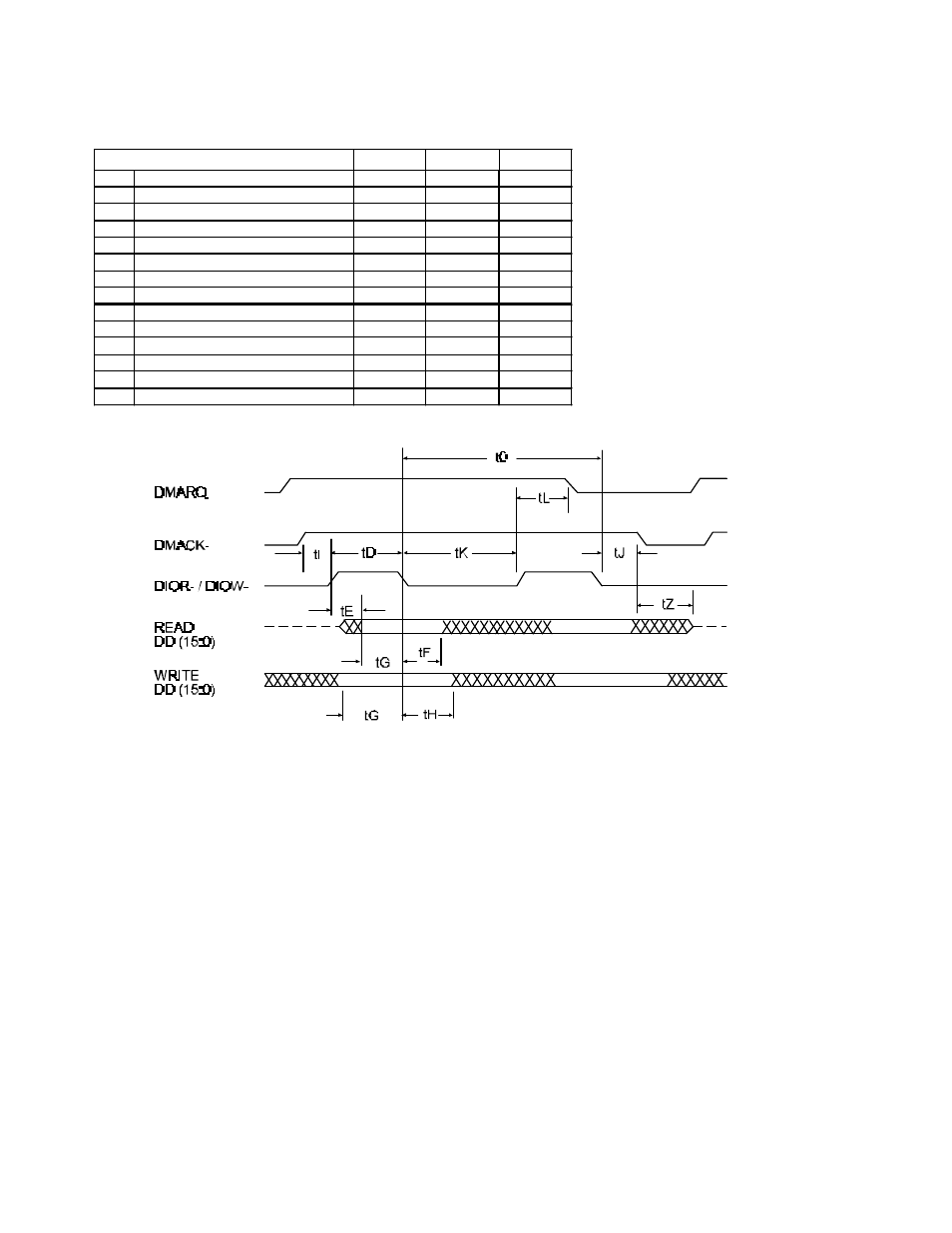

Figure 5 - 3
Multi-word DMA Data Transfer
