Mini PCI Slot
This is a 32 bits, 33 MHz and 133 MBps PCI slot, only select the MiniPCI adapters can
be installed.
Mini PCI Slot

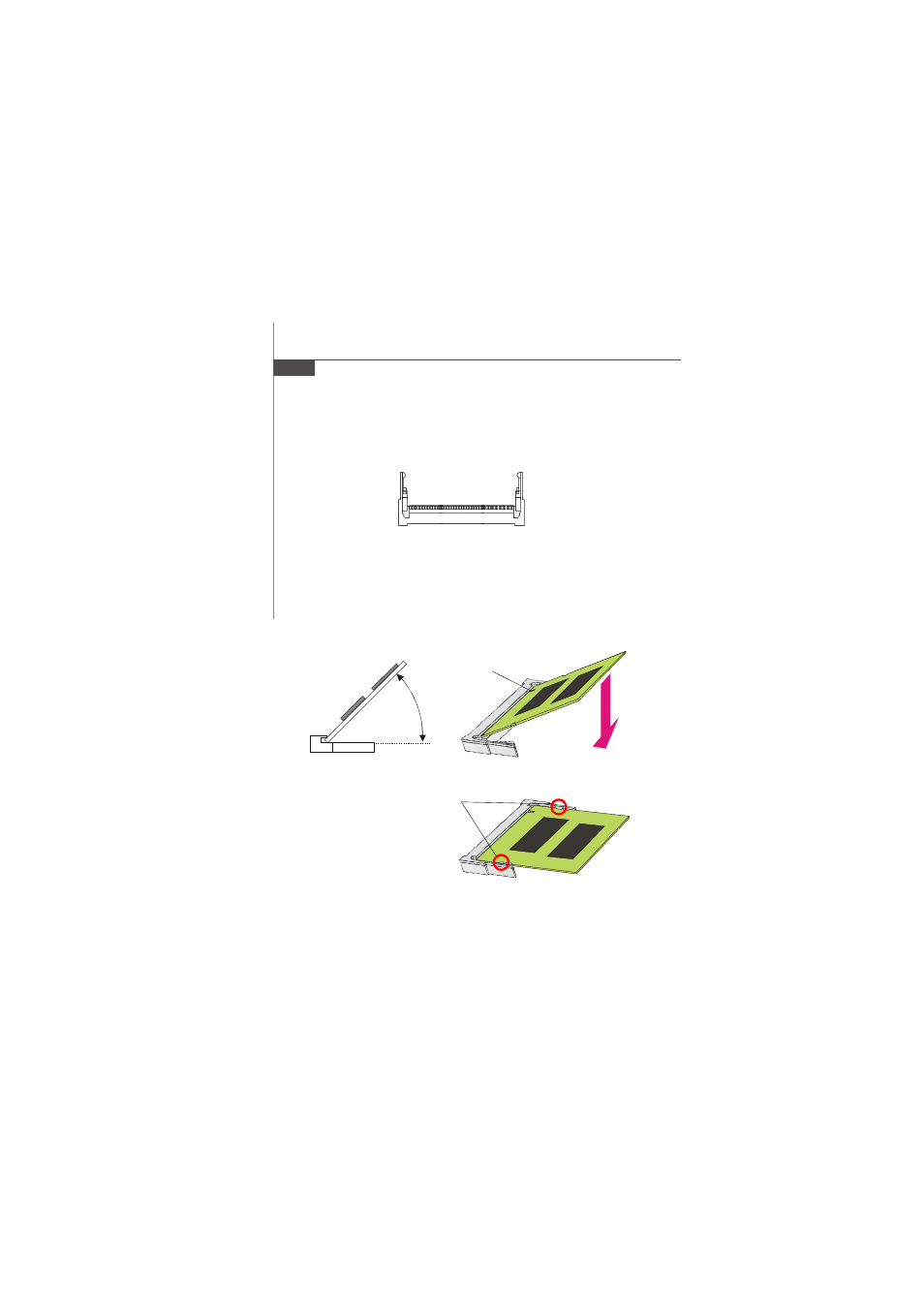

Installing Mini PCI Cards
1. Insert the card at an angle of 45 degrees into the Mini PCI slot, Line up the notch in
the card with the small tab in the slot and slide the card into the slot until the golden
finger is almost invisible.
2. Push the Mini PCI card down until the two snaps on either side of the card lock into
place.
45 o
Notch
Lock
