MSI CX700D User Manual
Page 21
2-3
Hardware Setup
Memory

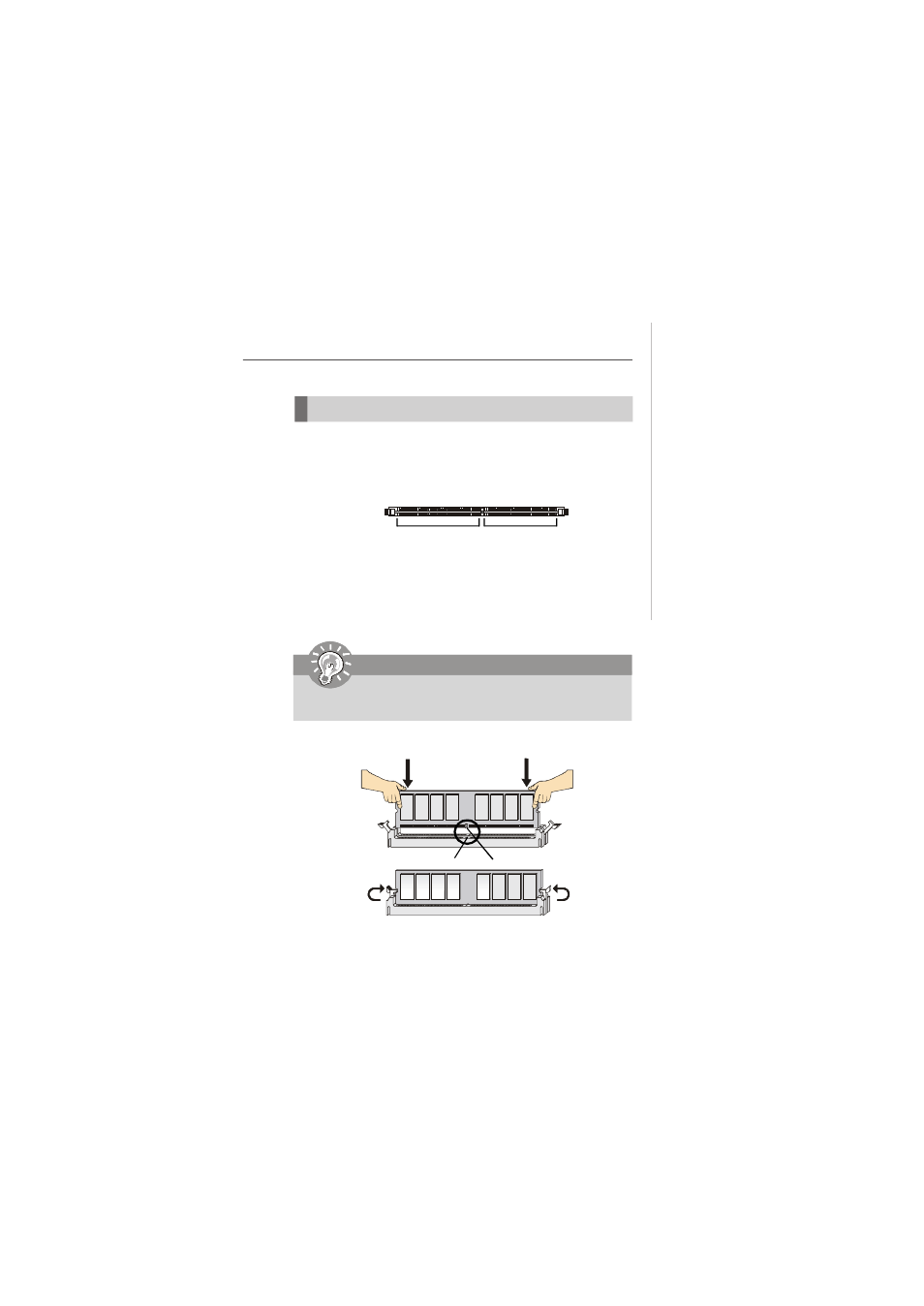

Installing DDR2 Modules
1. The memory module has only one notch on the center and will only fit in the right
orientation.
2. Insert the memory module vertically into the DIMM slot. Then push it in until the
golden finger on the memory module is deeply inserted in the DIMM slot.
3. The plastic clip at each side of the DIMM slot will automatically close.
Volt
Notch
Important
You can barely see the golden finger if the memory module is properly inserted
in the DIMM slot.
The mainboard provides one 240-pin non-ECC DDR2 400/533 and ECC DDR2 400
DIMM slot and supports up to 2GB system memory.
For more information on compatible components, please visit http://www.msi.com.
tw/program/products/server/svr/pro_svr_qvl.php.
64x2=128 pin
56x2=112 pin
DDR2
240-pin, 1.8V
