THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE.
The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane.
9
Grove TMS9000E
Travel proposals
Boom over front
Front (lb) Rear (lb) G.V.W. (lb)
Basic machine: Includes main and auxiliary hoists with rope, auxiliary boom nose,
manual bi-fold swingaway, headache ball stowed, 40 USt hookblock at bumper, no
counterweight and driver.
43,129 40,843 83,972
Add: 3000 lb counterweight on carrier deck and 3000 lb counterweight on
superstructure. Total counterweight 6000 lb.
44,459 49,532 89,991
Add: 6000 lb counterweight on carrier deck and 3000 lb counterweight on
superstructure. Total counterweight 9000 lb.
47,087 45,923 93,010
Add: 8000 lb counterweight on carrier deck and 8000 lb counterweight on
superstructure. Total counterweight 16000 lb.
46,699 53,330 100,029
Add: 13,000 lb counterweight, 13,000 lb counterweight on superstructure. Boom
telescoped 2 ft. Total counterweight 26,000 lb.
50,405 59,624 110,029
Air conditioning - chassis and superstructure cabs 99 19 118
Hydraulic bi-fold swingaway in lieu of the manual swingaway (includes hose reel) 408 -13 395
Maximum allowable
Michelin tires
49,200
51,200
60,000
60,000
109,200
111,200

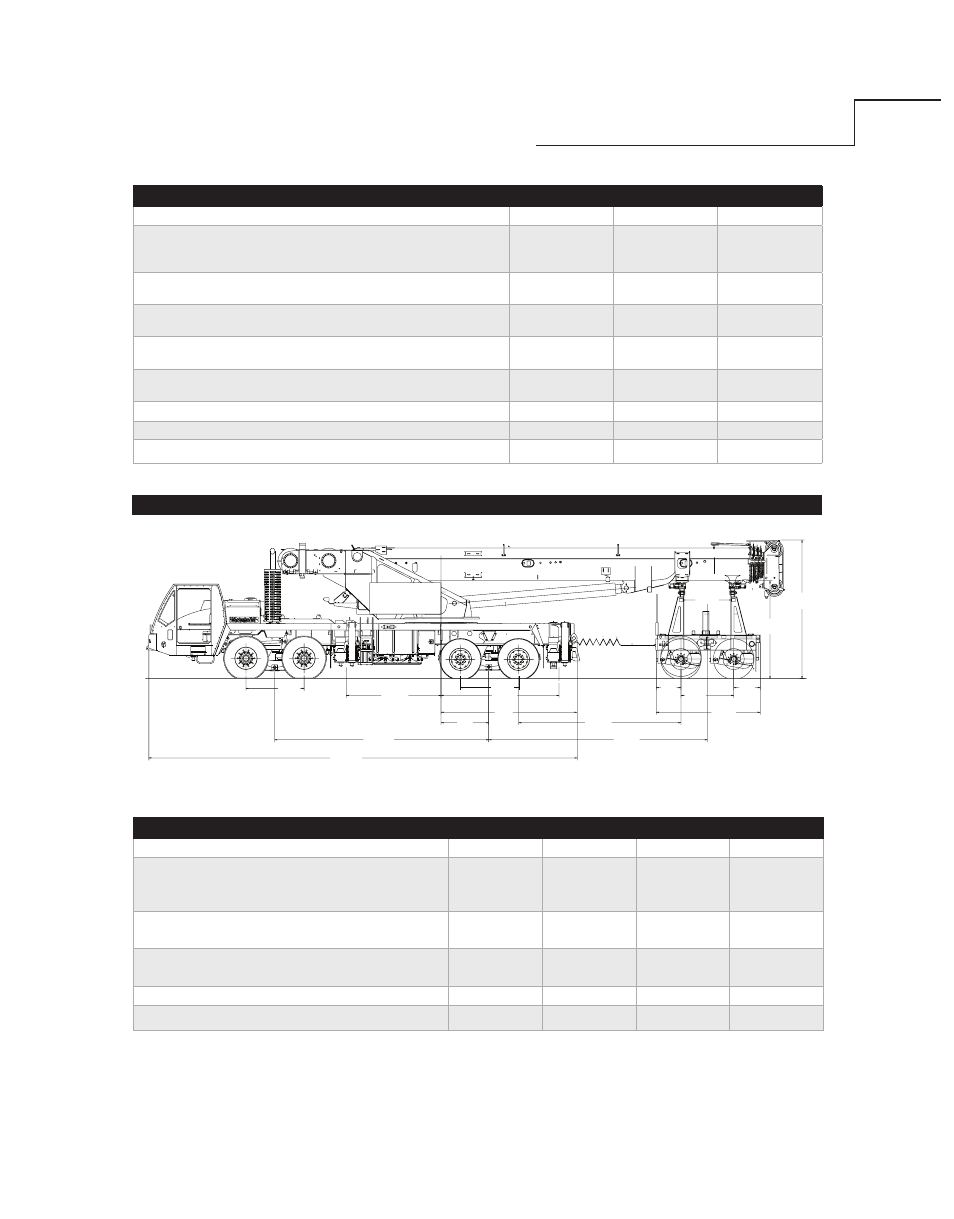

Unit configuration
Front (lb) Rear (lb) Boom Dolly (lb) G.V.W. (lb)
Basic machine: Includes main and auxiliary hoists with rope, auxiliary
boom nose, manual bi-fold swingaway, stowed headache ball, 40 USt
hookblock hanging at boom nose, no counterweight, driver and 6000
lb boom dolly.
35,797 32,223 21,952 89,972
Add: 6000 lb counterweight on front chassis deck, 5000 lb
counterweight on rear chassis counterweight carrier, 15,000 lb on boom
dolly. Total counterweight 26,000 lb.
39,416 39,856 36,971 116,243
Add: 8000 lb counterweight on front chassis deck, 5000 lb
counterweight on rear chassis counterweight carrier, 23,000 lb on boom
dolly. Total counterweight 36,000 lb.
41,157 40,115 45,009 126,281
Air conditioning - chassis and superstructure cabs 104 14 - 118
Hydraulic bi-fold swingaway in lieu of the manual swingaway (includes
hose reel)
64 39 291 395
���� mm
���.��"�
���� mm
����.��"�
���� mm
����.��"�
���� mm
���.��"� ���� mm
���.��"�
����
���.��"�
�� ��� mm
����.��"�
���� mm
���.��"�
��� mm
���.��"�
��� mm
���.��"� ���� mm
���.��"�
���� mm
����.��"� ���� mm
����.��"�
���� mm
����.��"�
���� mm
����.��"�
���� mm
����.��"�
���� mm
����.��"�
Trailing boom dolly
