Power Connection
We discuss the following topics:
¾
Using the Power Adapter
¾
Using Power Over Serial
¾
Power Status Check

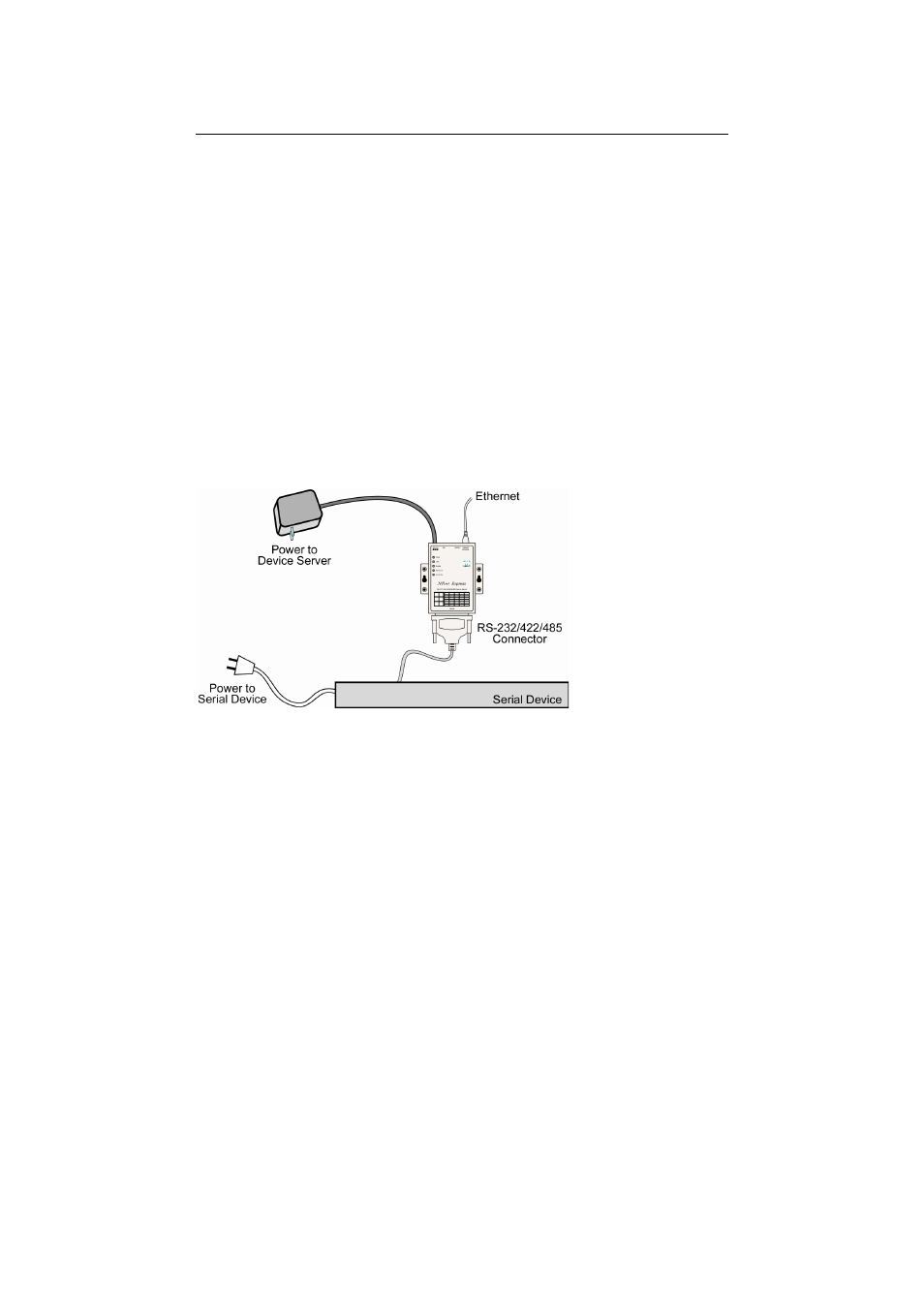

Using the Power Adapter
Take the following steps to connect NPort Express’s power adapter.
1. Plug the power adapter’s DC plug into NPort Express’s DC-IN jack.
2. Plug the power adapter into an electrical outlet.
Note that there is no on/off switch. The server turns on as soon as the connected
power adapter is plugged into a live outlet. The red PWR light on NPort Express’s
top panel will glow to indicate that it is receiving power.
