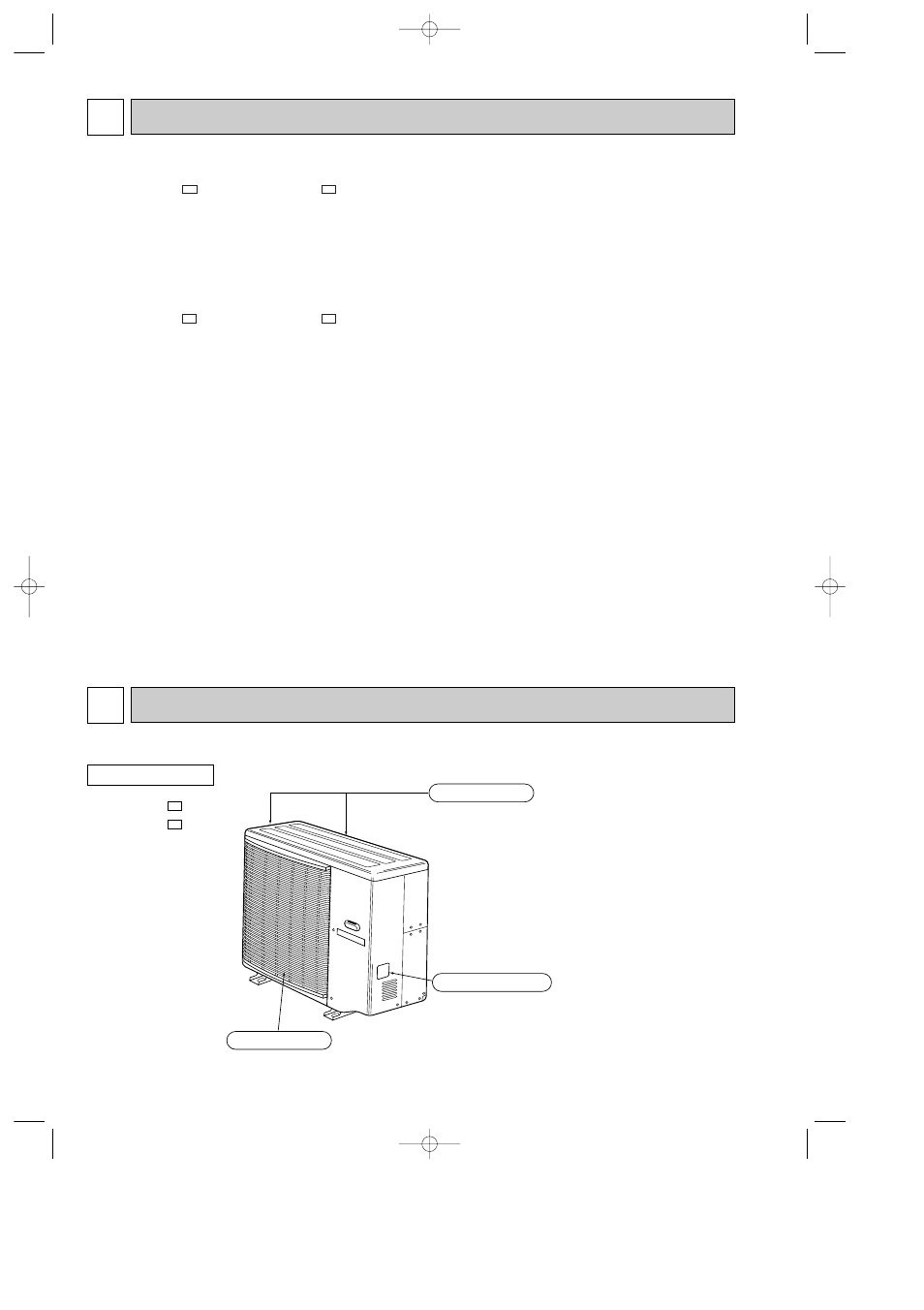

PART NAMES AND FUNCTIONS 2
OUTDOOR UNIT
Air inlet
Air outlet
(back and side)
Model indication
MXZ-32SV-
MXZ-32SV-
E2
E1
2
TECHNICAL CHANGES 1
MXZ-32RV - ➔ MXZ-32SV -
1. The combination pattern of the indoor unit has increased.
2. Crankcase heater has disused.
3. Refrigerant circuit has changed.
• Disuse of 2-way valve.
• Disuse of capillary tube
[ 3 o [ 2 o 500.
• Disuse of low pressure switch.
• Disuse of suction pipe temperature thermistor.
MXZ-32SV - ➔ MXZ-32SV -
1. Combinations of the connectable indoor units have increased.
2. Noise filter P.C. board has changed to improve the capacity for protecting the inverter-controlled circuit when the
voltage higher than the rated one is aupplied with the inverter-controlled circuit.
3. Noise filter P.C. board for “E1” and “E2” are not interchangeable.
4. Service parts have been changed as follows according to above change;
•The value of R(resistor)has changed. 10
Ω ➔ 20
Ω
•TB6(terminal block) has been removed.
E2 E1
E1 E1
