240/12 0V Hard Wire Hookup
With the voltage selector set and locked at ‘single phase
240/120’ and using single phase 120 volts, the generator
will provide three legs available with 100 amps each on three
different circuits (Figure 18).
480/240V Hard Wire Hookup
With the voltage selector set and locked at ‘3 phase 480/
277’ (Figure 19) and using the 3-phase 240 hookup, it will
provide one circuit available at 108 amps with any two wires
plus the ground (Figure 20).
When using the 3-phase 480 volts hookup, it will provide
one circuit available at 50 amps with all three wires plus
ground.

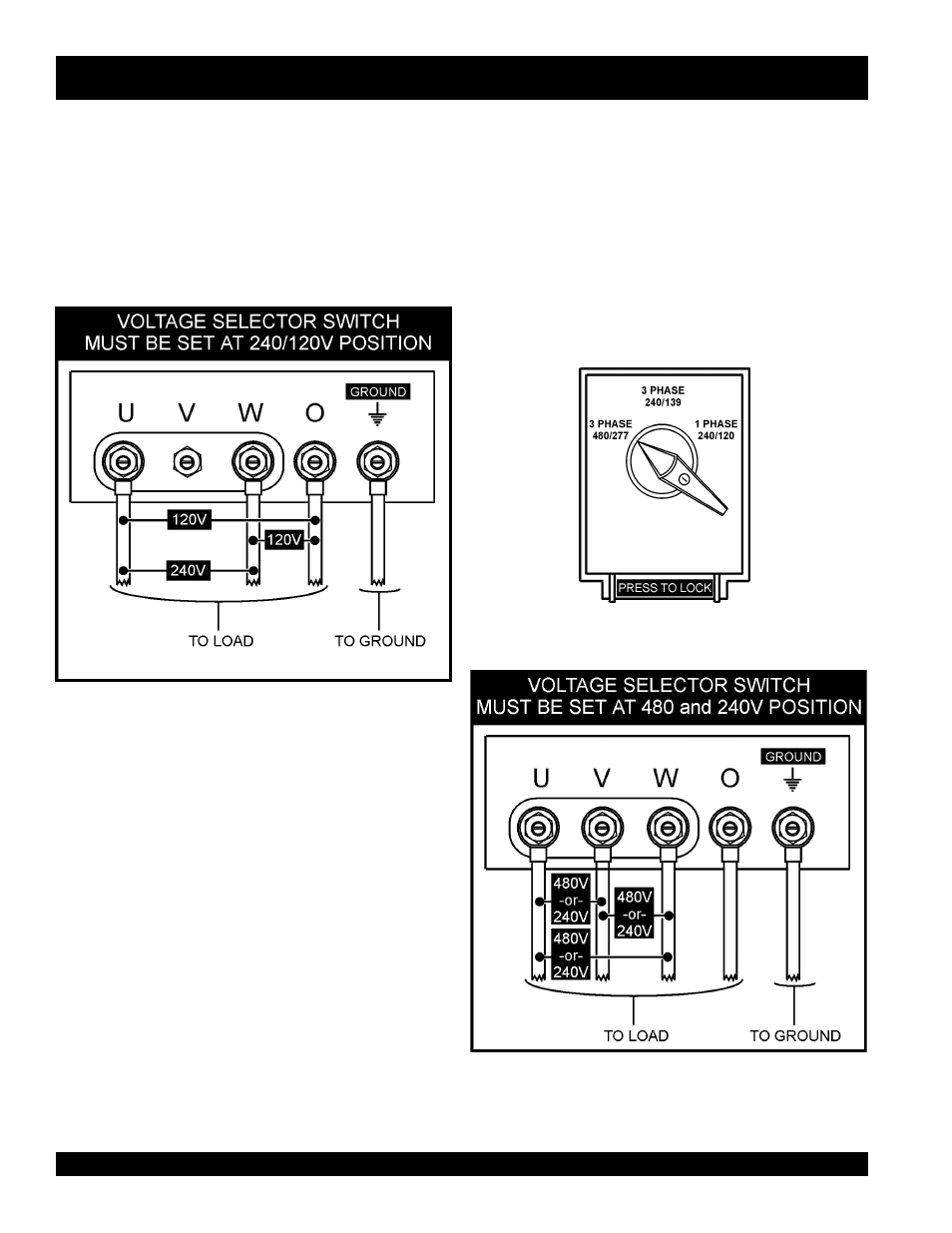

Figure 19. Voltage Selector Switch 480/277V Three Phase
Position
Figure 18. Hard Wire Hookup at 240/120V Position
Figure 20. Hard Wire Hookup at 480/240V Position
