DCA-60SSI2 — PARTS AND OPERATION MANUAL— REV. #3 (09/15/01) — PAGE 33

DCA-60SSIU — OUTPUT TERMINAL VOLTAGE SELECTION

DCA-60SSIU

Legs O and Ground are
considered Bonded Grounds.

NOTE

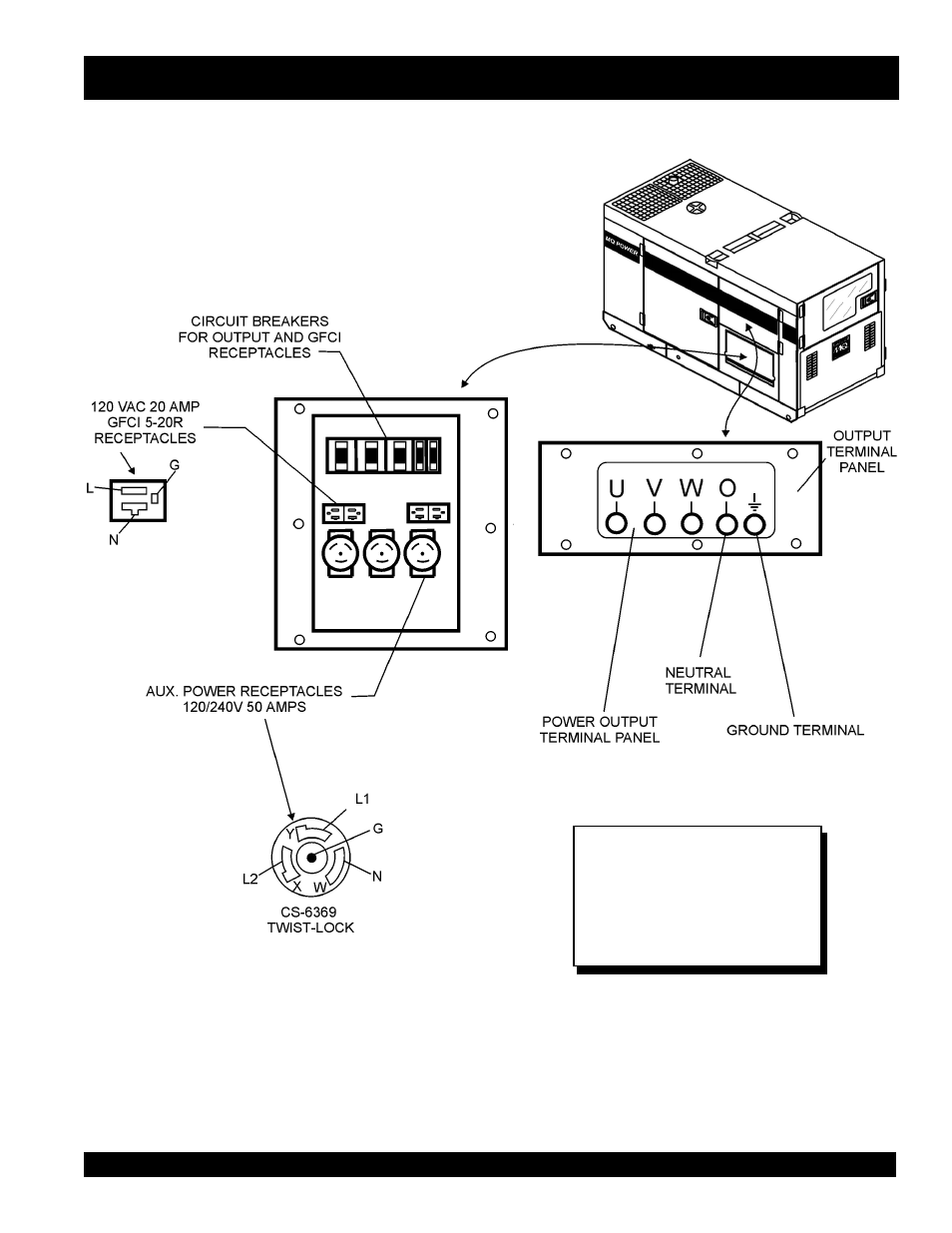

Figure 12. Output Panel Location
