120 VAC GFCI Receptacle
This120 VAC, 20 amp GFCI (Duplex Nema 5-20R) receptacle
can be used anytime the generator is in operation. The
receptacle is protected by a 20 amp circuit breaker. The
breaker can be located on the generator control panel.
Pressing the reset button resets the GFCI receptacle after
being tripped. Pressing the Test Button (See Figure 6) in
the center of the receptacle will check the GFCI function.
Both receptacles should be tested at least once a month.

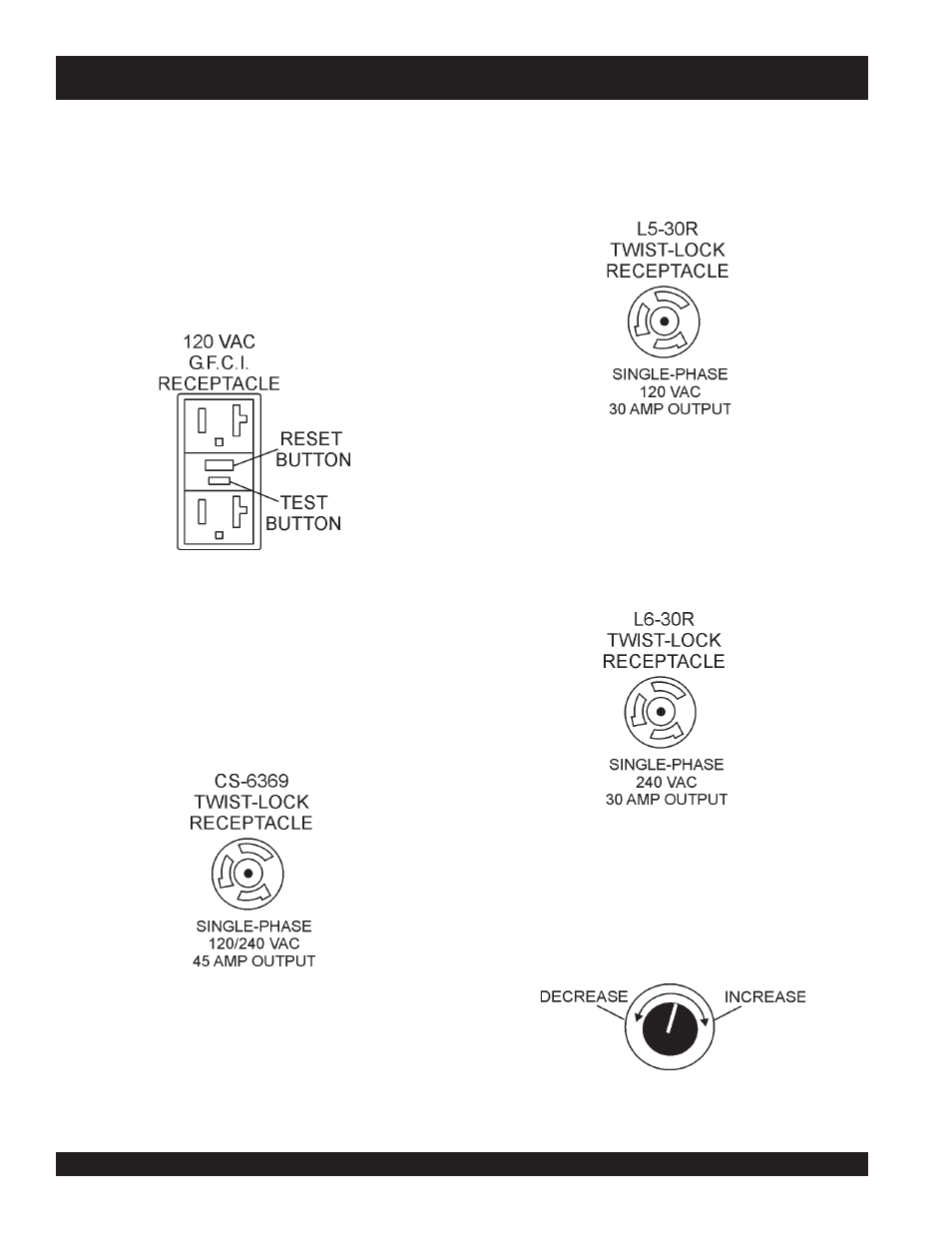

Figure 6. G.F.C.I. Receptacle
Turn the voltage regulator control knob (Figure 10) on the
control panel to obtain the desired voltage. Turning the knob
clockwise will
increase the voltage, turning the knob counter-
clockwise will decrease the voltage.
Figure 7. 120/240V CS6369 Twist-Lock
Auxiliary Receptacle
DCA-10SPX4 — OUTPUT TERMINAL PANEL FAMILIARIZATION
Twist Lock Dual Voltage 120/240 VAC Receptacle (Option)
There is one CS-6369 120/240V, 45 amp auxilliary twist-lock
receptacle (Figure 7) provided on the output terminal panel.
This receptacle is protected by a 45 amp circuit breaker.
Figure 10. Voltage Regulator Control Knob
L5-30R Twist Lock 120 VAC Receptacle (Option)
There is one L5-30R, 120 VAC 30 amp auxilliary twist-lock
receptacle (Figure 8) provided on the output terminal panel.
This receptacle is protected by a 30 amp circuit breaker.
L6-30R Twist Lock 240 VAC Receptacle (Option)
There is one L6-30R, 240 VAC 30 amp auxilliary twist-lock
receptacle (Figure 9) provided on the output terminal panel.
This receptacle is protected by a 30 amp circuit breaker.
Figure 8. 120 VAC L5-30R Twist-Lock
Auxiliary Receptacle
Figure 9. 240 VAC L6-30R Twist-Lock
Auxiliary Receptacle
