DCA-10SPX4— OPERATION AND PARTS MANUAL — REV. #0 (02/17/09) — PAGE 21
1
Output Terminal Familiarization
The “ Output Terminal Panel ” (Figure 5) is provided with the
following:
■ ■ ■ ■ ■ 120V GFCI receptacle @ 20 amp
■ ■ ■ ■ ■ 120V receptacle @ 30 amp
■ ■ ■ ■ ■ 240V receptacle @ 30 amp
■ ■ ■ ■ ■ 120/240V CS6369 receptacle @ 45 amp
■ ■ ■ ■ ■ Ground
Output Terminal Panel
The Output Terminal Panel (Figure 5) shown below is located
on the right-hand side (left from control panel) of the generator.
Lift up on the cover to gain access to receptacles and terminal
lugs.

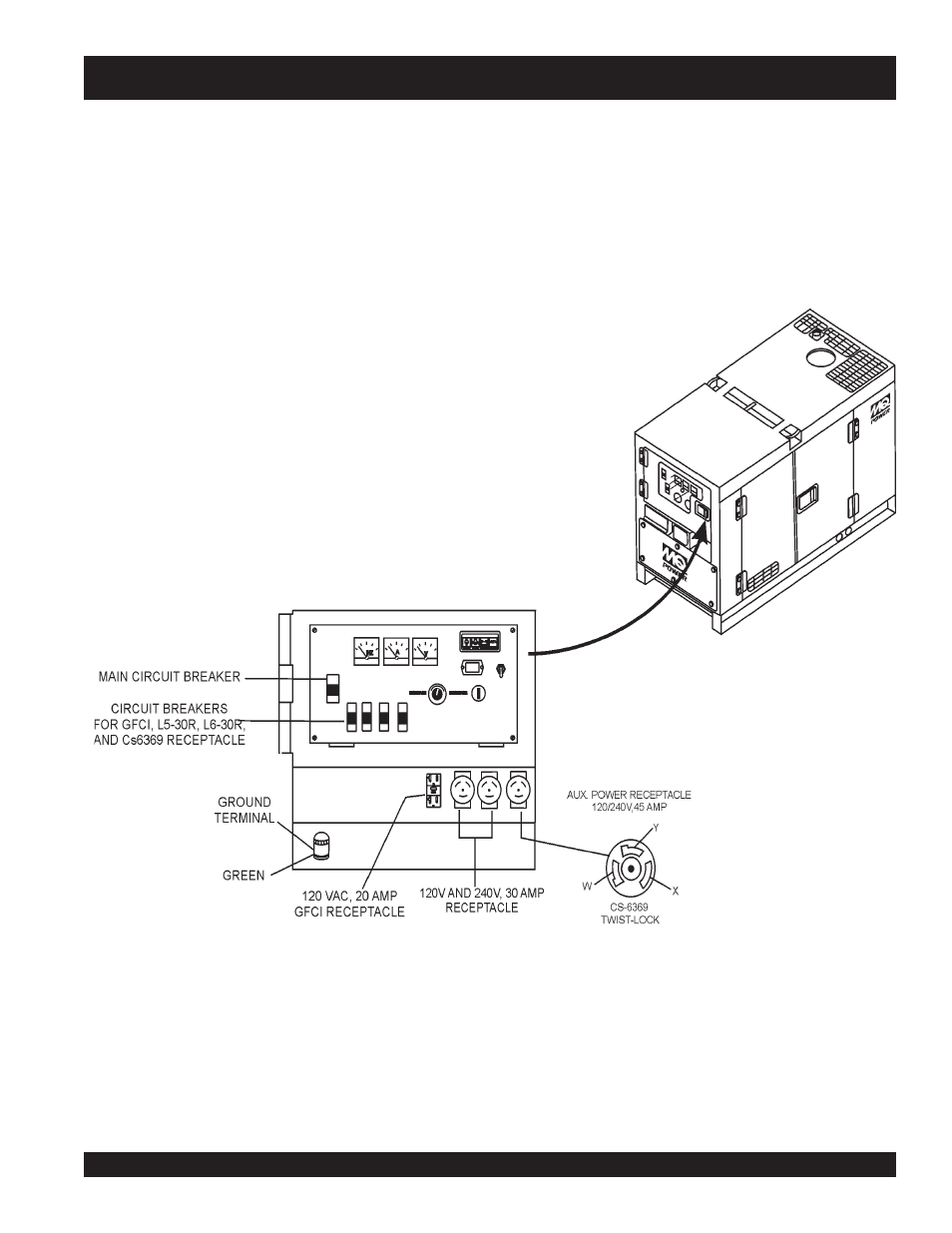

Figure 5. Output Terminal Panel
DCA-10SPX4 — OUTPUT TERMINAL PANEL FAMILIARIZATION
