5

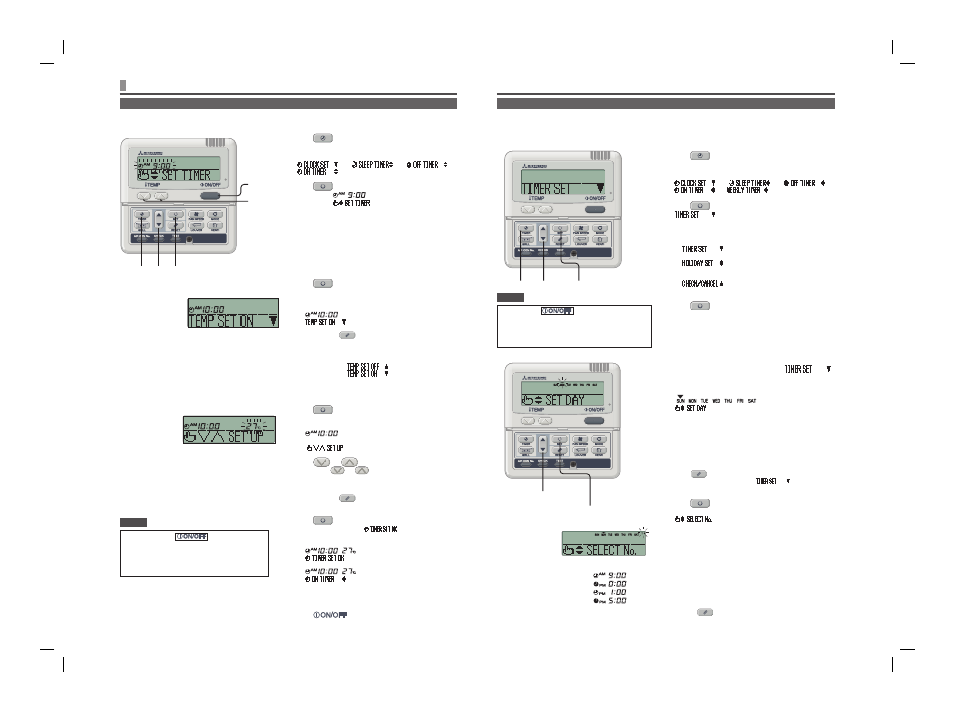

J Selection of Weekly timer mode
Up to four schedules with timer operation (ON timer/OFF timer) are available for each day of the week.
Note : Set time every month in Weekly timer mode.
1 Press TIMER button.
2
Press ▼ button for four times.
[ ] Ж [ ] Ж [ ] Ж
[ ] Ж [ ]
3 Press SET button.
“ ”is displayed in the display area.
4 Press ▲ or ▼ button.
By pressing ▲ or ▼ button, it is possible to choose the item to set.
“ ” (for setting the timer)
↕
“ ” (for setting the selected day of the week to
holiday)
↕
“ ” (for checking the timer setting and canceling
individual settings)
5 Press SET button.
The selected mode is fixed.
3•5 2•4 1
J WEEKLY TIMER SETTING
1 In the Weekly timer mode, select “ ”
and press SET button confirm.
☞ See step 1 to 5 in the above “Selection of Weekly timer mode”
“ ” ( ▼ is flashing)
“ ” is displayed in the display area.
2 Press ▲ or ▼ button.
Set the ▼ mark above the day of the week to the day to be set
for timer setting. Press ▲ and ▼ to move to the right and left
respectively, ▲ and ▼ will move flashing.
If you press the ▲ button when the “▼” marks are displayed on
from “MON” to “FRI”, and then “SUN” to “SAT” (every day) with
flash, this can be used to apply the same schedule on these days.
Press RESET button to return to “selecting Weekly
t i m e r m o d e s c r e e n ” , a n d “ ” i s d i s p l aye d .
☞ See the above step 3 .
3 Press SET button.
“ ▼” mark above the day of the week is switched to light, and is fixed.
“ ” is displayed as the left display.
4 Press ▲ or ▼ button.
Up to four schedules can be set for each day. Select the timer
schedule number you want to set. Set either ON timer or OFF
timer for each single operation. (See the left EXAMPLE ).
Press
▼ button to make the ◄ mark next to the number flash and
move downwards.
Press the
▲ button to move the mark upwards.
1 ◄
2
3
4
Press the RESET button to return to step 1 display.
3•5•7•9•11•13
2•4•6•8•10
WEEKLY TIMER MODE
• If you press button while timer mode
is operative, timer mode is canceled and the
display will return to the original display.
• If you do not press any button for several minutes
after entering the timer mode, the timer mode
ends and returns to the original display.
NOTICE
[EXAMPLE]
Number 1 :
Number 2 :
Number 3 :
Number 4 :
* Four operations can be set
with only ON timer or only OFF
timer.
HOW TO PERFORM THE TIMER OPERATION < WIRED REMOTE CONTROL >
1 Press TIMER button.
2 Press ▼ button for three times.
[ ] Ж [ ] Ж [ ] Ж
[ ]
3 Press SET button.
[EXAMPLE] “ ” flashes,
“ ” lit.
4 Press ▲ or ▼ button.
Set the preferred time to start the operation
Set “Hour”
If you press
▲ or ▼ button for a while, “Hour” display is changed
by one hour, and stops when you stop pressing.
Set “Minute”
If you press
▲ or ▼ button, the display increases or decreases
by ten minutes.
5
Press SET button.
ON timer has been set.
The left display is displayed in the display area.
“ ” (lit)
“ ” (lit)
If you press the RESET button, the remote control will
return to the previous screen.
6 Press ▲ or ▼ button.
Press ▼ button and “ ” is displayed
Press ▲ button and “ ” is displayed
Select either of the above two.
Go to step 7 if temperature is set.
Go to step 9 if set temperature is not set.
7 Press SET button.
The left display is displayed in the display area.
“ ”(lit)
“27°C” (The current set temperature is displayed flashing)
“
” (lit)
8 Press or button to set temperature.
If you press or button, the display increases or
decreases by 1°C.
Set temperature at which you want to start the operation.
If you press the RESET button, the remote control will
return to the previous screen.
9
Press SET button.
ON timer is set, and after “ ” is displayed, it returns
to step 2 .
“ ” (lit)
“ ” (lights)
È
“ ” (lit)
“ ” (lights)
Set temperature is displayed only in case it is set.
The unit starts to operate at setting time with set temperature.
The time display is turned off.
10 Press button.
The timer mode is finished.
•
•
•
•
10
8
3 2 1
• •
5 4
7 6
•
9
•
•
The unit starts to operate at the set time. It is possible to set temperature at which you want to start the operation.
One setting results in one operation only.
ON TIMER MODE
• ON timer and either Sleep timer or OFF timer are
set together, the temperature of ON timer is not
displayed.
• ON timer and either Sleep timer or OFF timer are
set together, OFF timer (or Sleep timer) shows
preference.
• If you press the button while timer
mode is operative, timer mode is canceled and
the display will return to the original display.
• If you do not press any button for several
minutes after entering the timer mode, the timer
mode ends and returns to the original display.
NOTICE
