12
ON – TIMER OPERATION < WIRELESS REMOTE CONTROL >
1 Press ON timer button.
ON timer display blinks.
2
Press or button to adjust to AM 8:00.
Displayed time will be changed by 10 minutes by pressing the buttons.
3 Press ON timer button.
• ON timer display changes from blinking to steady lighting and
the setting is completed.
(Press within 60 seconds)
TIMER/CHECK display lamp of the air conditioner is lit. (The receiving part of
indoor unit)
• At AM 8:00, TIMER/CHECK display lamp turns off and the air conditioner
will start operating.
1 · 3
2
Operation is started at the setting time.
J In case the ON timer is set while the air
conditioner is in operation, it will be stopped
and ready for restart at the setting time.
[EXAMPLE] If you would like to start the operation at AM 8:00
J Cancellation
• Whenever the CANCEL button is pressed, both ON and
OFF timer display will be turned off and the PROGRAM
timer mode will be cancelled. (Operation condition is kept as
before the button is pressed.)
• Whenever the ON/OFF button is pressed, both ON and OFF
timer display will be turned off and the PROGRAM timer
mode will be cancelled. The air conditioner stops operating.
J Changing the set time
Press OFF TIMER button or ON timer button to set again.
NOTICE
The same time cannot be set for OFF timer and ON timer.
PROGRAM TIMER OPERATION
By setting both ON timer and OFF timer, the settings turn into PROGRAM timer mode. Operation and stopping can be performed at the
same time of each day by setting program timer once.
1 Set ON timer.
Press ON timer button and set the time with or button.
Press ON timer button again.
2 Set OFF timer.
Press OFF timer button and set the time with or button.
Press OFF timer button again.
Both ON TIMER and OFF TIMER are displayed. The direction of arrow mark
changes depending on the status of operation.
(stop) (operating)
2 1
OFF – TIMER OPERATION
2 · 4
3
1
Operation is stopped at the setting time. [EXAMPLE] If you would like to stop the operation at PM 9:00
J Cancellation
• Press CANCEL button to turn off the TIMER display and timer is canceled.
• After TIMER setting, if ON/OFF button is pressed before the setting time, TIMER display turns off and the TIMER is canceled.
J Time change
Press OFF TIMER button to set again.
J Cancellation
• Press CANCEL button to turn off the TIMER display and timer is canceled.
• After TIMER setting, if ON/OFF button is pressed before the setting time,
TIMER display turns off and the TIMER is canceled.
J Time change
Press ON TIMER button to set again.
HOW TO OPERATE
• Turn on the power supply of both indoor/outdoor units for six hours before starting the unit to protect the units. (The
crankcase is conducted and the compressor is heated) Do not turn off the power supply. (The crankcase heater is conducted
while the compressor is stopped, preventing failure of the compressor due to accumulation of liquid refrigerant by keeping the
compressor warm.)
• The operation of remote control must be performed slowly and steadily.

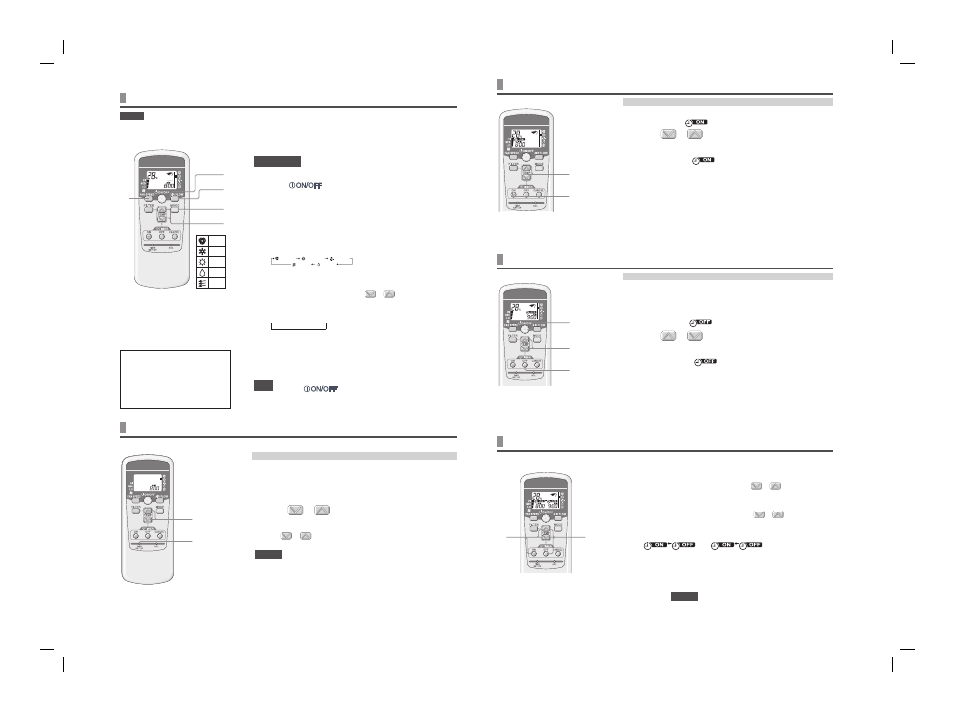

HOW TO USE < WIRELESS REMOTE CONTROL >
ATTENTION
4
1
5
3
2
AUTO
COOL
HEAT
DRY
FAN
J Guideline of room temperature setting
COOL ...............26 to 28°C
DRY ..................21 to 24°C
HEAT ................22 to 24°C
FAN ................... TEMP setting is
unnecessary
• Operation mode can be changed even
when the unit stops.
• If you operate under the same condition
(operation mode, set temperature,
airflow, louver) just follow step
1 , no
other operations are necessary. The
conditions which were set previously are
indicated on the remote control
CURRENT TIME SETTING PROCEDURE
1 Press TIME SET UP switch.
Press it with the tip of ballpoint etc. The time display blinks and can be set
to the current time.
2
Press or button to adjust to AM 8:00.
Morning : AM After noon : PM
The displayed time changes by 1 minutes when pressing the button.
• If or button is pressed during the blinking, fast-forward or fast-
backward can be done.
NOTICE
• In case the buttons are not pressed for 60 seconds, the displayed time is set as
current time without step 3 .
3 Press TIME SET UP switch.
The display changes from blinking to steady lighting and the setting is
completed.
1 · 3
2
The timer is set on the current time. Adjust the current time correctly at first of all.
[EXAMPLE] AM (morning) 8:00 setting
OPERATION
1
Press button.
The operation display light (Green) turns on, and the operation starts.
The setting status is displayed on the liquid crystal area on the remote
control.
2 Press MODE button.
Current operation mode is indicated with the „ marks besides the
operation mode icons.
The mode will change in the following order by pressing the button.
(AUTO) (COOL) (HEAT)
(FAN) (DRY)
3
Press TEMP button.
Set the room temperature by pressing or button.
4 Press FAN SPEED button.
→ HI → MED → LO— FAN SPEED can be changed in order.
5 Press AIR FLOW button.
Effective AIR FLOW direction ☞ see page 13
AUTO mode operation ............. Intermediate
Cooling, humidifying ................ Horizontal
Heating .................................... Downwards
Stop Press button
Operation mode
1 Press ON/OFF button when the air conditioner stops.
The air conditioner starts to operate.
OFF timer can be set only in case the air conditioner is in operation.
2 Press OFF timer button.
OFF timer display blinks.
3 Press or button to adjust to PM 9:00.
Displayed time will be changed by 10 minutes by pressing the buttons.
4 Press OFF timer button.
• OFF timer display changes from blinking to steady lighting and
the setting is completed. (Press within 60 seconds)
TIMER/CHECK display lamp of the air conditioner is lit. (The receiving part
of indoor unit)
• At PM 9:00, TIMER/CHECK display lamp turns off and the air conditioner
will stops operating.
