54D0700 33
Flat
Area
FINAL INSTALLATION
LOG PLACEMENT
1. Place rear log (#1) on grate assembly. Log should rest firmly
on the two log mounting pins on the bars. See Figure 41.
2. Place top right log (#2) on the rear log. Rest the right back
side of the log in the flat area of the rear log. Place the narrow
front end of the log next to the center vertical grate bar. See
Figure 41.
3. Place the top left log (#3) on the rear log. Nest the forked
end of the top left log into the fork or the rear log. Rest the
narrow end of the top left log behind the center vertical grate
bar. See Figure 41.
LAVA ROCK AND EMBER PLACEMENT
Sprinkle lava rock on the floor of the inner combustion chamber.
Evenly distribute the rock. Do not pile the lava rock up in front of
grate. Do not place lava rock on the burner. If desired, purchase
optional embers to decorate the floor of the fireplace.

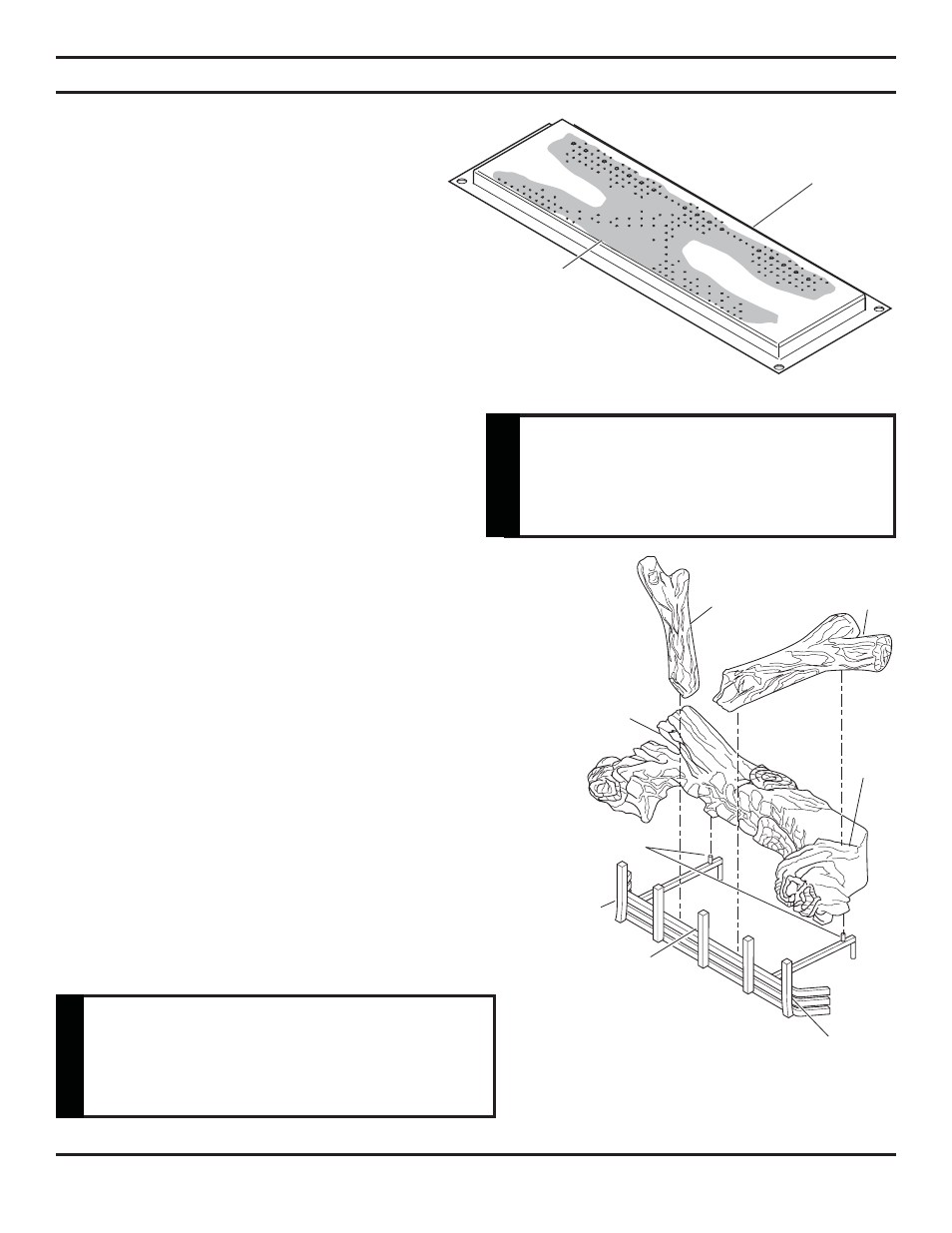

Figure 41 - Log Placement
(BDV300, 400 shown)
(#3) Top
Left Log
(#2) Top
Right Log
(#1) Rear
Log
Left Vertical
Grate Bar
Right
Vertical
Grate Bar
Center Vertical
Grate Bar
Log Mounting Pins
ROCK WOOL PLACEMENT
1. Place rock wool on burner to provide glowing
embers. For best results, pull the rock wool apart
into pieces the size of a dime or smaller.
2. Distribute one layer of rock wool to cover the burner.
See Figure 40.
3. Place the logs on the burner. See Log Placement
below. Light unit and after 15 minutes, check burner
flame and glow. See Burner Flame, page 38.
If the flame is blue and only in the center, turn off unit
and let cool. After unit cools, remove logs. If the back
holes are clear, add more rock wool to the center of the
burner. Replace logs and check flame again. Save left
over rock wool to refresh when cleaning later. Too much
rock wool can disturb the flame and cause sooting on
the glass or logs.
Do not sprinkle the lava rock or ember
chunks on top of the burner. This may
cause potential sooting, glass breakage
and a fi re hazard.
W
ARNING
Figure 40 - Placement of Rock Wool on Burner
Cover with
Rock Wool
Do not use the entire bag of rock wool
to cover the burner. This could cause
the fl ame to burn poorly and may lead
to sooting.
W
ARNING
Burner
