37
Chapter 5 - Configuring the Slave MultiVOIPs
Multi-Tech Systems, Inc. MultiVOIP User Guide
Chapter 5 - Configuring the Slave MultiVOIPs
If the Proprietary Phonebook option on the Phone Directory Database dialog box was
enabled, then you will need to configure all remote H.323 endpoints as “Slave” units. For
example, the MVP120 at the company’s subsidiary office in London would need to be
configured as a “Slave.”
CAUTION: If you are installing a MVP120 behind a Firewall, the Firewall must support H.323.
Refer to your Firewall user documentation to enable H.323 support.
1. Disconnect the PC from the Command port of the Master MVP120 and connect it to
the Command port on the Slave MVP120.

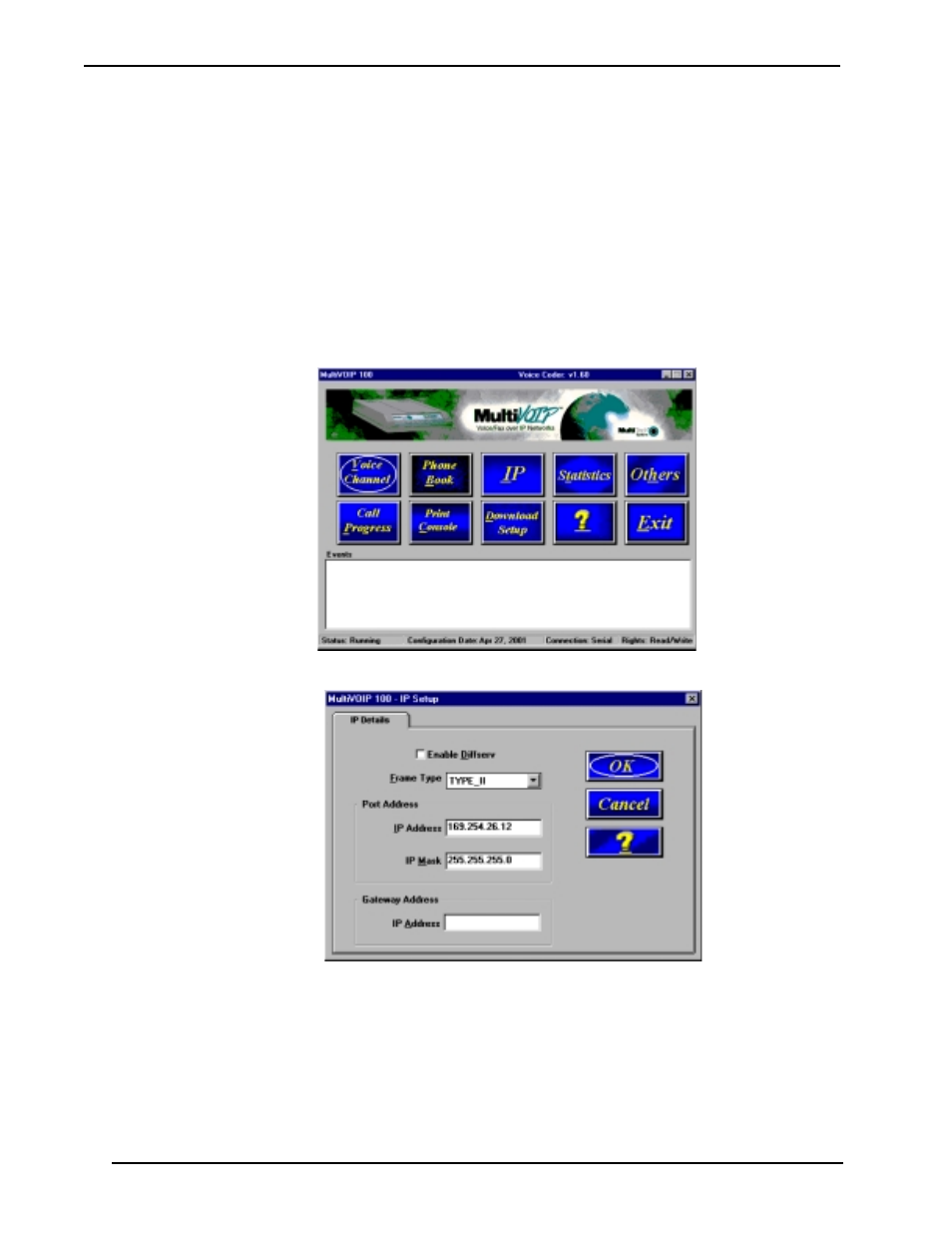

2. From your desktop, click Programs I MultiVOIP 100 I MultiVOIP Configuration. The
Main menu displays.
3. Click IP to display the IP Setup dialog box.
Select the Enable Diffserv box if you have routers that support Diffserv (sometimes
called IP Precedence). This feature gives priority to voice packets so they are not
delayed because of large data files being downloaded.
The default Frame Type is TYPE_II. If this does not match your IP network, select the
Frame Type from the Frame Type list. The Frame Type choices are TYPE_II and
SNAP.
