Multi-Tech Systems, Inc. MultiVOIP User Guide
Chapter 4 - Configuring the Master MultiVOIP
33
33. Add all other phone numbers (slave units and standalone units) to the Phone Directory
database. To add a channel of a slave MultiVOIP, click Add and the Add/Edit Phone Entry
dialog box displays.
34. Enter the phone number for the MultiVOIP in the Station Information group Phone Number
box.
35. Click inside the Description box and enter a description for the remote MultiVOIP phone
number for the Voice/Fax Channel.
36. In the Station Identification group, select HUNT GROUP #2 from the Hunt Group list, enter
the London Office’s IP Address (202.056.039.100), and accept the H.323 industry standard
Port value (1720) used to communicate with other H.323 endpoints.

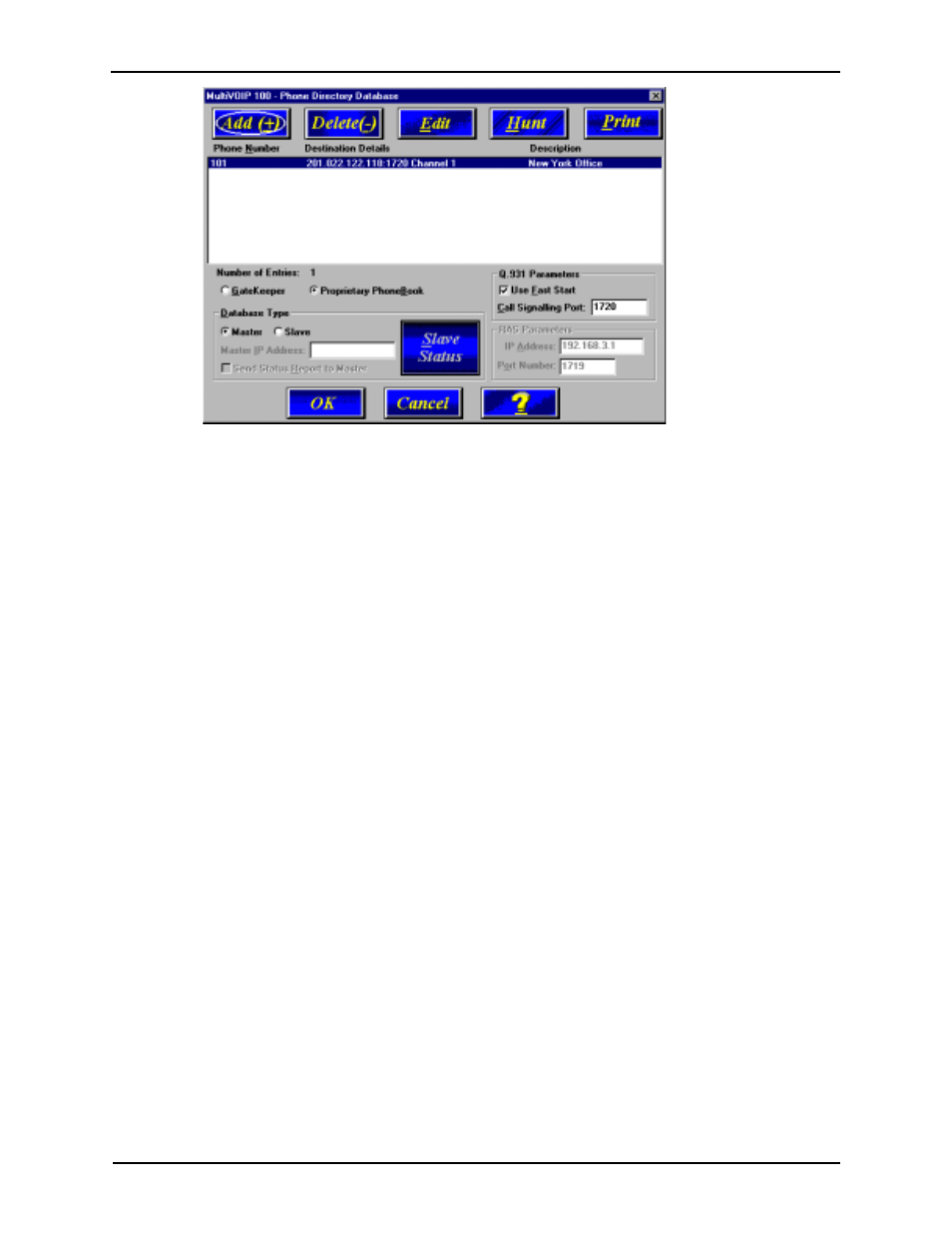

37. Click OK and you are returned to the Phone Directory Database dialog box which now
includes the second number and related information in the Phone Number list.
