32
RDV4136 Series Direct Vent Gas Fireplace
10010618

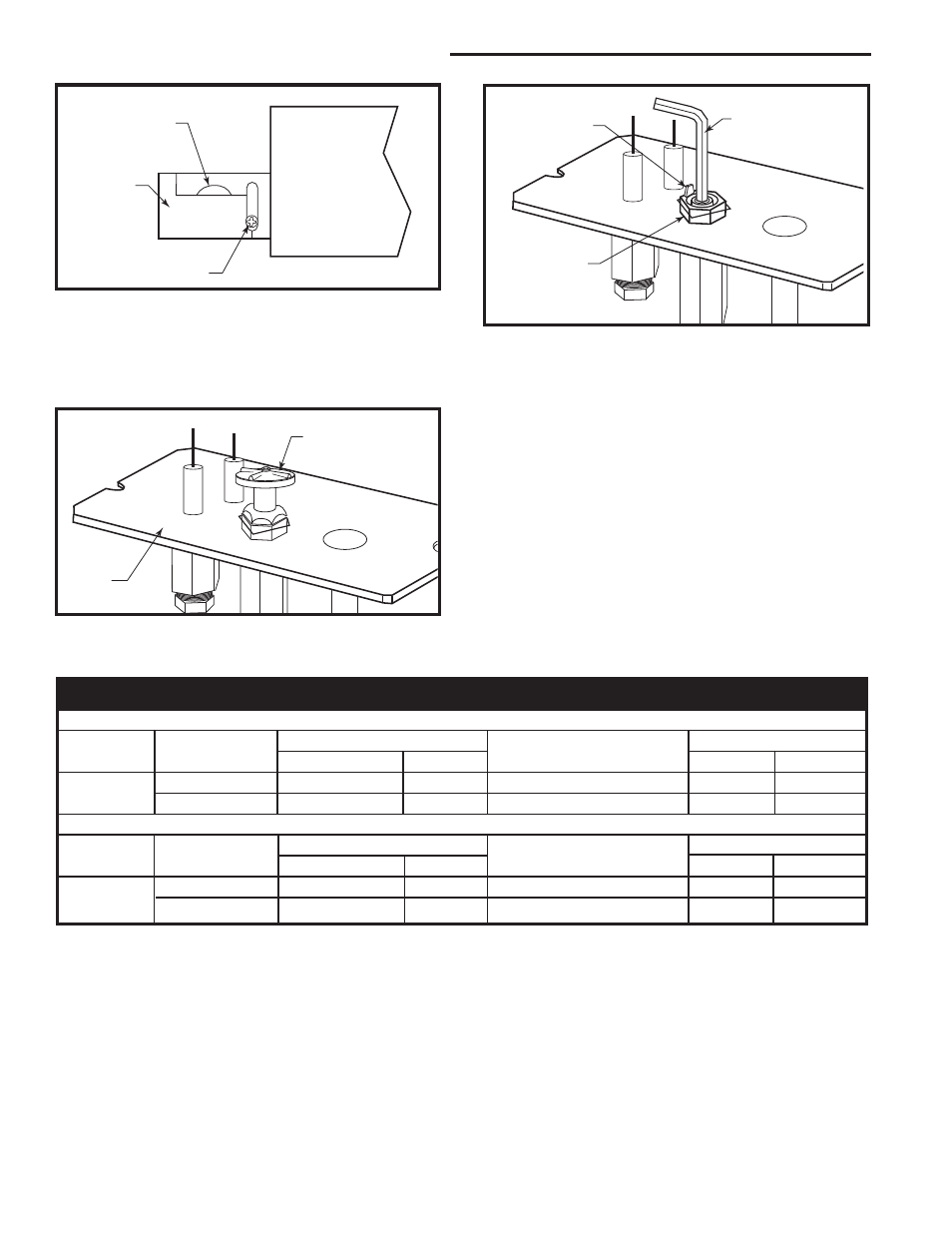

Pilot Orifice Conversion
1. Remove pilot hood by lifting up. (Fig. 54)
2. Remove pilot orifice with Allen wrench. (Fig. 55)
3. Install conversion pilot orifice.
CO133
pilot hood
3/07
Pilot Hood
Pilot
Bracket
CO133
Fig. 54 Remove pilot hood.
4. Reinstall pilot hood and be sure to align with index
tab.
5. Turn the gas supply valve and gas valve on and test
for leaks. Use a 50/50 solution of liquid soap and
water to test for leaks at gas fittings and joints. Apply
water/soap solution with brush only - do not over ap-
ply. NEVER test with an open flame.
6. Follow procedure on rating plate to light the pilot.
Check for leaks.
7. Turn main burner on and check for leaks.
8. Reinstall bracket rear log, front grate and logs. Refer
to Page 22 for proper log placement.
Fuel Conversion complete.
CO148
air shutter conversion
3/08 djt
1/2” Hole,
1/4 Open
Air Shutter
Air Shutter Screw
CO148
Fig. 53 Air shutter setting.
CO134
AF pilot orifice
3/07
Allen Wrench
Index Tab
Snap Ring
CO134
Fig. 55 Remove pilot orifice.
Table 1 Injector Orifice Size Matrix
Conversion to LP
Burner Orifice Input (BTU/hr)
Kit # Model Description Part # Minimum Rate Screw Minimum Maximum
10010737 RDV4136RN #53 (.0595”) 54833 n/a 19,500 24,000
RDV4136IN #53 (.0595”) 54833 #54 20013177 19,500 24,000
Conversion to Natural Gas
Burner Orifice Input (BTU/hr)
Kit # Model Description Part # Minimum Rate Screw Minimum Maximum
10010736 RDV4136RP #40 (.098”) 55616 n/a 15,300 24,000
RDV4136IP #40 (.098”) 55616 #33 20014169 15,300 24,000
