RDV4136 Series Direct Vent Gas Fireplace
10010618
�����
������������������
����
Ember Material
LG518

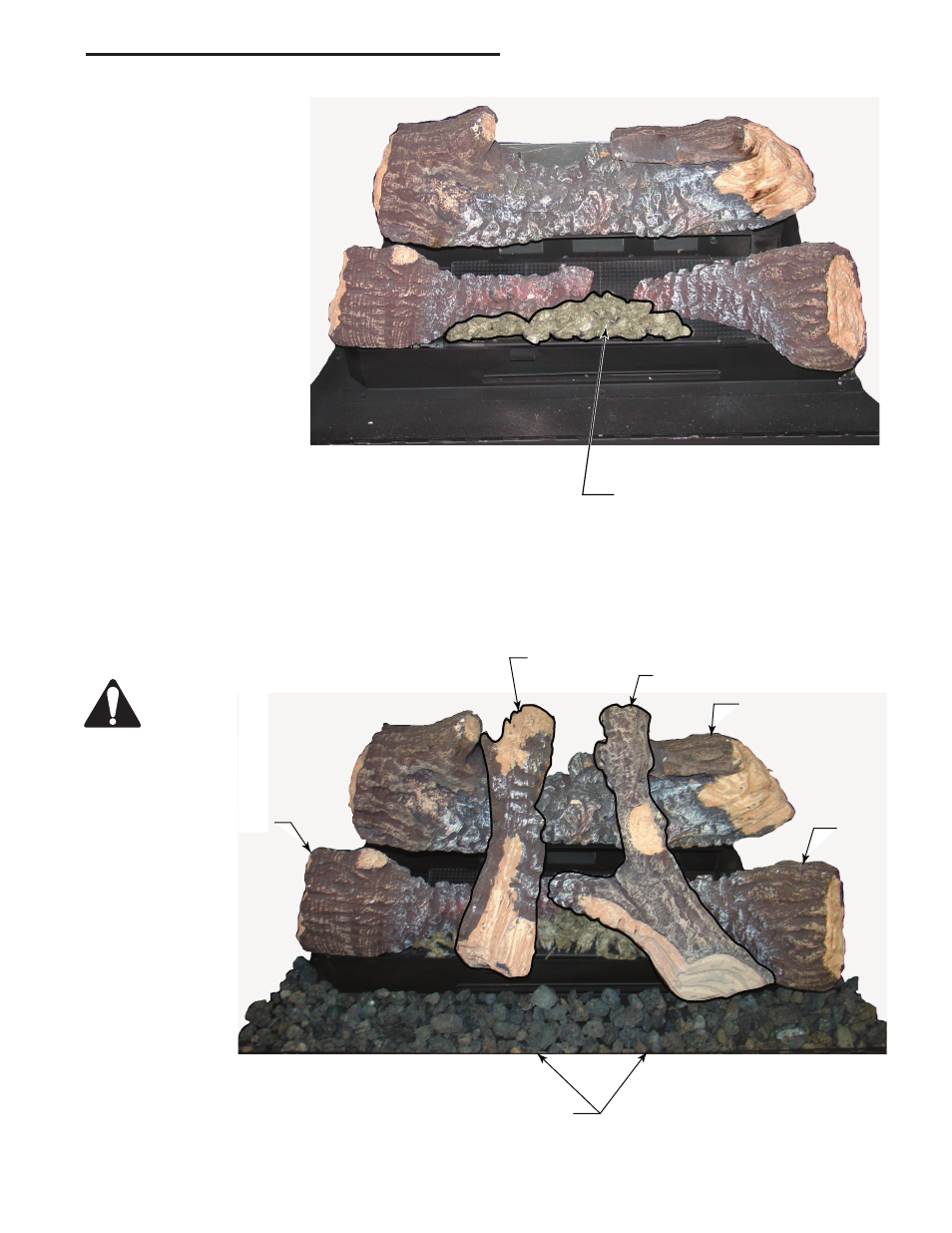

Figure 41
5. Place ember material on
top of front burner. (Fig.
41) Separate the ember
material into small pieces
approximately 1/2” (13 mm)
diameter and keep 1/2” (13
mm) space between the
ember pieces.
�����
�����������������
����
Left Cross Log
Right Cross Log
LG519
Lava Rock
Figure 42
Left Front Log
Rear Log
Right
Front
Log
6. Rest the bottom edge of the left cross log on the
bracket. Rest the top of the long on the top of the
back log.
7. Place the right cross log. Place the bottom rectangu-
lar slot of this log on the bracket. Rest the top portion
of the cross log on top of the rear log. (Fig. 42)
8. Place large lava rock onto the two sides and front of
the burner tray. (Fig. 42)
CAUTION: Do not place any lava rock mate-
rial on the burner housing assembly.
