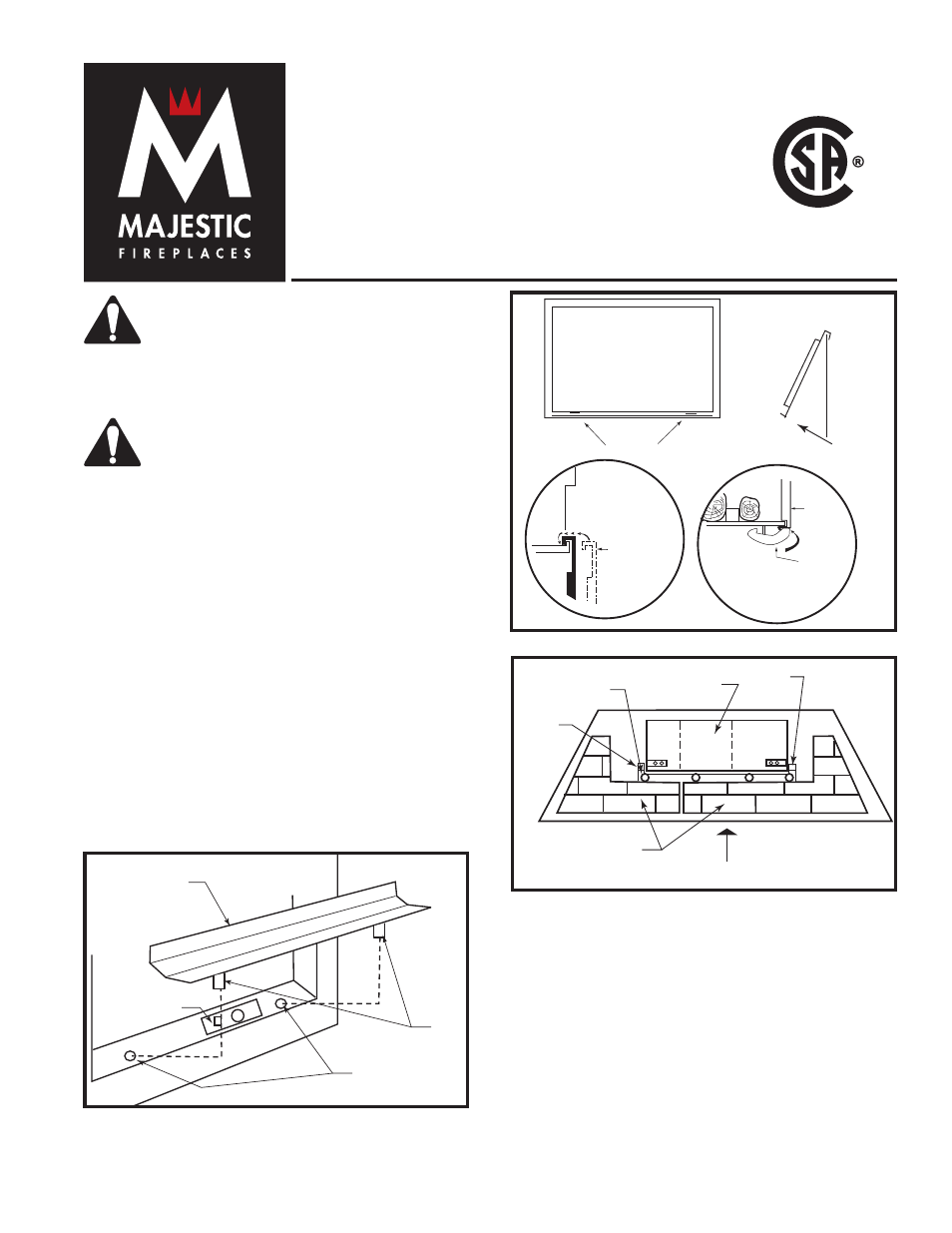

Majestic Appliances TQS36 - Manual

Tranquility Stones Kit
Installation Instructions
Model: TQS36
for use on Gas Fireplace Models:
DVBR36RN* (GFCN3J0)
* The Tranquility Stones may also be used if the unit is converted to propane
CAUTION: This kit is designed for use on
the above gas fireplace models ONLY.
CAUTION: This kit must be installed by a
qualified service technician.
Read the instructions carefully before beginning
the installation.
CAUTION: Allow the unit to cool complete-
ly if it has been in operation.
Kit contents: Stone tray, stones (30), ceramic overlay,
hardware package, installation instructions.
Check the contents of the carton with contents list. If
any parts are missing or damaged, contact your dealer.
Turn OFF gas supply and electric supply to the unit
before beginning.
Installation Instructions
1. Remove valve cover. (Fig. 1)
2. Release the two (2) clamps at the bottom of the
window frame by pulling back on the clamp handles.
(Fig. 2)
3. Lift off the glass frame. (Fig. 2)
4. Remove the logs and any ember material from the
fireplace. Discard logs and ember material.
5. Remove the two (2) screws securing the grate. Re-
move the grate and reinstall the two (2) screws. (Fig.
3) Discard grate.
C US
H100
hearth Panels
3/15/99 djt
Grate
Screw
Burner
Screw
Hearth Panels
Front of Fireplace
H100
Fig. 1 Remove grate.
G584-500
Remove valve cover
2/99 djt
Valve Cover
Pins
Locating Holes
Valve
G584-500
Fig. 1 Remove valve cover.
G584-501
Remove glass frame
2/99 djt
Clamps
Glass
Frame
Fireplace
Front
Glass
Panel
Pull
Clamp
Hook
Glass
Panel
G584-501
Fig. 2 Remove glass frame.
6. If there is any lava rock on the hearth panels,
remove and set aside. Remove and discard hearth
panels.
7. Install the stone tray in the fireplace. The two (2)
small holes on the right side back of the assembly fit
over the two (2) studs on the rear log support. (Figs.
4 & 5)
8. Secure the stone tray in position with the two (2)
nuts and one (1) screw provided. (Fig. 5)
9. Replace any lava rock removed from the fireplace.
20012963 3/08 Rev. 2
