30

RDV4136 Series Direct Vent Gas Fireplace

10010618

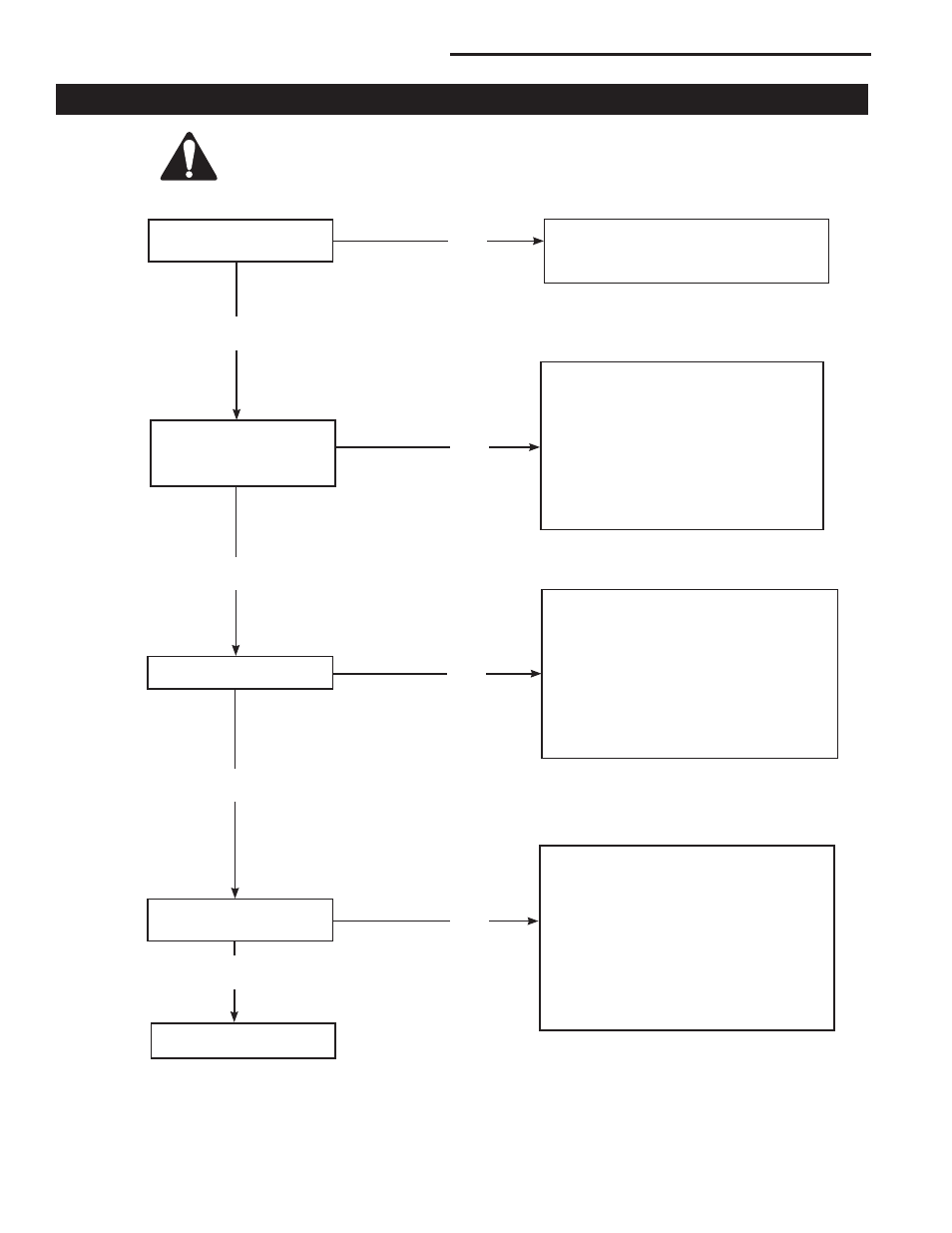

Troubleshooting - Honeywell VS8421

Remove Window Frame Assembly Before Service Work

START

CHECK

Gas Supply On

Pilot Lights With Piezo
Ignitor

Lockout Has Engaged. Wait 60
Seconds And Try Again.

For Spark At Electrode While
Depressing Piezo

1/8" Gap To Pilot Hood Needed.

All Wiring Connections

Replace Piezo Ignitor

Supply Line Hooked Up

Shutoff Valve Open

Pilot Stays Lit

For Air In The Lines

Thermopile Needs A Min. 325m V.
Adjust Pilot Flame Height.

All Wiring Connections

Replace Thermopile

Thermocouple Needs A Min. Of
14m V

Pilot Lights Main Burner

Valve Is Turned On

Wall Switch Is Not Turned On.
Watch For Grounded Wires!

Thermopile Needs A Min. 325m V.

Plugged Burner Orifice

Defective Valve. Turn to Pilot, Me-

ter should rear greater than 100m
V. If not, replace.

SYSTEM OK

YES

NO

NO

NO

NO

YES

YES

YES
