Installing the appliance

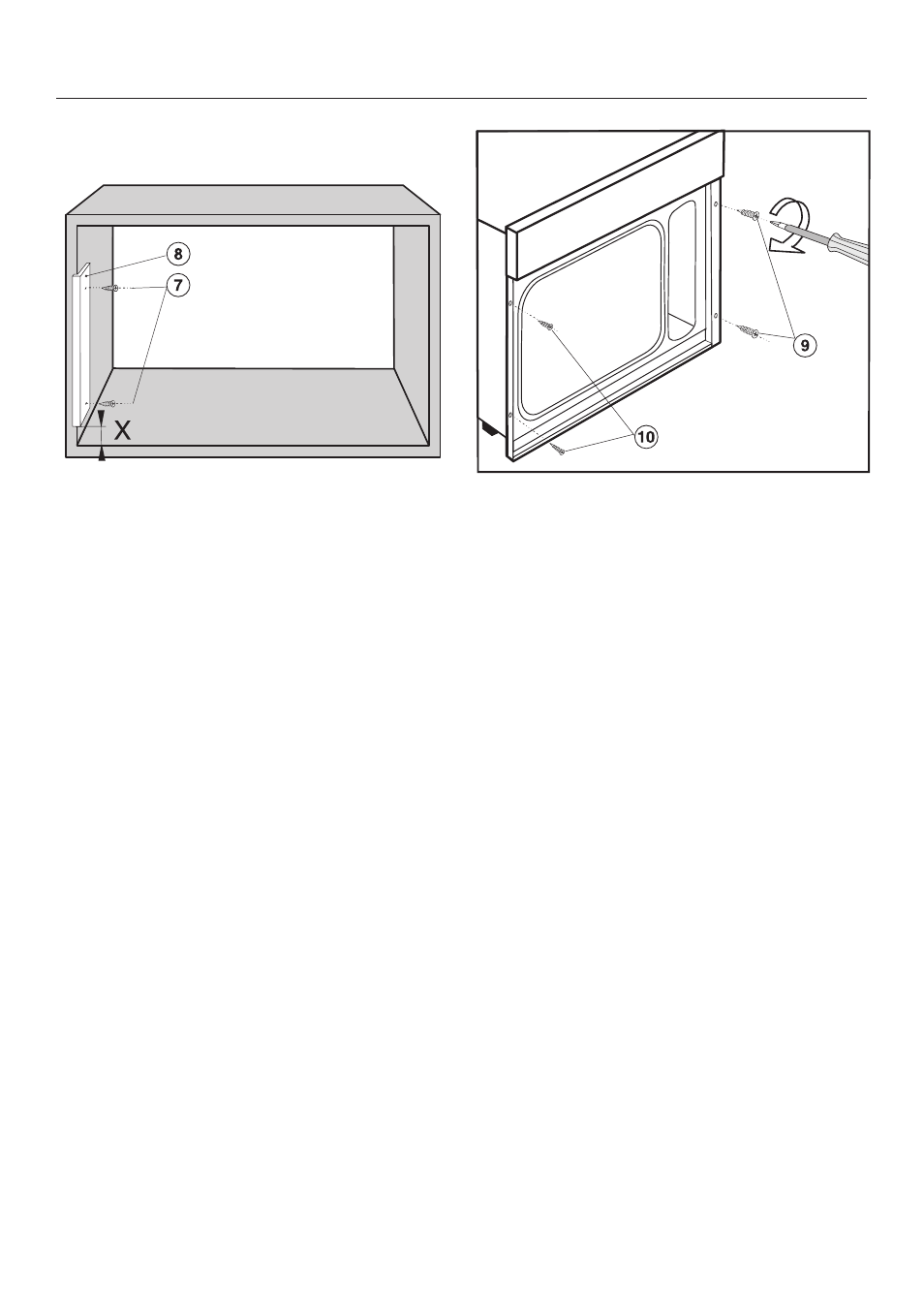

^ Install the supplied wooden strip h
on the left side in the niche with the
two supplied screws g 3 x 20 mm
(see illustration).
The measure x is at a niche height of:
13
3
/
4
" (350 mm) =
1
3
/
16
" ±
3
/
16
" (30 ± 5 mm)
14
1
/
16
" (360 mm) =
1
9
/
16
" ±
3
/
16
" (40 ± 5 mm).
^ Push the appliance into the niche.
^ Mark the holes.
^ Pull the oven out.
^ Drill two left fixing holes with a 1
/
16
"
(2 mm) diameter bit.
^ Push the oven in and align.
^ Open the oven door and using the
supplied screws i 3.5 x 25 mm right
and j 3.0 x 20 mm left, secure it to
the cabinet through the holes on
either side of the vertical oven trim.
