MGate EIP3000 Series User’s Manual Configuring the EtherNet/IP Gateway
Starting MGate Manager
MGate Manager is a Windows-based utility that is used to configure the MGate EIP3000.
Before running MGate Manager, make sure that your PC and the MGate EIP3000 are connected to
the same network. Alternatively, the MGate EIP3000 may be connected directly to the PC for
configuration purposes. Please refer to Chapter 2 for more details.

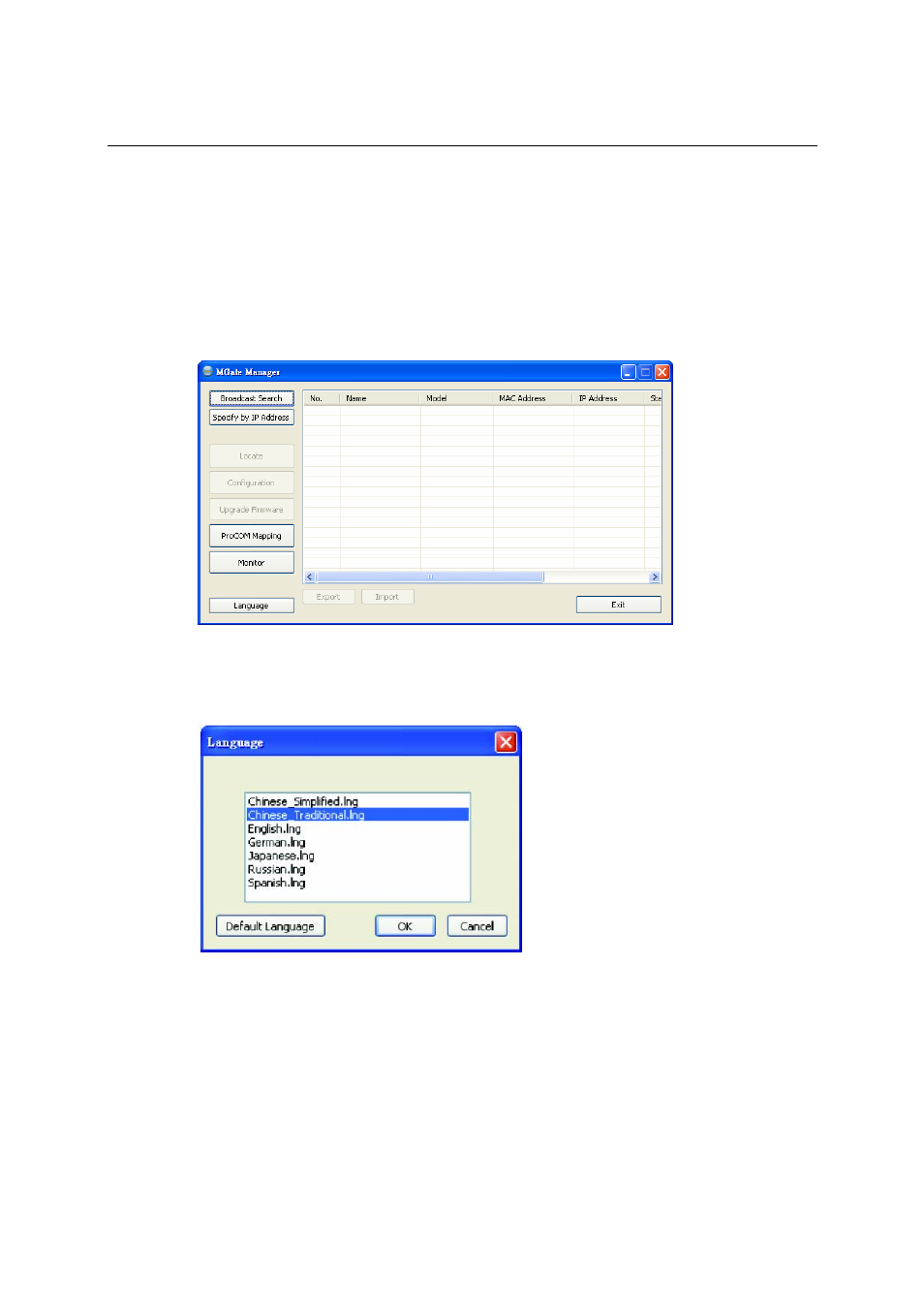

You may open MGate Manager from the Windows Start menu by clicking Start Æ Programs Æ
MGate Manager Æ MGate Manager. The MGate Manager window should appear as shown
below.
Change Language Setting
If you wish to run MGate Manager in a different language, you may click Language to change the
language setting. A dialog box showing the available languages should appear as shown below.
When you click OK, MGate Manager will immediately reflect your chosen language.
5-6
