MGate EIP3000 Series User’s Manual Hardware: EIP3270, EIP3270I

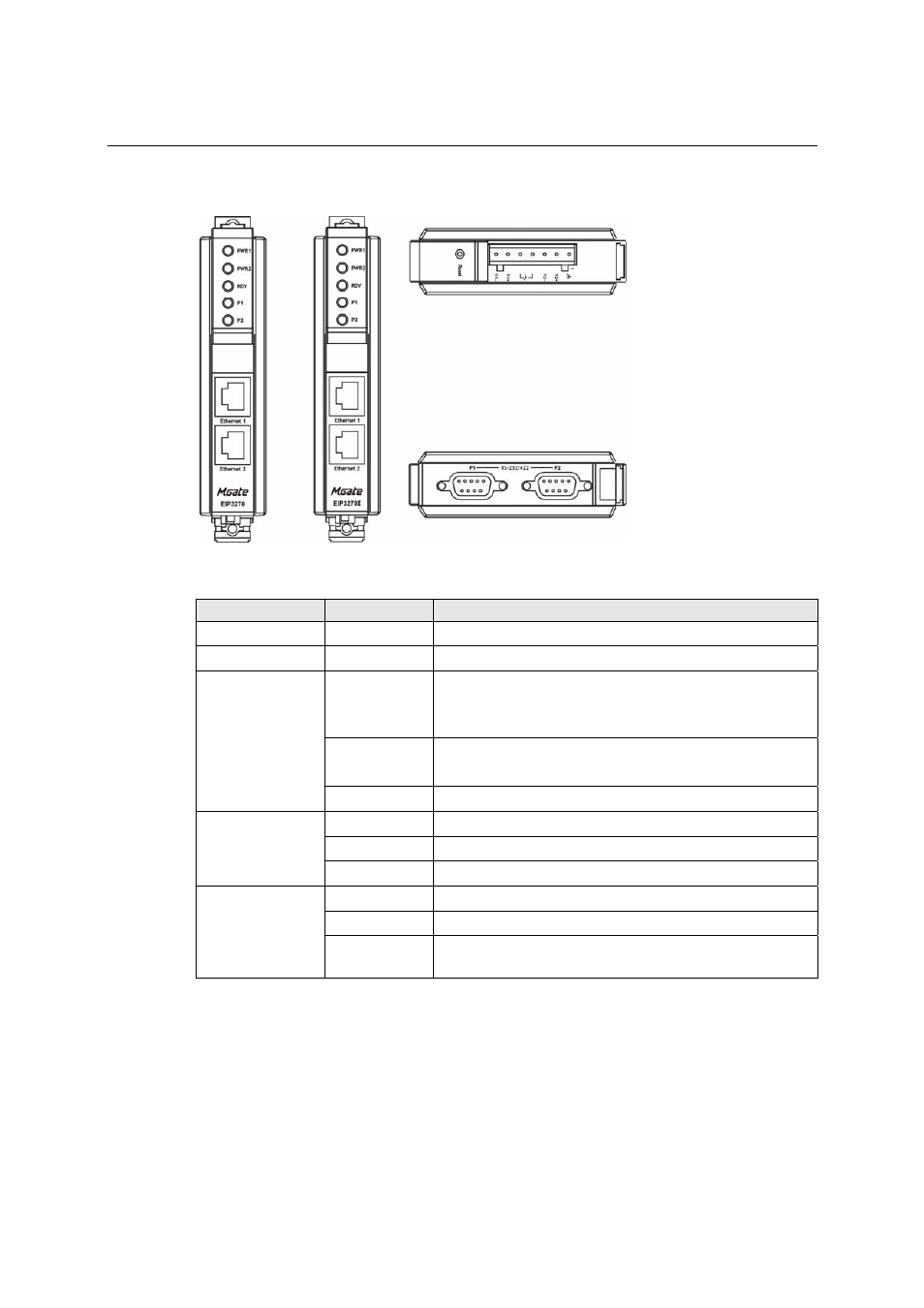

Panel Layout
LED Indicators
Name Color Function
PWR1 Red Power is being supplied to the power input.
PWR2 Red Power is being supplied to the power input.
Red
Steady on: Power is on and unit is booting up.
Blinking: Indicates an IP conflict, or DHCP or BOOTP
server is not responding properly.
Green
Steady on: Power is on and unit is functioning normally.
Blinking: Unit is responding to software Locate function.
RDY
Off Power is off, or power error condition exists.
Orange 10 Mbps Ethernet connection.
Green 100 Mbps Ethernet connection. Ethernet
Off Ethernet cable is disconnected, or has a short.
Orange Serial port is receiving data.
Green Serial port is transmitting data.
P1, P2
Off
No data is being transmitted or received through the serial
port.
4-2
