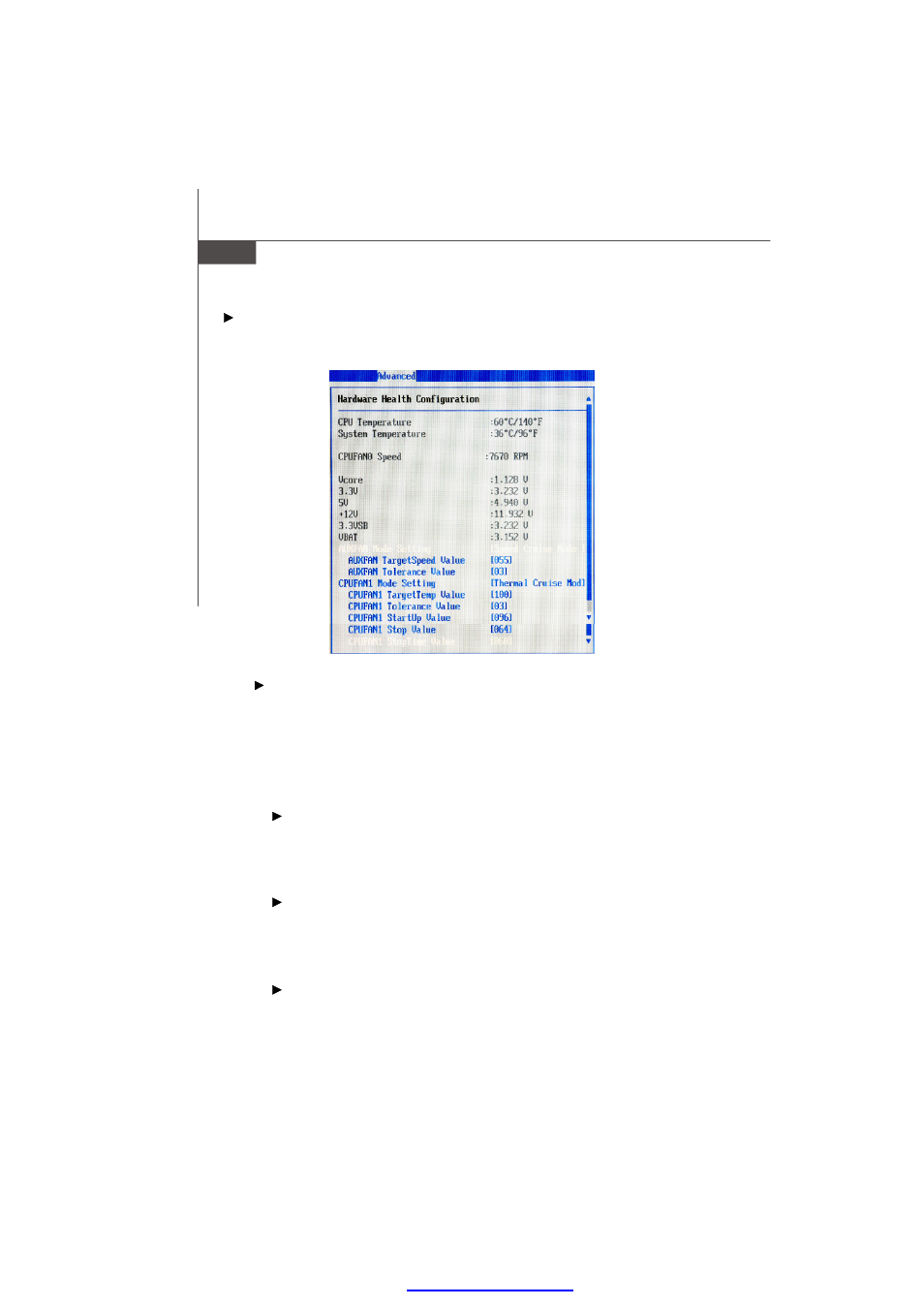

Hardware Health Configuration
These items display the current status of the monitored hardware devices/compo-
nents such as voltages and temperatures.
CPUFAN1 Mode Setting, SYSFAN1 Mode Setting
This item enables or disables the Smart Fan feature. Smart Fan is an excellent
feature which will adjust the CPU/system fan speed automatically depending on
the current CPU temperature to prevent your system from overheating.
Available options are: [Manual Mode], [Thermal Cruise Mode], [Speed Cruise
Mode].
[Manual M ode]
CPUFAN1 PWM Control, SYSFAN1 PWM Control
This setting allows users to control the fan speed by changing the duty
cycle of the fan PW M (Pulse-Width Modulation) output.
[Speed Cruise M ode]
CPUFAN1 TargetSpeed Value, SYSFAN1 TargetSpeed Value,
Select a fan speed setting here, and if the fan speed of the CPU/system fans
climbs up to the selected fan speed setting, the system will automatically
increase the speed of the CPU/system fan to cool down the overheated
CPU.
CPUFAN1 Tolerance Value, SYSFAN1 Tolerance Value
You can select a fan tolerance value here for the specific range for the
“CPUFAN1/SYSFAN1/SYSFAN2 TargetSpeed Value” items. If the current fan
