2-8
M S-9818 M ainboard
Audio Ports
These audio connectors are used for audio devices. You can differentiate the color
of the audio jacks for different audio sound effects.
Line-In (Blue) - Line In, is used for external CD player, tapeplayer or other
audio devices.
Line-Out (Green) - Line Out, is a connector for speakers or headphones.
Mic (Pink) - Mic, is a connector for microphones.

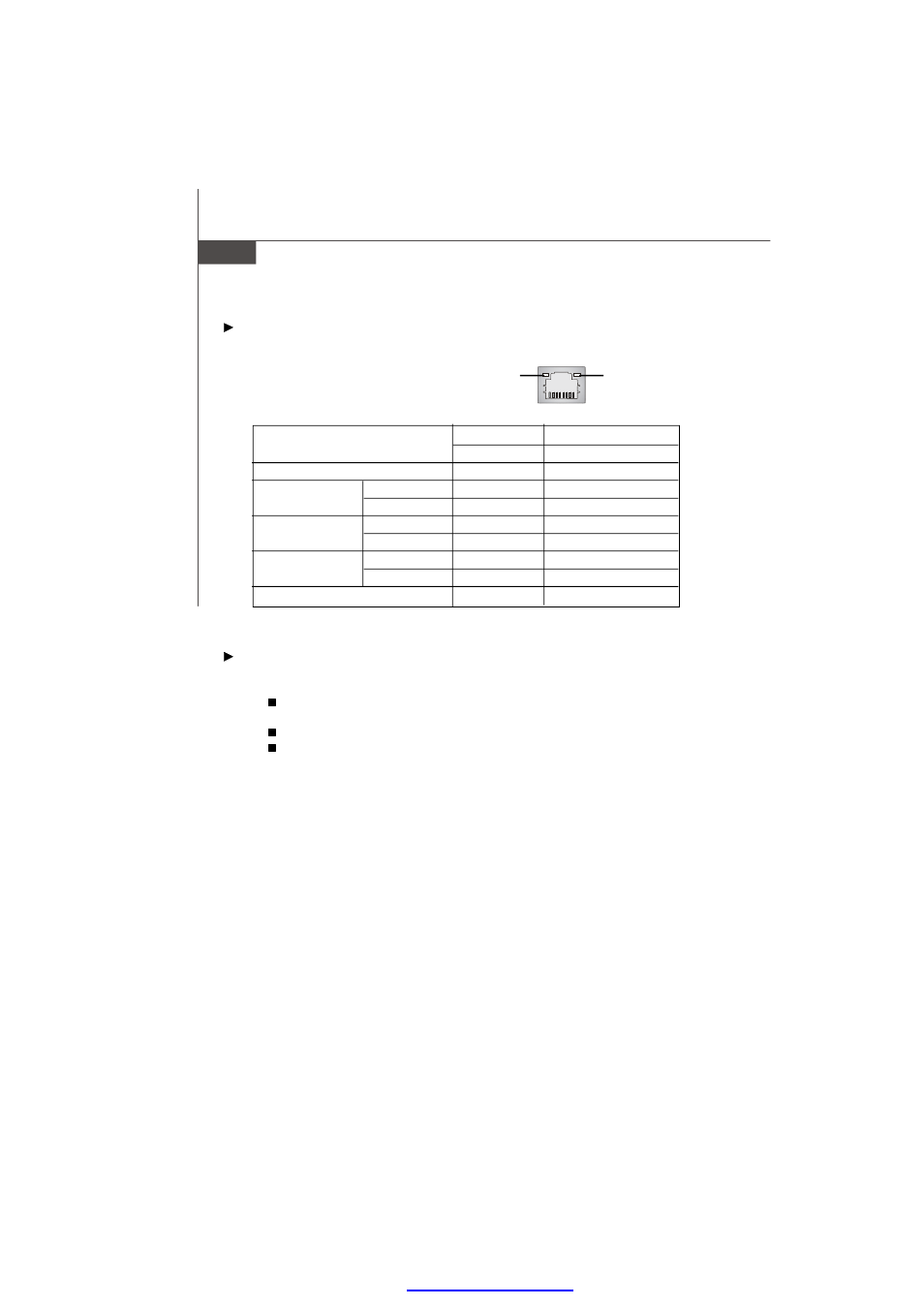

LAN
The standard RJ-45 LAN jack is for connection to the Local Area Network (LAN). You
can connect a network cable to it.
Left LED Right LED
Active LED 100M/1000M Speed LED
LED Color Yellow Green/Orange
10M Cable Plug-in No Transmission OFF OFF
Transition Yellow(Blinking) OFF
100M Cable Plug-in No Transmission OFF Green(Lighting)
Transition Yellow(Blinking) Green(Lighting)
1000M Cable Plug-in No Transmission OFF Orange(Lighting)
Transition Yellow(Blinking) Orange(Lighting)
In S3/S4/S5 Standby State Green (Lighting) OFF
Speed Indicator Activity Indicator
