Page 30: Front panel i/o connectivity design guide, Chapter 2 2-18
Chapter 2
2-18

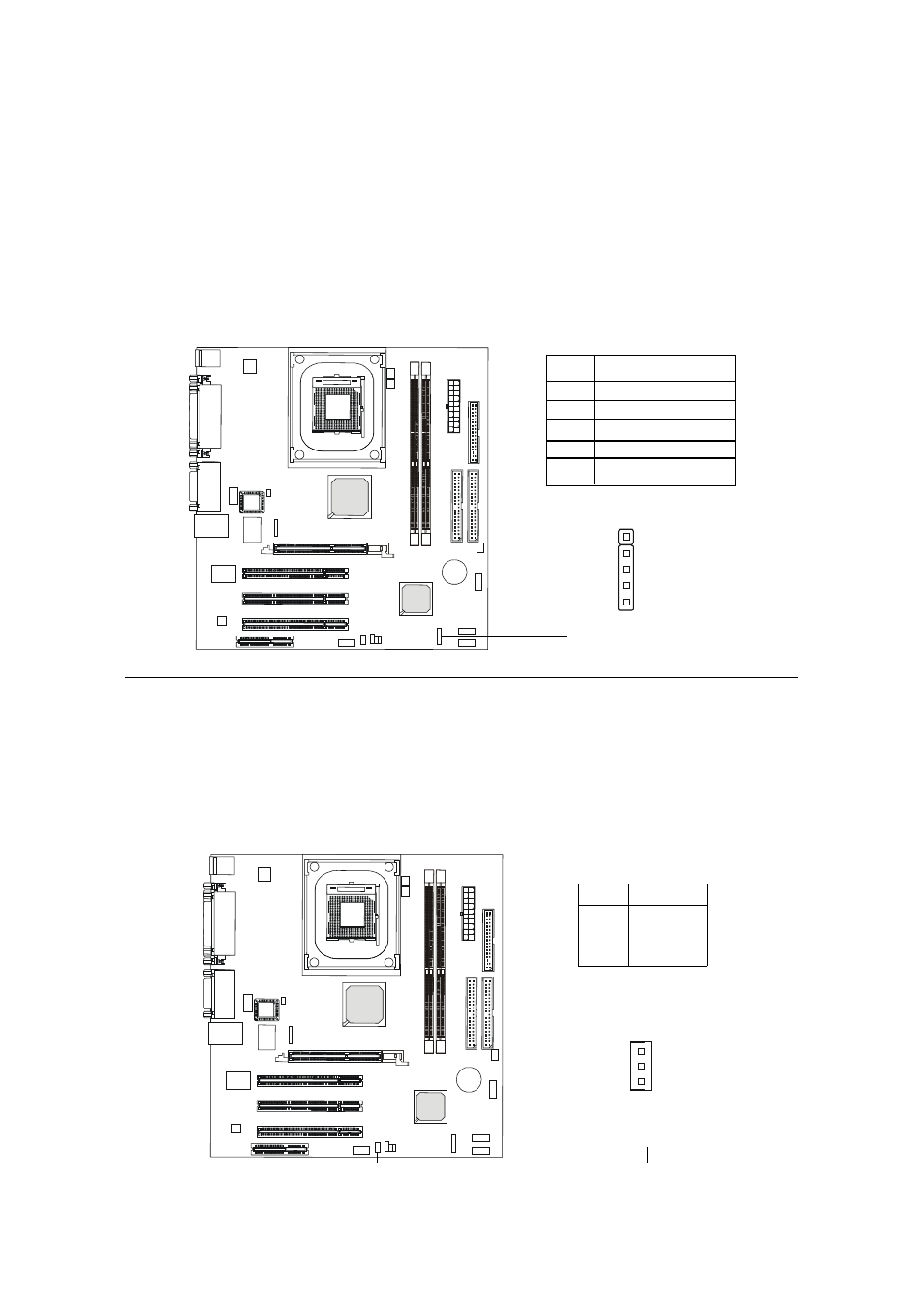

Wake On Ring Connector: JWR1
This connector allows you to connect to a modem card with Wake On
Ring function. The connector will power up the system when a signal is re-
ceived through the modem card. JWR1 is compliant with Intel
®
Front Panel I/
O Connectivity Design Guide.
Pin
Signal
1
NC
2
GND
3
MDM_WAKEUP
4
NC
5
5VSB
Wake On LAN Connector: JWL1
This connector allows you to connect to a LAN card with Wake On LAN
function. You can wake up the computer via remote control through a local
area network. JWL1 is compliant with Intel
®
Front Panel I/O Connectivity
Design Guide.
JWL1
1
Pin
Signal
1
5VSB
2
GND
3
WOL
JWR1
1
5
