Hardware Setup
2-9
Keyboard Connector: JKBMS1
The mainboard provides a standard PS/2
®
keyboard mini DIN connector
for attaching a PS/2
®
keyboard. You can plug a PS/2
®
keyboard directly into
this connector.
Mouse Connector: JKBMS1
The mainboard provides a standard PS/2
®
mouse mini DIN connector for
attaching a PS/2
®
mouse. You can plug a PS/2
®
mouse directly into this
connector. The connector location and pin assignments are as follows:
PIN
SIGNAL
DESCRIPTION
1
Mouse DATA
Mouse DATA
2
NC
No connection
3
GND
Ground
4
VCC
+5V
5
Mouse Clock
Mouse clock
6
NC
No connection
Pin Definition
PIN
SIGNAL
DESCRIPTION
1
Keyboard DATA
Keyboard DATA
2
NC
No connection
3
GND
Ground
4
VCC
+5V
5
Keyboard Clock
Keyboard clock
6
NC
No connection
Pin Definition

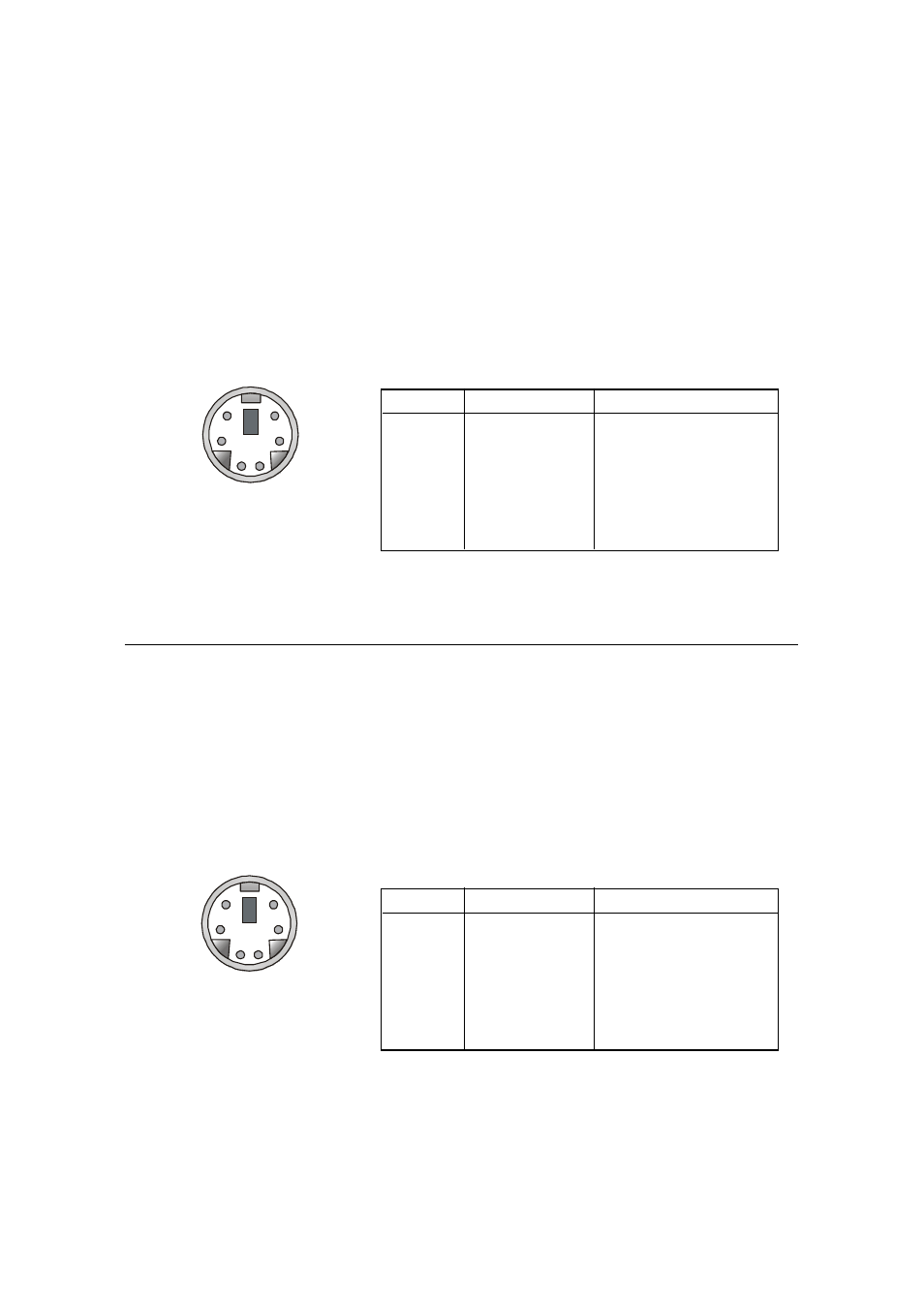

PS/2 Mouse
(6-pin Female)
2
1
3
4
5
6
PS/2 Keyboard
(6-pin Female)
2
1
3
4
5
6
