17 115407
OWNER’S MANUAL
KEY PART
NO. NUMBER DESCRIPTION QTY.
114285-03 Alternator Assembly 1
1 115243-01 Top Cover, Alternator 1
2 M10908-27 Screw, 10-32 x 1/2" 4
3 115244-01 End Cover, Alternator 1
4 115247-01 End Cap, Shaft 1
5 115246-01 Flange Nut, 8mm 1
6 115245-02 Draw Bolt, Alternator 1
7 * Stator, Alternator 1
8 115255-02 Capacitor 1
9 115308-01 Hex Head Taptite, 8mm Screw 4
10 WLE-5 Lock Washer, 5/16" 4
11 115315-01 Bearing 1
12 115316-01 Diode 2
13 * Rotor, Alternator 1
14 115317-01 Fan 1
15 ** Bolt, 3/8"-16 x 5/8" 4
16 ** Lock Washer, 3/8" 4
17 115242-01 Flange, Alternator 1
1
2
3
6
5
4
8 9
10
7
11 12
15
16
17
13
14

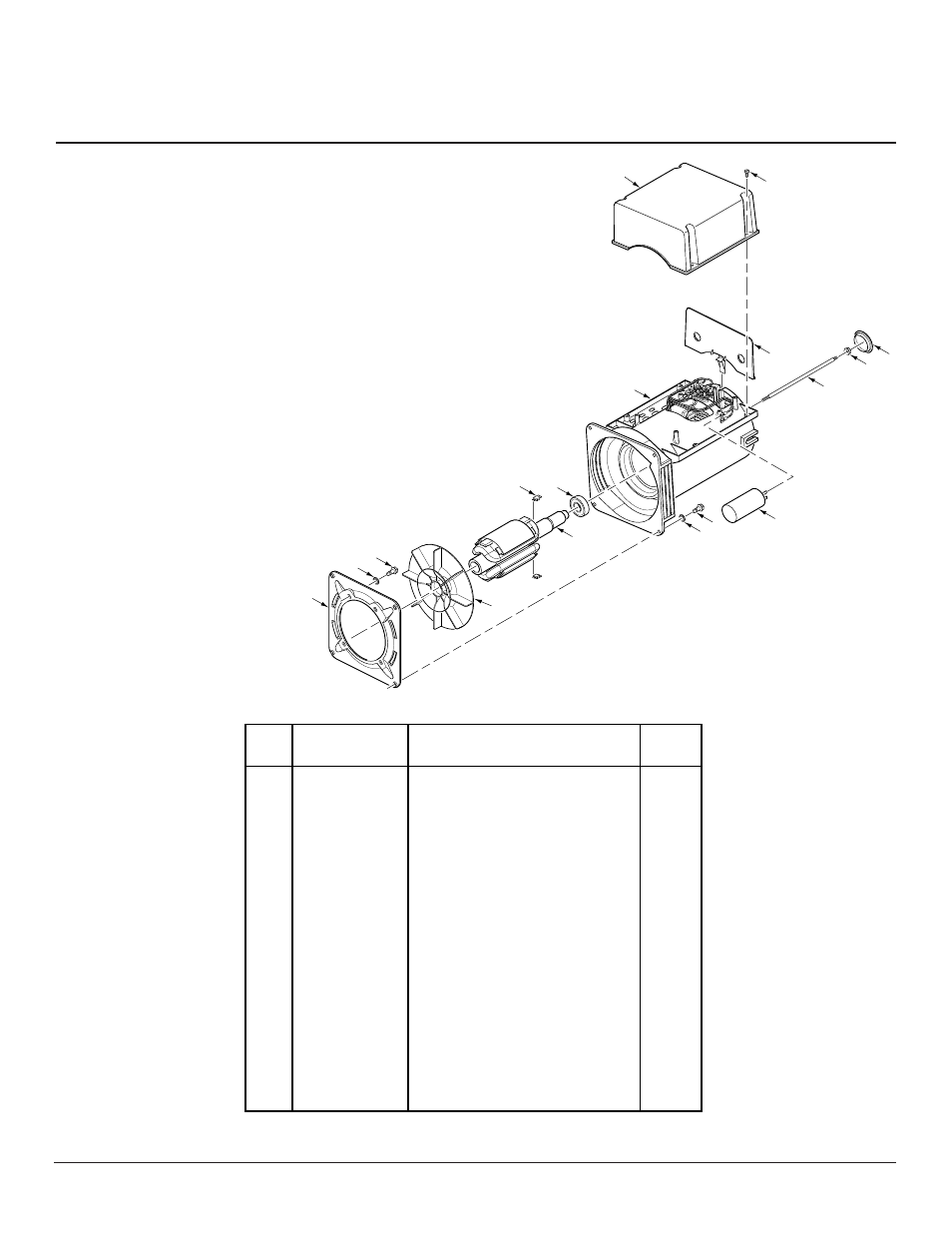

ILLUSTRATED
PARTS LIST
Alternator Assembly
This list contains replaceable parts used in
your generator. When ordering parts, follow
the instructions listed under Replacement
Parts on page 23 of this manual.
* Part not available by itself. Must purchase Alternator Assembly.
** Available at any hardware store.
