Appendix 3 Hard Disk Installation
Hard disk installation
There is one 80G hard disk (HD) preinstalled in the Mace DVR, unless you ordered a special configuration. So
normally you DO NOT have to go through these steps. This procedure only applies to cases where there is no
built-in hard dis k in the DVR or additional hard disks need to be installed.
In total, a ma ximum of 8 large capacity hard disks can be installed inside the machine if a CD burner is not
needed. With a CD burner, there can be a total of 5 internal large capacity hard disks. User can decide the
number of hard disks according to required image quality, recording time and recording length.
Installation steps

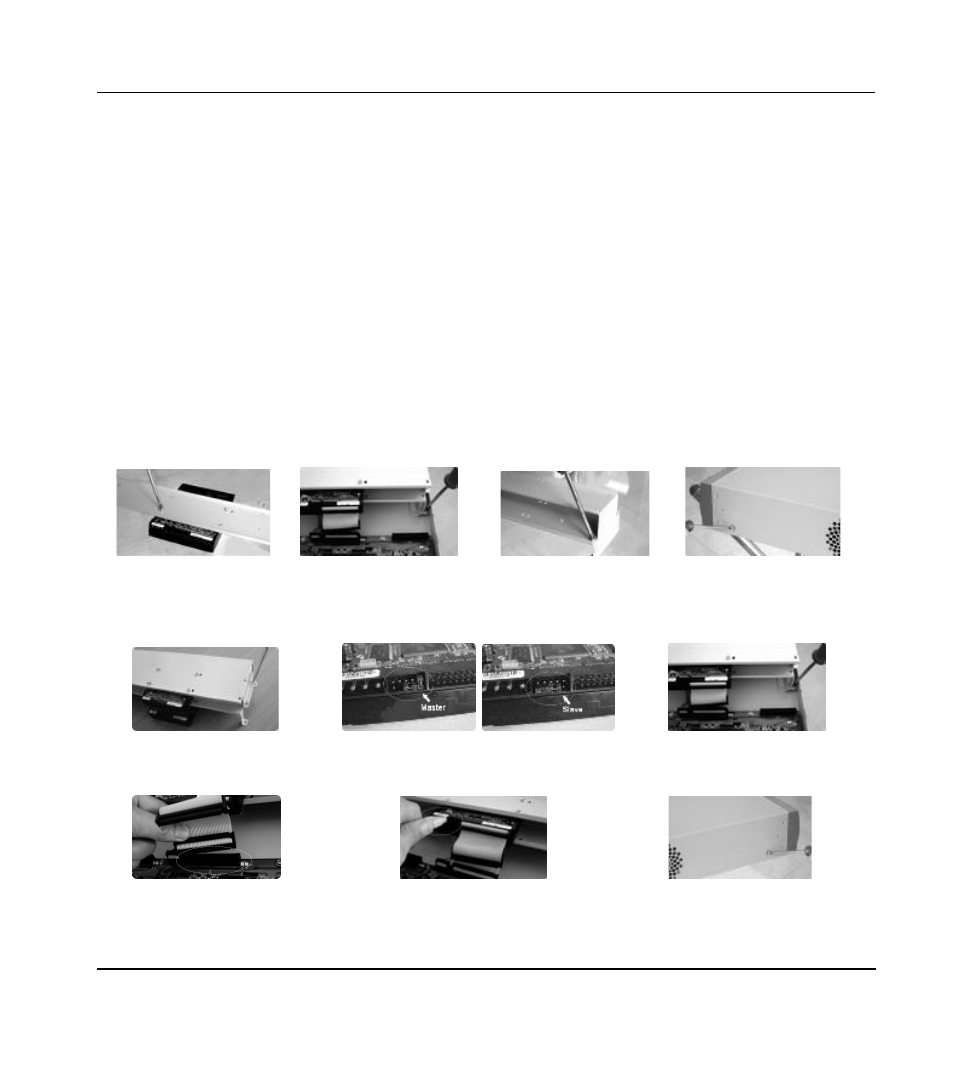

Dismantle the top cover, Dismantle the HD bracket Separate the up and down Install HD
open the cabinet part of the bracket
Combine the two parts Set the master-slave jumper on the same IDE port Fix the HD bracket
of the bracket (refer to the clue on the back of the HD)
Connect the IDE cable the HDD Plug in power cable Close the cover and install the
screws
Note: It is not necessary to dismantle the HD bracket if less than 4 HDs are installed
