DVR1604RW
Digital Video Recorder
Operational Manual
© 2004 Mace Security Products.
57
1.

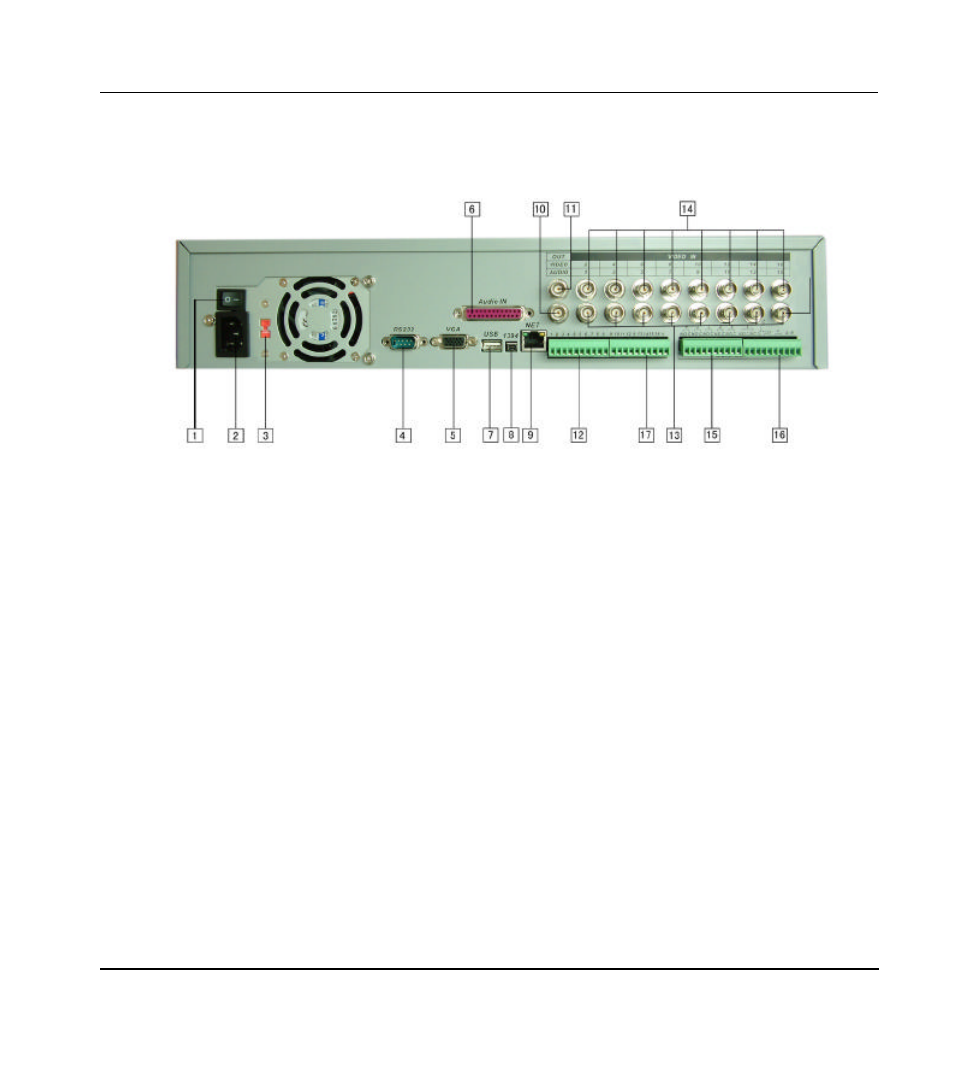

DVR Rear View
1
power switch 2 power plug
3
220V/110V shift switch
4
RS232 connection
5
VGA connection
6
Audio input
7
USB port
8
1394 connection
9
NET network connection
RJ45
10
Audio output
11
Vedio output
12
Alarm-RS485 connection
13
Vedio input
14
Vedio input
15
Alarm output
16
Alarm output & control connection
17
Alarm input
Network connection note: When connecting directly to the network card of a computer, please use CAT-5
Crossover Cable; when connecting to a LAN o r Router use CAT-5e cable.
