16. Positive Welding Output Terminal – Connect the
welding cable to this terminal. Select the appropriate
polarities according to the application. See Table 7.
17. Negative Welding Output Terminal – Connect the
negative cable of the welding source to this terminal.
Select the appropriate polarities according to the
application. See Table 7.
18. Receptacle G.F.C.I. – This receptacle provides 120 volts
and output @ 20 amps.
19. Circuit Protector Circuit Breaker – This single pole circuit
breaker provides circuit protection (250V @20 amps) for
the G.F.C.I receptacle.
20. Receptacle – Provides 120 volts output @ 25 amps.
21. Receptacle – Provides 120/240 volts output @ 25 amps.
22. G.F.C.I Ground Terminal – Use this terminal to connect
external equipment grounds so the G.F.C.I. receptacle will
have a ground path.
23. Frame Ground Lug – Connect a ground strap between
this lug and a ground rod. Make sure the ground rod is
inserted deep into the ground to provide a good earth
ground. Consult with local Electrical and Safety Codes
for proper connection.
24. Fuel Tank – Holds 10 gallons (38 liters) of unleaded
fuel.
25. Fuel Gauge – Indicates the amount of fuel in the fuel
tank.
26. Choke Knob – Used in the starting of a cold engine, or
in cold weather conditions. The choke enriches the fuel
mixture for starting a cold engine.
27. Lifting Hook – Use this hook to lift the generator.
28. Engine Oil Dipstick – Indicates engine oil level, add oil
as required. See Table 3 for correct type of oil.
29. Oil Drain Plug – Remove this plug to drain oil from the
engine.
30. Fuel drain Plug – Remove this plug to drain fuel from
the fuel tank.
MQ POWER
ON
IDLE CONTROL
OFF
ON
OPERATION
SWITCH
OFF
AC CIRCUIT BREAKER
HONDA POWERED by
POWERED by
MQ POWER
START BUTTON
WHISPERWELD
SGW-250SS
QUARTZ
HOUR METER
MQ POWER
Power Source
Professionals.
18
19 20 21 17
16
23
24
22
26
25
27
WHISPER WELD MQ POWER
HC
Power Source
Professionals.
30
28
29

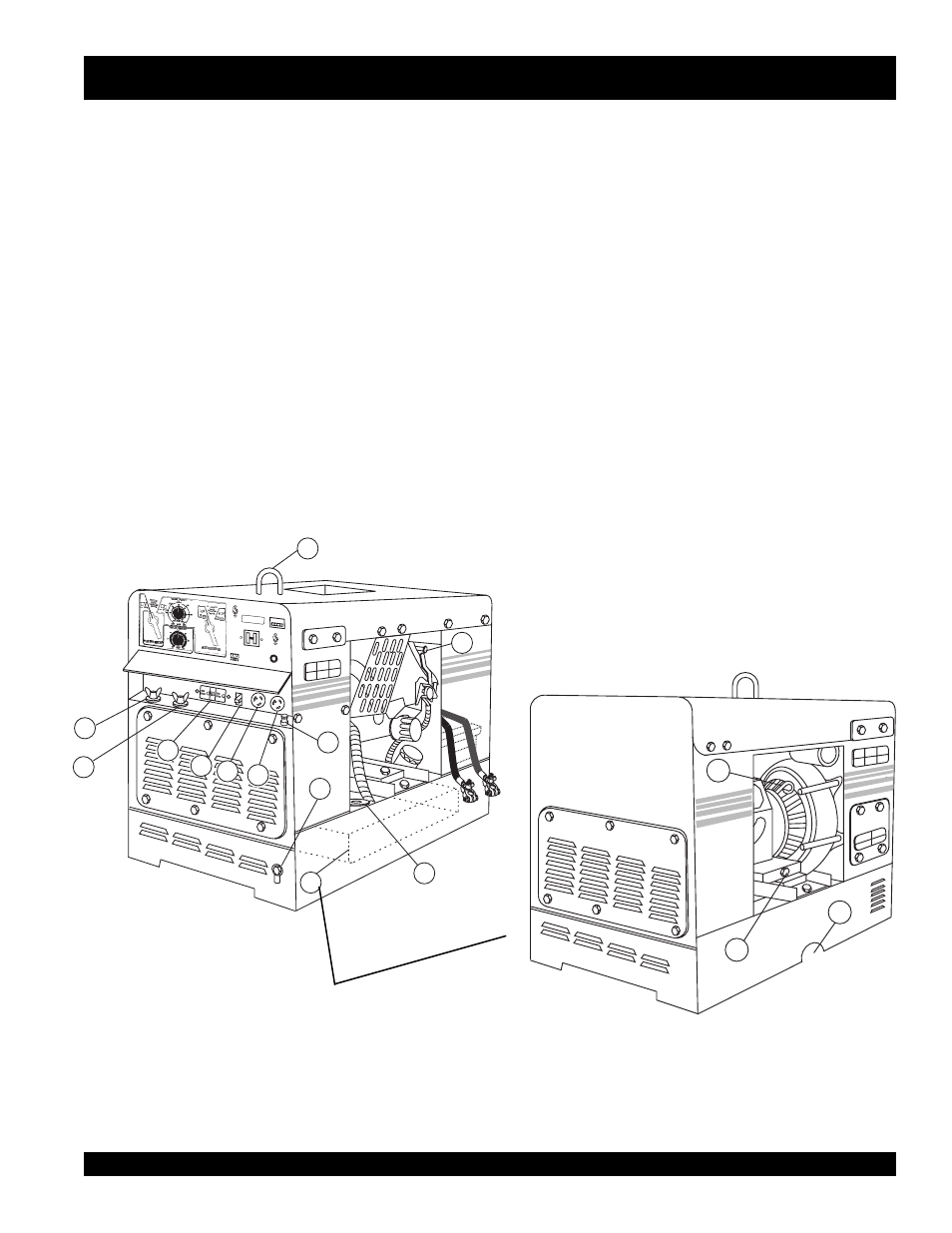

Figure 6. SGW250SS Components 2
