A PPENDIX C ( CONTINUED )

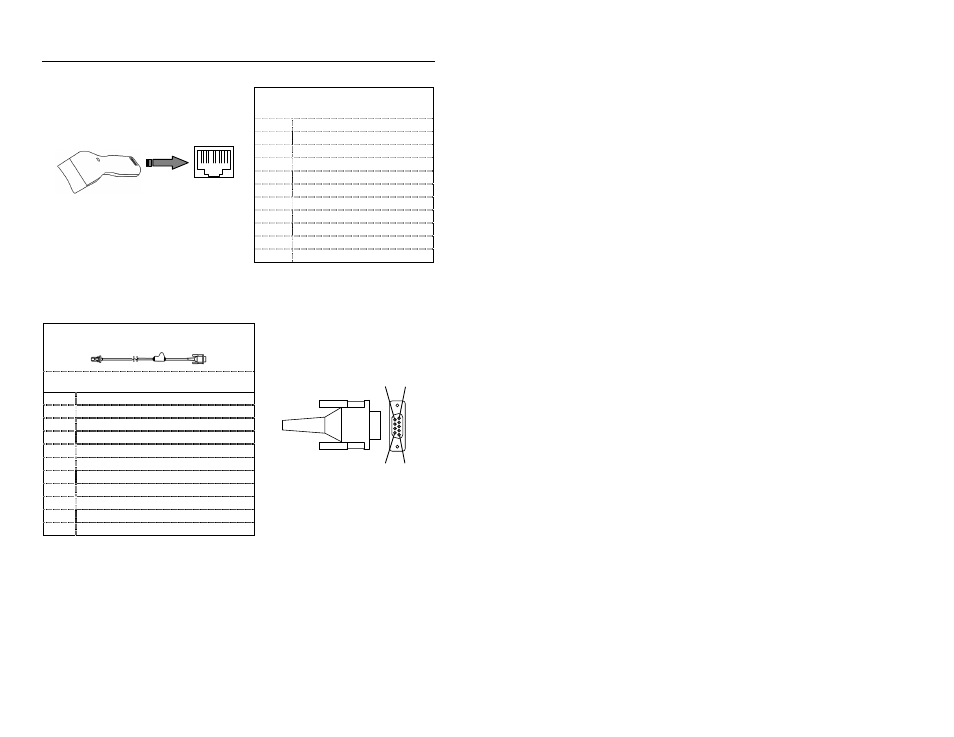

MS6220-47 Keyboard Wedge
Pin Function
1 Ground
2 RS-232 Transmit Output
3 RS-232 Receive Input
4 PC Data
5 PC Clock
6 KB Clock
7 PC +5V
8 KB Data
9 +5VDC
10 Shield Ground
Cable Connector Configurations
“Standard” PowerLink cable
(MLPN 53000 or 54000)
9-pin D-type female connector to the PC
Pin Function
1 Shield Ground
2 RS-232 Transmit Output
3 RS-232 Receive Input
4 DTR Input
5 Power/Signal Ground
6 Light Pen Data
7 CTS Input
8 RTS Output
9 +5VDC*
* If a PowerLink power supply is plugged into the PowerLink cable, +5V
will NOT be available on this pin. This pin is used when the host is
supplying +5V to the scanner.
9-Pin D-Type Connector
6 1
9 5
1 10
