Scanner parts – Metrologic Instruments MS6200 User Manual
Page 12
8
S
CANNER
P
ARTS

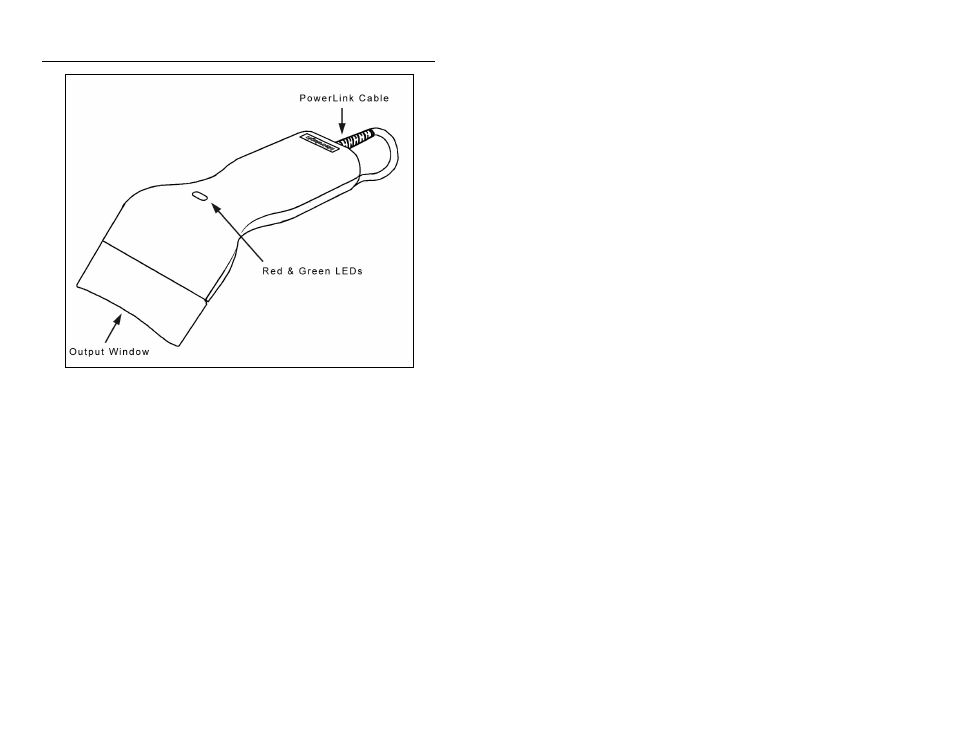

1. Green & Red LEDs
The MS6220 laser pulses on and off during normal operation. The green
LED remains on during normal pulse operation and it blinks during power
save mode. On a successful read of a bar code, the red LED will flash and
the scanner will beep once. The LEDs are also used as diagnostic
indicators and mode indicators.
2. Output Window
Laser Light emits from this aperture.
3. PowerLink Cable
The 10-pin modular plug on the PowerLink cable connects into the 10-pin
modular jack on the MS6220.
