Note: Console program is case sensitive.
After you have finished setting parameters,
press
the
“
Enter” Key and the Main
Menu of console management appears.

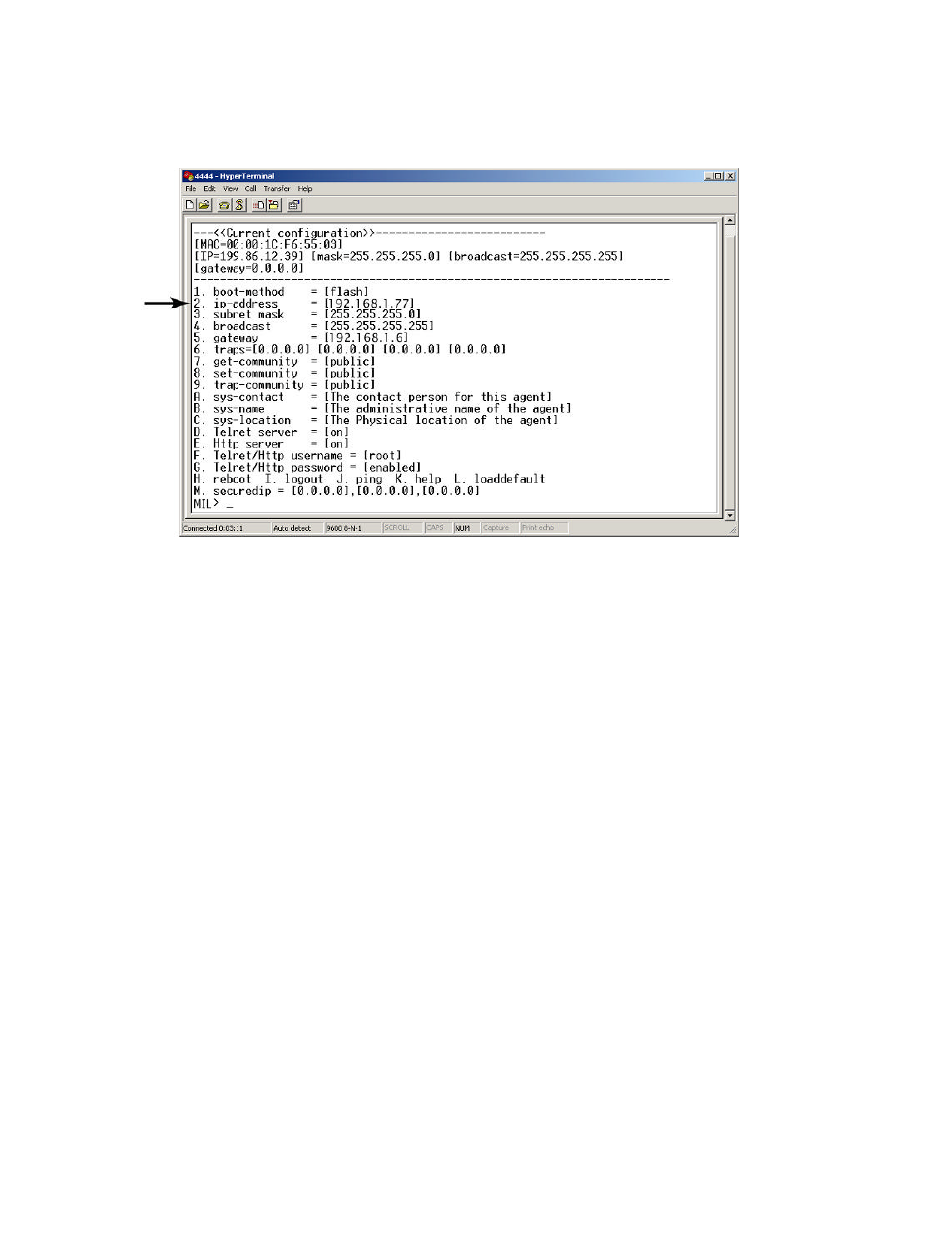

Figure 3-3. The Main Menu of Console Management
Assigning an IP Address to the switch
Once you have logged into the MIL-SM801XX, you need to assign an IP address to
the switch’s Ethernet interface so that you can connect to the switch using a Web
Browser.
1.
From the Main Menu of the console, select Item 1 by typing in “1” after the
prompt and press Enter. You must select the appropriate Boot Method ---
Flash, BOOTP, or DHCP (For more information, see Web-based Management
– Agent Config ).
2.
There are three command options to change the IP Address (the initial Default
IP address is 192.168.1.77). For example, if you wanted to change the IP
address to 199.86.12.40, you could type one of the following at the MIL
prompt:
MIL> ip-address 199.86.12.40
MIL> 2 199.86.12.40
MIL> ip 199.86.12.40
Note: After typing in the command press Enter twice.
