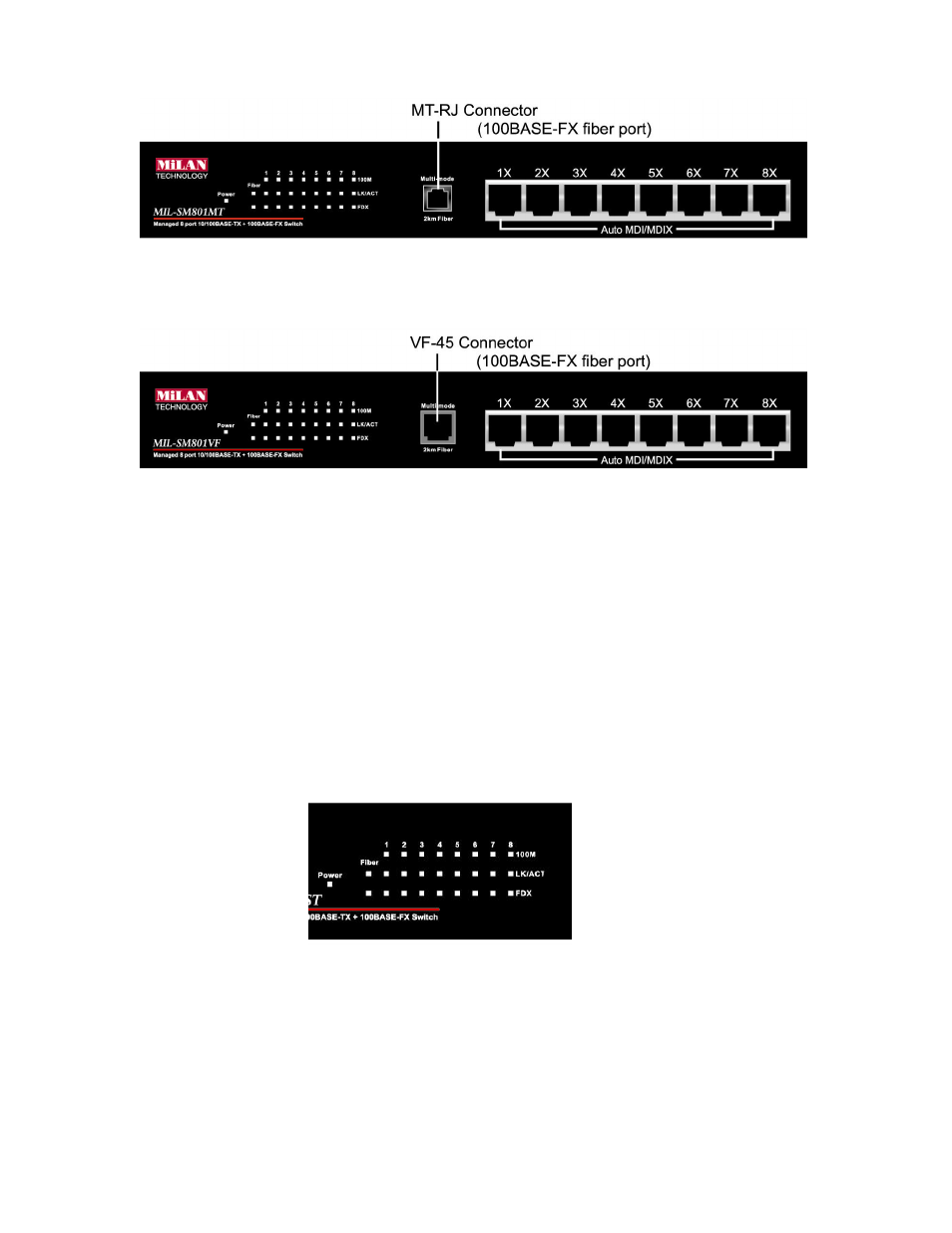

Figure 2-5. The Front Panel of the MIL-SM801XX with MT-RJ connector
Figure 2-6. The Front Panel of the MIL-SM801XX with VF-45 connector
n RJ-45 Ports (Auto MDI/MDIX): Eight 10/100 auto-sensing for 10Base-T or
100Base-TX connections. MDI configuration provides the means to connect to
another hub or switch while MDIX provides connection to a workstation or PC.
n
100Base-FX Fiber Port: There are four connectors available for the MIL-
SM801XX as shown above. The distance for multi-mode fiber cabling can be
up to 2 kilometers, whereas the distance for SC single-mode fiber can be up to
60 kilometers.
LED Indicators
Figure 2-7. Detail of LED Indicators
There are three LED-indicators (100M, LNK/ACT, FDX/COL) for each UTP port.
The following table provides descriptions of the LED indicators. They provide a real-
time indication of operational status.
6
