Page 11
On
Green The port is successfully connected to a device
Blinks
Green The port is receiving or transmitting data
LNK /
ACT
Off
No device attached
On
Amber The port is operating in full-duplex mode
Blinks
Amber Collisions are occurring on the port
FDX /
COL
Off
Half-duplex mode or no device attached

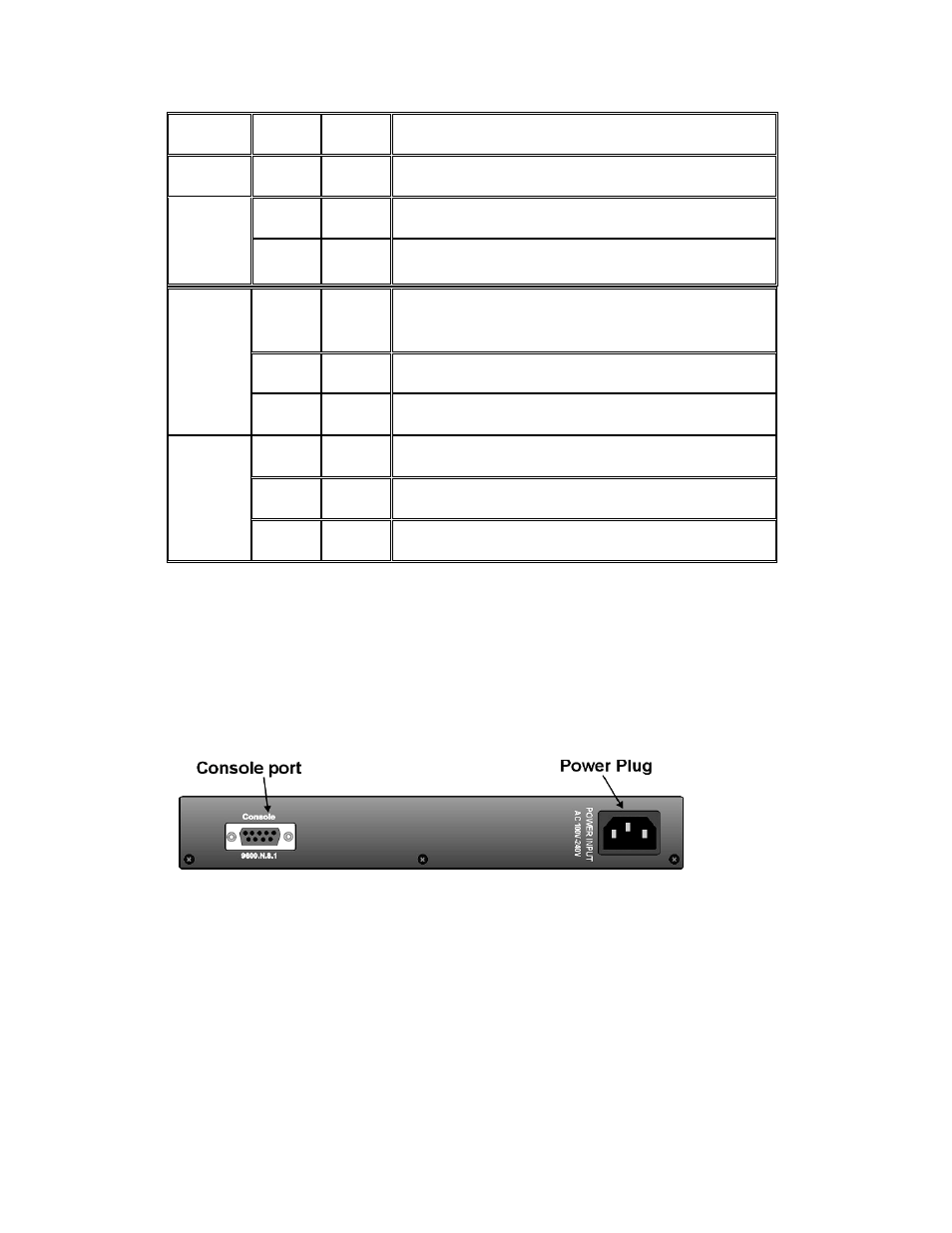

Table 2-1. Description of LED Indicators
Rear Panel
The 3-pronged power plug is located at the rear panel of the MIL-SM801XX as
shown in Figure 2-8. The switch will work with AC in the range of 100-240V AC, 50-
60Hz.
Figure 2-8 The Rear Panel of the MIL-SM801XX
LED
Status
Color
Description
Power
On
Green Power On
On
Green The port is operating at the speed of 100Mbps
100M
Off
In 10Mbps mode or no device attached
7
