Installation Of Plasma Panel To The Wall (Optional)
1- To install the plasma panel on the wall, first of all, foot assembly should be removed.
(Figure 1). Unscrew the 4 screws (M5 x 12) that attach the foot assembly to the panel and
remove the foot assembly from the panel.
The plasma TV can be installed to the wall with or without speakers.
2- Install the wall hanger as in figure 2 to the wall with 4 anchors (M10 x 50) and 4 screws
(M7 x 60).
Decide the place on the wall where the plasma panel would be placed. Level and mark
with a pencil the 4 mounting points on the wall hanger. Drill pilot holes for the plastic an-
chors and then fix the wall hanger with 4 screws (M7 x 60).
3- Raise the plasma panel and hang it to the holes on the wall hanger from the 2 hanging
screws at the rear of the plasma panel.
Assembling The Speakers (Optional)
Turn the rear side of the plasma panel and place it on a solid surface such as a table or a
desk. Put the speakers to the left and right sides of the panel. Place the speaker holders (2
on the left speaker and 2 on the right speaker) on the holes at the plasma panel and fix one
holder with 3 screws (M3 x 12) to the speaker and the panel. Connect the speaker cables to
the speakers and the Plasma Panel.
SCREW
3X12
SCREW M5X12
SCREW
3X12
SCREW
3X12
SCREW
3X12
HOLDER SPK AL PART
HOLDER SPK AL PART
PDP 4210

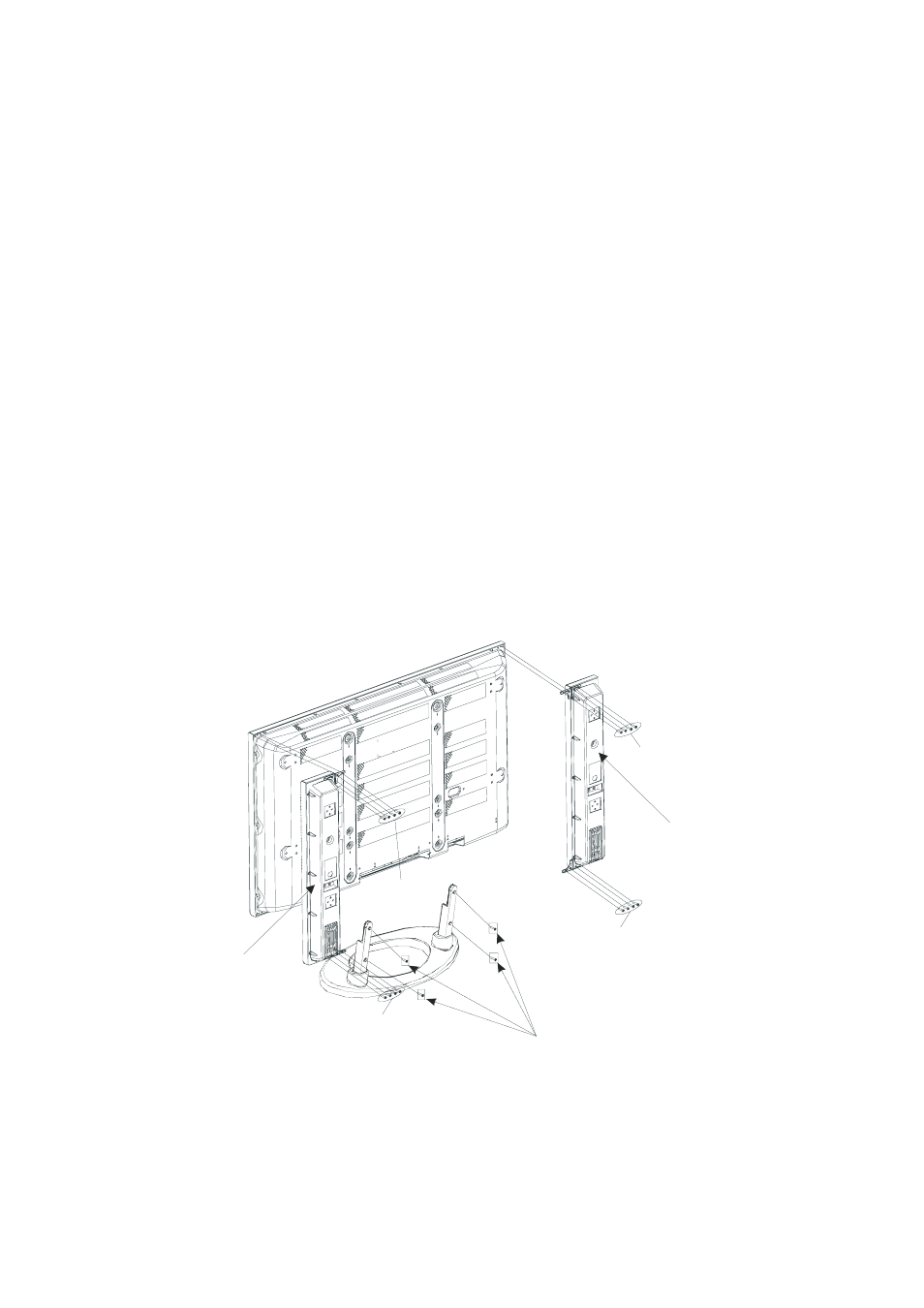

FIGURE 1
