Attaching the MultiConnect to a Fixed
Location
The MultiConnect Adapter is design to be used on the desktop or to be panel-mounted. To attach the bracket for
panel-mounting, following these steps:

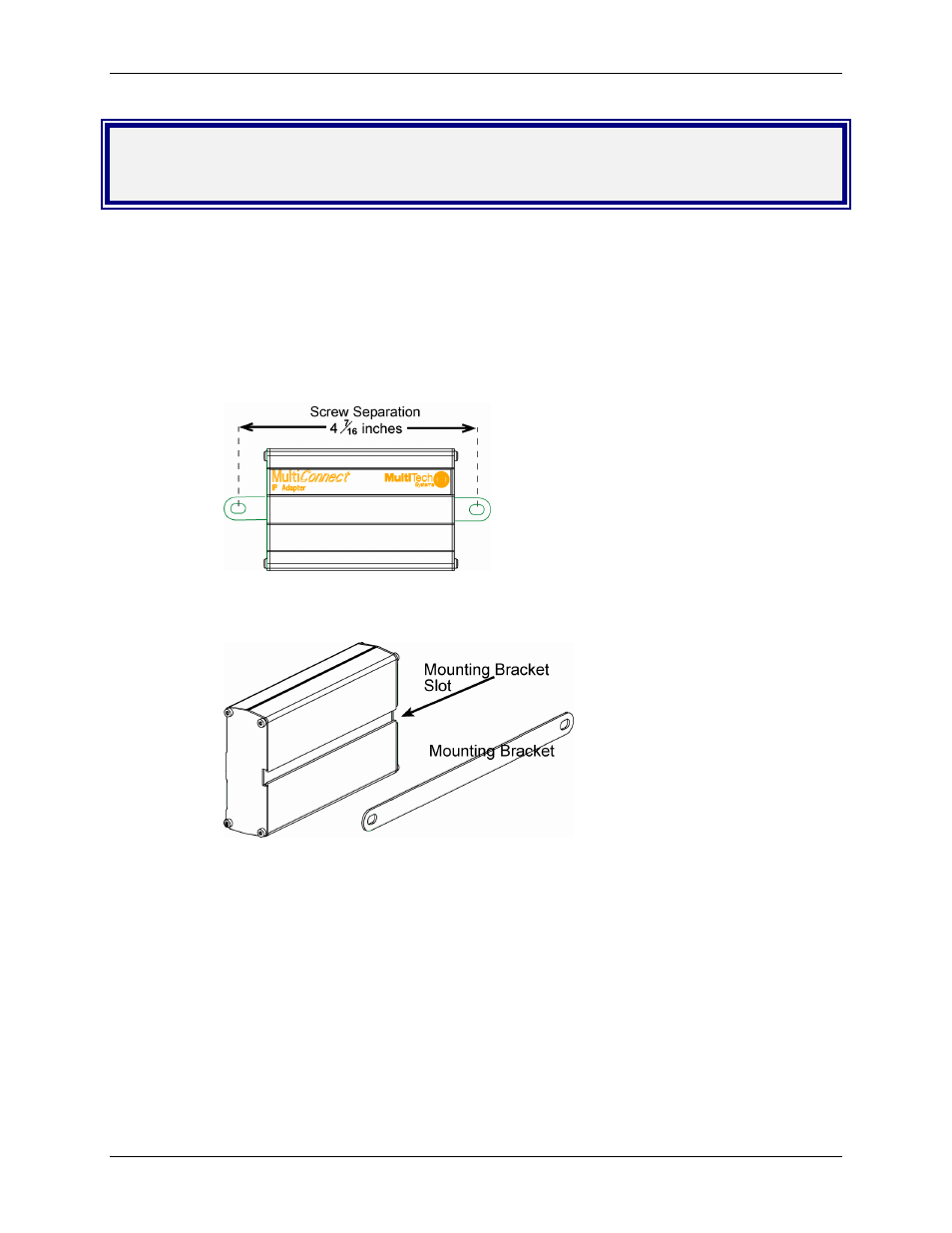

1. Typically, the MultiConnect Adapter is mounted against a flat surface with two mounting screws. Drill the
mounting holes at the desired location. The mounting holes must separated by 4 -7/16 inches center-to-center.
2. To attach the brackets to the MultiConnect, slide the mounting brackets into the corresponding slots on the back
of the MultiConnect chassis.
3. Attach the Adapter to the surface with two screws.
