DCA45USI2 60 HZ GENERATOR • OPERATION AND PARTS MANUAL — REV. #0 (01/12/11) — PAGE 29

OUTPUT TERMINAL PANEL CONNECTIONS

3Ø-480/277V UVWO Terminal Output Voltages

1. Place the voltage selector switch in the 3Ø 480/277

position as shown in Figure 24.

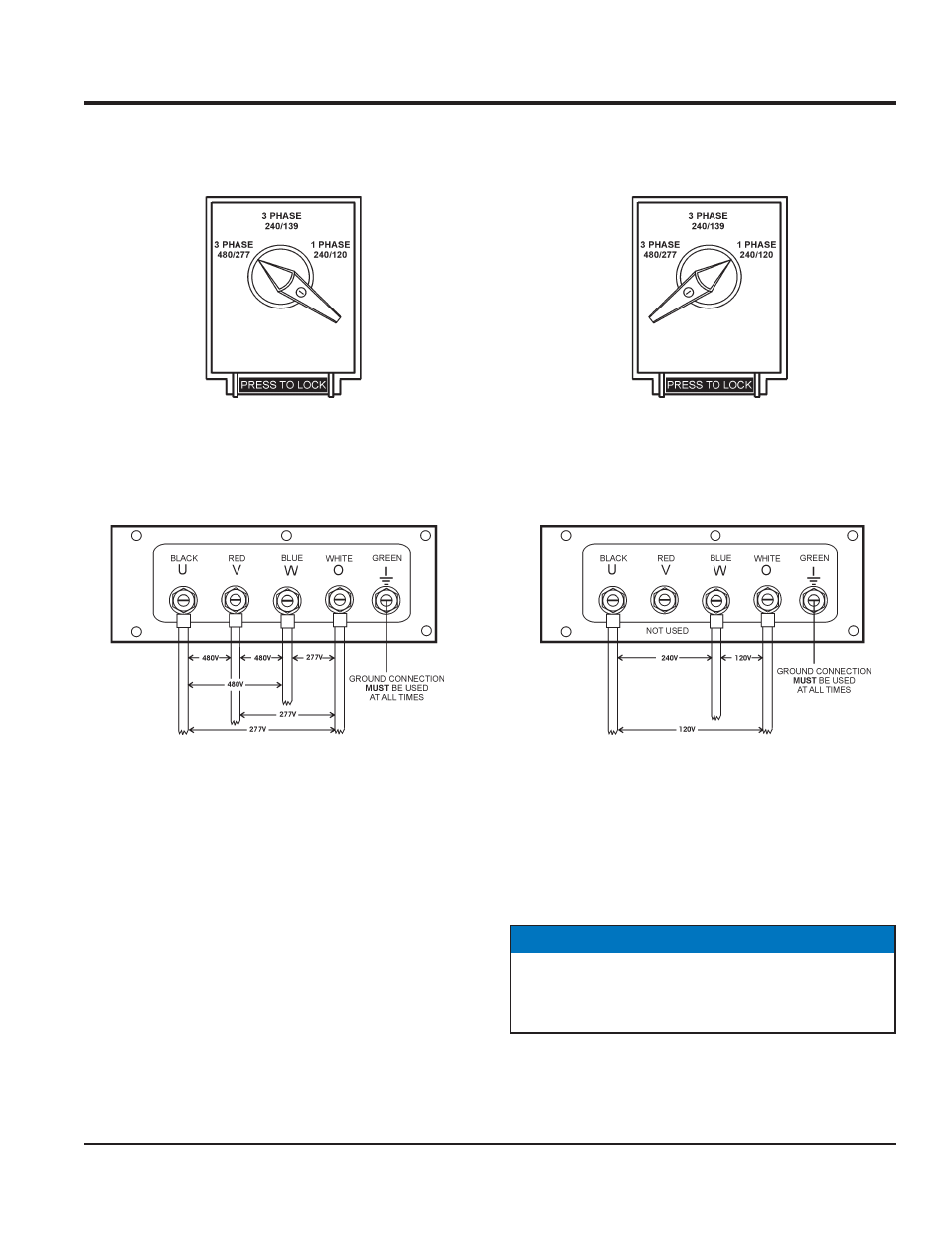

Figure 24. Voltage Selector Switch

3Ø-480/277V Position

2. Connect the load wires to the UVWO terminals as

shown in Figure 25.

Figure 25. UVWO Terminal Lugs

3Ø-440/254V Connections

3. Turn the voltage regulator knob (Figure 21) clockwise

to increase voltage output, turn counterclockwise
to decrease voltage output. Use voltage regulator
adjustment knob whenever fi ne tuning of the output
voltage is required.

1Ø-240/120V UVWO Terminal Output Voltages

1. Place the voltage selector switch in the 1Ø 240/120

position as shown in Figure 26.

Figure 26. Voltage Selector Switch

1Ø-240/120V Position

2. Connect the load wires to the UVWO terminals as

shown in Figure 27.

Figure 27. UVWO Terminal Lugs

1Ø-240/120V Connections

3. Turn the voltage regulator knob (Figure 27) clockwise

to increase voltage output, turn counterclockwise to
decrease voltage output. Use voltage regulator
adjustment knob whenever fi ne tuning of the output
voltage is required.

NOTICE

ALWAYS make sure that the connections to the UVWO
terminals are secure and tight. The possibility of arcing
exists, that could cause a fi re.
