DCA45USI2 60 HZ GENERATOR • OPERATION AND PARTS MANUAL — REV. #0 (01/12/11) — PAGE 13
DIMENSIONS
45
F
G
FRONT VIEW
SIDE VIEW
TOP VIEW
H
A
B
C
D
E

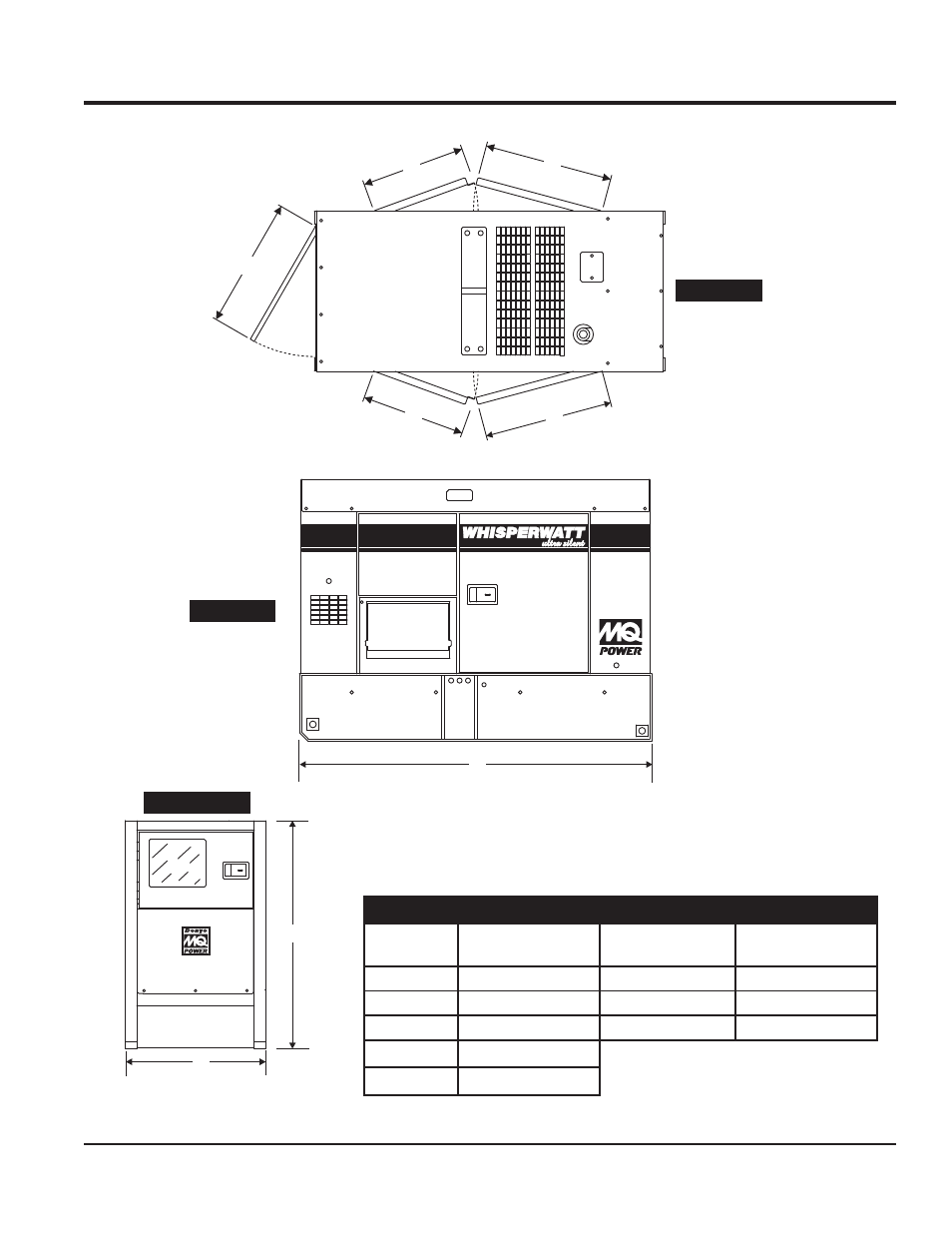

Figure 1. Dimensions
Table 3. Dimensions
Reference
Letter
Dimension in. (mm) Reference Letter Dimension in. (mm)
A 30.55 in. (776 mm.) F 83.07 in. (2,130 mm.)
B 24.37 in. (619 mm.) G 61.00 in. (1,550 mm.)
C 30.16 in. (766 mm.) H 37.40 in. (950 mm.)
D 30.16 in. (766 mm.)
E 24.37 in. (619 mm.)
