Leveling adjustment
This procedure levels the table so that it is perpendicular
to the blade and flush against the rails.
1. Remove rubber caps B and C on the right side of the
table. Loosen the exposed lock nuts using a socket
wrench. Next, use a flat screwdriver to turn the shaft
of the rollers clockwise. See Figure 24. This will lower
the horizontal rollers to allow room for adjusting the
flat rollers.
2. Loosen the socket bolts on the flat roller plate so that
the roller can swing freely about one bolt. see Figure
27. Do this for both flat roller plates.
3. Hold the table against the guide rails. The flat rollers
should reposition themselves to maintain contact with
the guide rails. If the table is not perpendicular to the
blade, lift the right side of the table instead to obtain the
proper angle. A square tool will be required to confirm
the angle. Tighten the socket bolts. Check the table for
play. Repeat step 2 if some play is still present.
4. Restore the horizontal rollers to their original positions
as shown in Figure 22 by reversing the instructions in
step 1. Be sure to tighten the lock nuts and replace
the rubber caps.

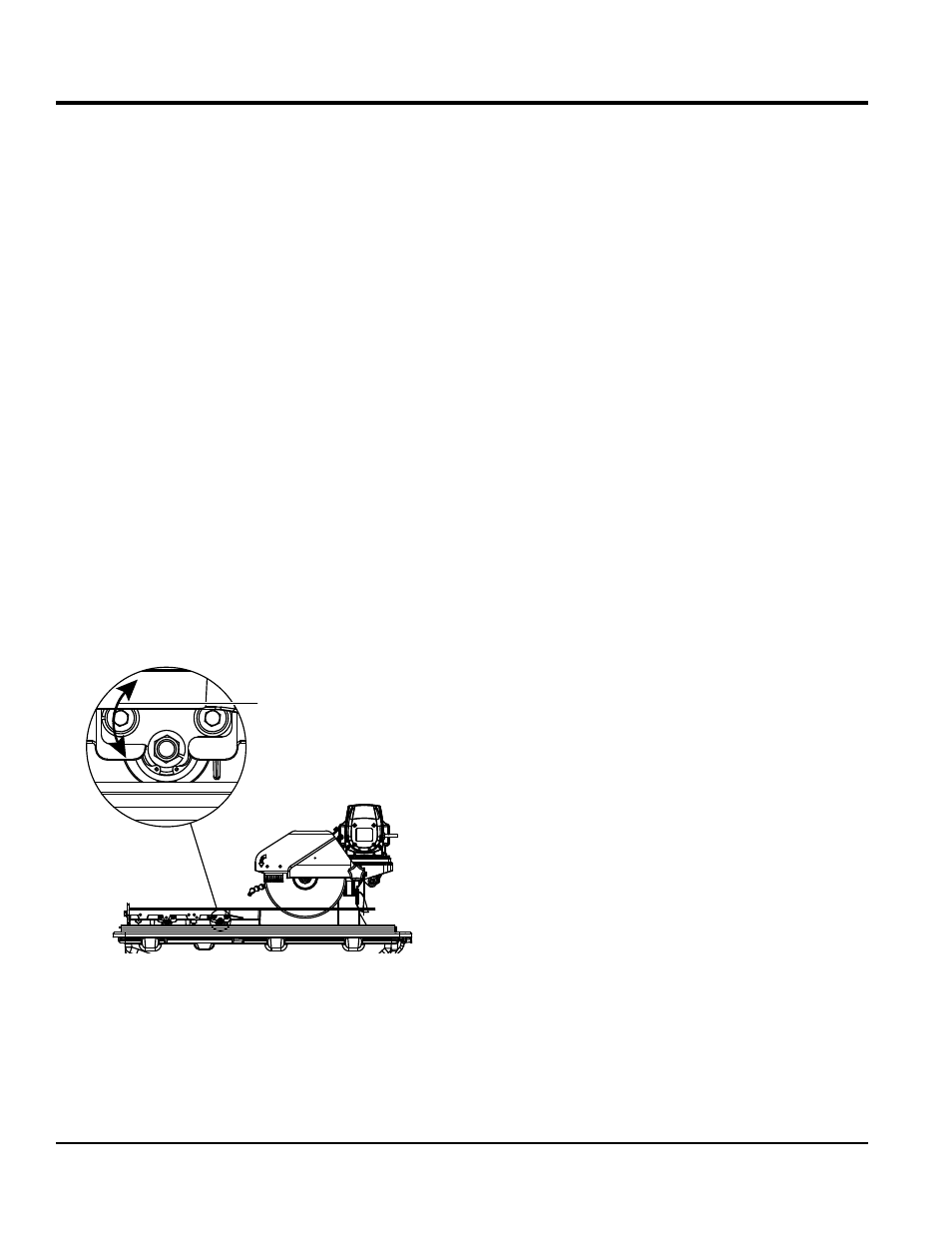

Figure 27. Flat Roller Rotation
FLAT ROLLERS
ROTATE IN
THIS MANNER
Maintenance
TranSporTIng THe SaW
1. Ensure that the water tray is empty and dry.
2. Unplug the power cord and store it in the water tray.
3. Secure the cutting table to the front of the saw using
the table retention device.
4. Tighten the cutting depth control knob.
5. Optionally, the rear drip tray may be removed and set
in the water tray for better handling.
