Tp24 TILe SaW • operaTIon and parTS manuaL — rev. #2 (04/12/12) — page 27

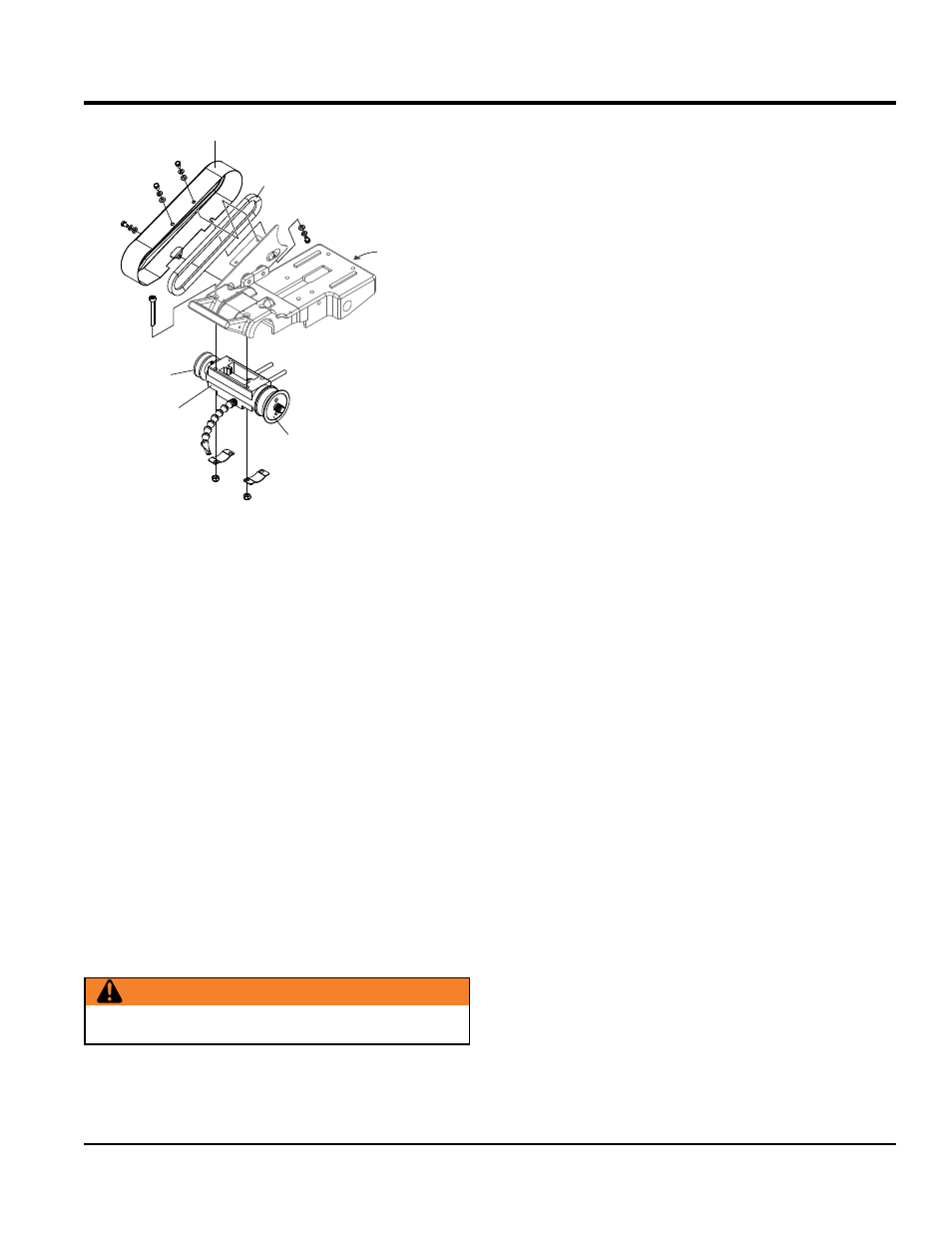

Figure 19. Bearing Housing Removal
BearIng HouSIng InSTaLLaTIon
To install a new bearing housing, perform the following:
1. Make sure that the old housing has been properly
removed.
2. Unpack the new bearing housing and place the flat
portion face-down on a towel situated on a flat surface.
3. Secure the cutting head in a in a completely horizontal
position.
4. Slide the new bearing housing with the flat portion
facing upwards onto the 4 screws located below the
mounting plate. Take care not to damage the inner
flange. Lock the bearing housing into place by using
the brackets and nuts.
5. Pull the motor towards you, place the belt on the
pulleys, and tighten the motor position adjustment
screw. Be sure to leave some slack on the belt.
6. Align the belt by adjusting the motor pulley after
loosening the hex screw.
7. After aligning the belt, tighten the hex screw.
8. Replace the belt guard and lock into place using 4 screws.
ADJUSTMENT
SCREW
BELT
GUARD
BELT
PULLEY
BEARING
HOUSING
INNER
FLANGE
WarnIng
Do not adjust the bearing housing pulley.
Maintenance
