89

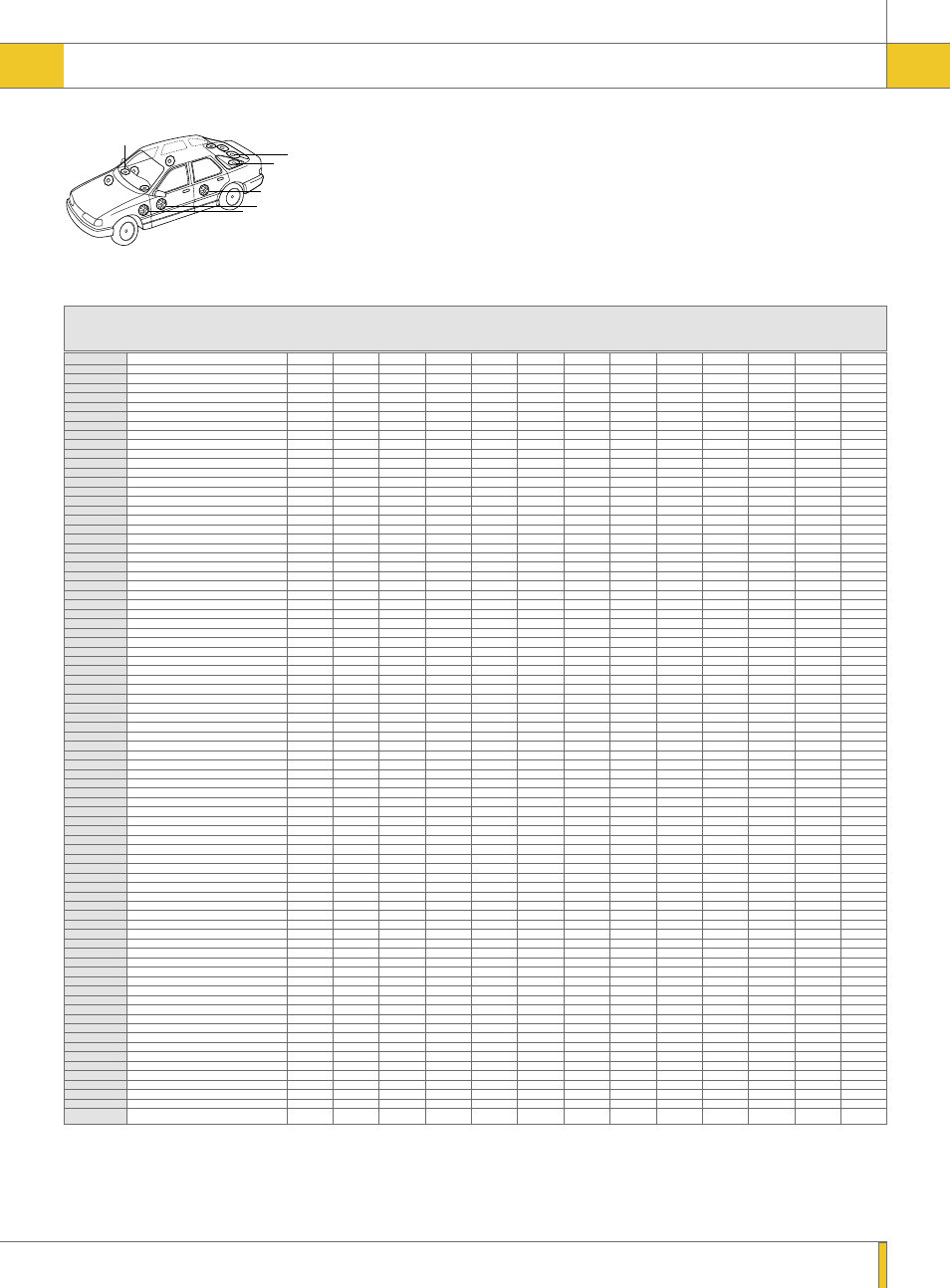

universal speaker application chart for original speaker location
MODEL &
CAR BRAND INTRODUCTION DATE
E
C
G F
A
D
B
Car Model & Location Eur Ref. E-MotionE-MotionE-Motion a-Ccelerate a-Ccelerate a-Ccelerate a-Ccelerate G-series G-series Speaker Speaker
Brand Introduction Separate Reference 3-way 2-way Separate 4-Way 3-Way 2-Way 2-Way Dual Interface Adaptor
Date Compo Compo Series Series Compo Series Cone Kits Plates
Series Series
ALFA ROMEO Alfa 145 (9/94-4/01) A TS-C1700R*(1) TS-E175C*(1) TS-E1775 TS-A171C (1) TS-A1710 TS-G1746 TS-G1716 * UD-M171
F TS-C1300R TS-E135C TS-E1395 TS-E1375 TS-A131C TS-A1310 TS-G1346 TS-G1316
Alfa 146 (9/95-4/01) A TS-C1700R*(1) TS-E175C*(1) TS-E1775 TS-A171C (1) TS-A1710 TS-G1746 TS-G1716 * UD-M171
G TS-G1746 TS-G1716
Alfa 155 (3/92-9/97) C TS-C1700R TS-E175C TS-A171C TS-G1746 TS-G1716 UD-M171
Alfa 156 (9/97-) A TS-C1700R* TS-E175C* TS-E1795* TS-E1775 TS-A171C TS-A1710 TS-G1746 TS-G1716 * UD-M171
G TS-C1700R* TS-E175C* TS-E1795* TS-E1775 TS-A171C TS-A1710 TS-G1746 TS-G1716 * UD-M171
C TS-E6995 TS-A6920 TS-A6910 TS-A6900
164-super (3/92-9/98) A TS-C1700R TS-E175C TS-A171C TS-G1746 TS-G1716
C TS-E6995 TS-A6920 TS-A6910 TS-A6900
166 (10/98-) A TS-G1746 TS-G1716
G TS-G1746 TS-G1716
C TS-C1700R TS-E175C TS-E1795 TS-E1775 TS-A171C TS-A1710 TS-G1746 TS-G1716
AUDI A4 4-door (1/01-) A TS-C1700R TS-E175C TS-E1795 TS-E1775 TS-A171C TS-A1710 TS-G1746 TS-G1716 UD-M174VW
G TS-C1700R TS-E175C TS-E1795 TS-E1775 TS-A171C TS-A1710 TS-G1746 TS-G1716 UD-M174VW
A6 (3/97-) A TS-E1775 TS-A171C TS-A1710 TS-G1746 TS-G1716
G TS-E1775 TS-A171C TS-A1710 TS-G1746 TS-G1716
TT (10/98-) A TS-C1700R TS-E175C TS-E1795 TS-E1775 TS-A171C TS-A1710 TS-G1746 TS-G1716
BMW 3-series 2-door (10/85-1/92) D TS-C1300R TS-E135C TS-A131C TS-G1316
3 Touring (1/88-4/00) D TS-C1300R TS-E135C TS-A131C TS-G1316
E TS-E1075 TS-G1046 TS-G1016
3-series 4-door (12/90-2/98) D TS-C1300R TS-E135C TS-A131C TS-G1316
3-series coupé (1/92-1/99) D TS-C1300R TS-E135C TS-A131C TS-G1346 TS-G1316
3-series compact (5/94 - 10/00) D TS-C1300R TS-E135C TS-A131C TS-G1316
5-series (1/88-6/95) D TS-C1300R TS-E135C TS-A131C TS-G1316
C TS-C1300R TS-E135C TS-E1395 TS-E1375 TS-A131C TS-A1310 TS-G1346 TS-G1316
5-series (7/95-) D TS-C1300R TS-E135C TS-E1395 TS-E1375 TS-A131C TS-A1310 TS-G1346 TS-G1316
C TS-C1300R TS-E135C TS-E1395 TS-E1375 TS-A131C TS-A1310 TS-G1346 TS-G1316
7-series (10/86-3/94) D TS-C1300R TS-E135C TS-E1395 TS-E1375 TS-A131C TS-A1310 TS-G1346 TS-G1316
C TS-C1300R TS-E135C TS-E1395 TS-E1375 TS-A131C TS-A1310 TS-G1346 TS-G1316
MINI (10/00-) A TS-C1700R TS-E175C TS-E1795 TS-E1775 TS-A171C TS-A1710 TS-G1746 TS-G1716 UD-M177VW
F TS-A6900
CITROËN AX series 3-door (8/91-9/96) F TS-C1300R TS-E135C TS-E1375 TS-A131C TS-G1346 TS-G1316
AX series 5-door (8/91-9/96) A TS-G1346 TS-G1316
BX (8/86-2/93) A TS-C1300R TS-E135C TS-A131C TS-G1316
Saxo 3-door (10/96-9/01) A TS-C1300R TS-E135C TS-E1395 TS-E1375 TS-A131C TS-A1310 TS-G1346 TS-G1316
Saxo 5-door (10/96-9/01) A TS-C1300R TS-E135C TS-E1395 TS-E1375 TS-A131C TS-A1310 TS-G1346 TS-G1316
G TS-C1300R TS-E135C TS-E1395 TS-E1375 TS-A131C TS-A1310 TS-G1346 TS-G1316
Xantia (3/92-12/00) A TS-C1700R (1) TS-E175C (1) TS-E1795 TS-E1775 TS-A171C (1) TS-A1710 TS-G1746 TS-G1716
G TS-C1300R TS-E135C TS-E1395 TS-E1375 TS-A131C TS-A1310 TS-G1346 TS-G1316
XM 4-door (7/89-12/00) A TS-C1700R TS-E175C TS-A171C TS-G1716
E TS-G1346 TS-G1316
XM Break (1/92-12/00) A TS-C1700R TS-E175C TS-A171C TS-G1716
E TS-G1316
ZX Reflex Avantage (4/91-9/97) A TS-C1300R TS-E135C TS-E1395 TS-E1375 TS-A131C TS-A1310 TS-G1346 TS-G1316
ZX Aura/Volcane (4/91-9/97) A TS-C1300R TS-E135C TS-E1395 TS-E1375 TS-A131C TS-A1310 TS-G1346 TS-G1316
G TS-C1300R TS-E135C TS-E1395 TS-E1375 TS-A131C TS-A1310 TS-G1346 TS-G1316
ZX 3-door (10/92-9/97) A TS-C1300R TS-E135C TS-E1395 TS-E1375 TS-A131C TS-A1310 TS-G1346 TS-G1316
F TS-C1300R TS-E135C TS-E1395 TS-E1375 TS-A131C TS-A1310 TS-G1346 TS-G1316
ZX Break (1/94-2/98) A TS-C1300R TS-E135C TS-E1395 TS-E1375 TS-A131C TS-A1310 TS-G1346 TS-G1316
G TS-C1300R TS-E135C TS-E1395 TS-E1375 TS-A131C TS-A1310 TS-G1346 TS-G1316
Xsara (10/97-) A TS-C1700R (1) TS-E175C (1) TS-E1795 TS-E1775 TS-A171C (1) TS-A1710 TS-G1746 TS-G1716
Xsara 5-door (10/97-) A TS-C1700R (1) TS-E175C (1) TS-E1795 TS-E1775 TS-A171C (1) TS-A1710 TS-G1746 TS-G1716
G TS-C1300R TS-E135C TS-E1395 TS-E1375 TS-A131C TS-A1310 TS-G1346 TS-G1316
Xsara Break (3/98-) A TS-C1700R (1) TS-E175C (1) TS-E1795 TS-E1775 TS-A171C (1) TS-A1710 TS-G1746 TS-G1716
G TS-C1300R TS-E135C TS-E1395 TS-E1375 TS-A131C TS-A1310 TS-G1346 TS-G1316
Xsara Coupé (10/98-) A TS-C1700R (1) TS-E175C (1) TS-E1795 TS-E1775 TS-A171C (1) TS-A1710 TS-G1746 TS-G1716
F TS-C1300R TS-E135C TS-E1395 TS-E1375 TS-A131C TS-A1310 TS-G1346 TS-G1316
Picasso (12/99-) A TS-C1700R (1) TS-E175C (1) TS-E1795 TS-E1775 TS-A171C (1) TS-A1710 TS-G1746 TS-G1716
G TS-G1746 TS-G1716
G TS-C1300R TS-E135C TS-E1395 TS-E1375 TS-A131C TS-A1310 TS-G1346 TS-G1316
Berlingo (10/96-9/02) B TS-E1075 TS-G1046 TS-G1016
Berlingo (10/02-) A TS-G1746 TS-G1716
Evasion (3/94-9/02) A TS-C1700R (1) TS-E175C (1) TS-E1795 TS-E1775 TS-A171C (1) TS-A1710 TS-G1746 TS-G1716
F TS-C1700R * TS-E175C* TS-E1795* TS-E1775 TS-A171C* TS-A1710* TS-G1746 TS-G1716 *UD-M171
C3 (09/01-) A TS-E1775 TS-A171C TS-A1710 TS-G1746 TS-G1716
C5 (01/01-) A TS-C1700R (1) TS-E175C (1) TS-E1795 TS-E1775 TS-A171C (1) TS-A1710 TS-G1746 TS-G1716
G TS-C1700R TS-E175C TS-E1795 TS-E1775 TS-A171C TS-A1710 TS-G1746 TS-G1716
C8 (10/02-) A TS-G1746 TS-G1716
DAEWOO Tacuma (10/00-) A TS-C1300R TS-E135C TS-E1395 TS-E1375 TS-A131C TS-A1310 TS-G1346 TS-G1316
FIAT Coupé (12/93-) A TS-C1700R TS-E175C TS-E1395 TS-E1775 TS-A171C TS-A1710 TS-G1746 TS-G1716
Punto (9/93-8/99) E TS-E1075 TS-G1046 TS-G1016
Punto 3-/5-door (9/99-) A TS-E1775 (2) TS-G1746 (2) TS-G1716 (2)
Tipo (2/88-8/95) E TS-E1075 TS-G1046 TS-G1016
500 (4/92-9/98) B TS-G1016
Seicento / 600 (9/97-) B TS-G1016
Ulysse (3/94-) A TS-C1700R (1) TS-E175C (1) TS-E1795 TS-E1775 TS-A171C (1) TS-A1710 TS-G1046 TS-G1716
F TS-C1700R * TS-E175C* TS-E1795* TS-E1775 TS-A171C* TS-A1710* TS-G1746 TS-G1716 *UD-M171
Ulysse (10/02-) A TS-G1746 TS-G1716
Multipla (3/98-) A TS-E1775 TS-G1746 TS-G1716
FORD Galaxy (9/95-) A TS-E1775* TS-G1746 TS-G1716 *UD-M171
Location: A: Front Door B: Dual Dash C: Rear Deck D: Kick Panel E: Rear Side Shelf F: Rear Seat Side G: Rear Door H: Rear Pillar I: Hatch Door J: Rear Panel K: Rear Ceiling
(1) Tweeter fits original location, (2) Need to make 2 screw holes on the original speaker location, (3) original 13 cm speaker adaptor required, (4) original 17 cm adaptor required, (5) original 17 cm speaker location
required, (6) High range unit fits original location, (7) Front door pocket with 17 cm speaker location required, (8) rear door pocket with 17 cm speaker location required, (9) drill holes to fix the speaker, (10) 5-door,
(11) In case original speaker places are provided (12) Modify speaker frame, (13) Steel cut or some modification.
All mounting proposals and measurements contained in this guide have been checked. However, due to continual modification of certain car models, we cannot guarantee the complete accuracy of all statements,
technical information and recommendations. For that reason, a thorough inspection of the mounting area should be made before proceeding with installation.
