19

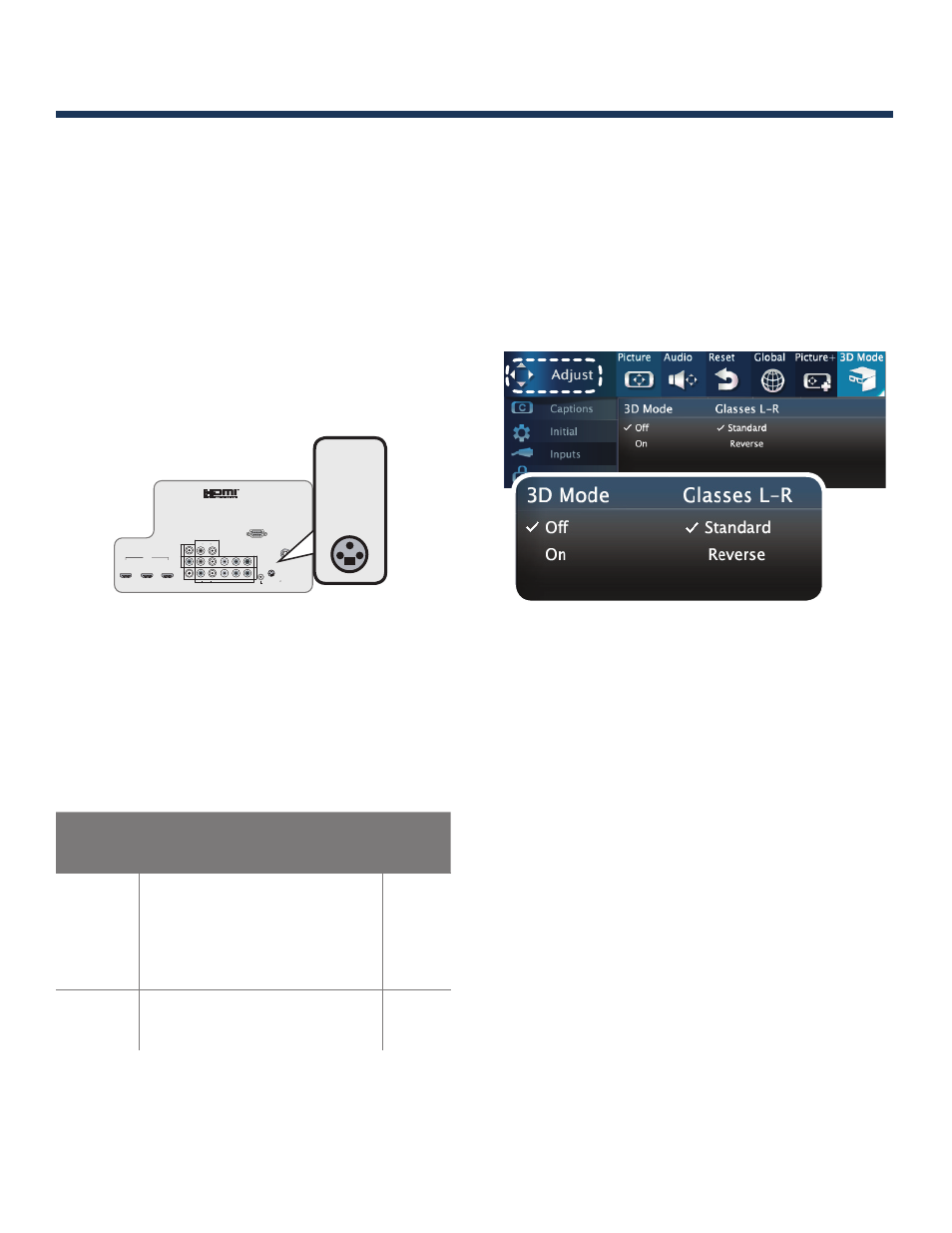

This section provides Instructions for viewing 3D video
using the TV’s 3D feature. The 3D options are found in
the
Adjust > 3D Mode menu.
Initial Setup
Check if your HDMI 3D video source device 1.
outputs a 1080p 60 Hz signal. This information will
be needed when you assign an input name in the
New Device Found screen.
If your 3D glasses came with an emitter box,
2.
connect the emitter box to the 3D GLASSES
EMITTER jack on the back of the TV.
1 2 3
HDMI
AVR AUDIO OUTPUT
L
R
Pb Pr
Pb Pr
INPUT
2
INPUT
1
DIGITAL AUDIO OUTPUT
DVI/PC
AUDIO (480i / 480p / 720p / 1080i) L R
L R INPUT AUDIO
3D GLASSES EMITTER
ANT
RS-232C
IR-NetCommand Output
1 2 3
HDMI
AVR
AUDIO
OUTPUT
L
R
Pb Y/ VIDEO Pr
Pb Pr
INPUT
2
INPUT
1
DIGITAL
AUDIO
OUTPUT
DVI/PC
AUDIO (480i / 480p / 720p / 1080i) L R
L R
INPUT
AUDIO
Y/ VIDEO
3D
GLASSES
EMITTER
ANT
RS-232C
IR-
NetCommand
Output
R
Power on the TV and the source device.
3.
Connect the source device to the TV’s HDMI input.
4.
When the 5. New Device Found screen displays,
name the input according to the table below.
The signal type and choice of name are important
because the TV will process the video signal
differently depending on the name you assign. If
your source device is a Blu-Ray disc or a game
console, the signal must be 1080p at 60 Hz.
Source
of 3D
Video
Type of 3D Video Signal
Assign
Name
Computer Recommended: 1080p 60 Hz
(1920 X 1080). The image will fill
the TV screen.
Other 60-Hz computer video
signals compatible with the TV
will display with black bars. PC
Any other
3D video
source To see 3D video, signal must be
1080p 60 Hz Any
other
name
Press 6. BACK to close the New Device Found
screen, or to change the name in the Input>Name
sub-menu.
Watching 3D Video
Press 1. ACTIVITY.
Highlight the icon for the 3D video input and press
2.
ENTER.
Press
3. MENU and select the Adjust > 3D Mode
menu.
Set
4.
3D Mode to On. The On setting will be memo-
rized for the current activity/input combination
when you exit this menu.
Use the Adjust > 3D Mode menu to enable 3D video
viewing.
Press
5. BACK to close the menu.
If the image does not appear correct, open the
6.
Adjust > 3D Mode menu again and set Glasses
L-R to Reverse to reflect the correct polarity.
To Watch Regular (non-3D) Video
The 3D Mode setting is memorized for each activity/
input combination. When you want to watch non-3D
video on the input selected above:
Press • ACTIVITY and select a different activity in
which the input is selectable.
Open the
• Adjust > 3D Mode menu and set 3D
Mode to Off.
3D Video
