5 104468
OWNER’S MANUAL
THEORY OF
OPERATION
The Fuel System: The air pump forces
air through the air line. The air is then
pushed through the burner head nozzle. This
air causes fuel to lift from the tank. A fine
mist of fuel is sprayed into the combustion
chamber.
The Air System: The motor turns the fan.
The fan pushes air into and around the
combustion chamber. This air is heated and
provides a stream of clean, hot air.
The Ignition System: The electronic
ignitor sends voltage to the spark plug. The
spark plug ignites the fuel and air mixture.
The Flame-Out Control System: This
system causes the heater to shut down if the
flame goes out.
Fan
Fuel
Filter
Air For Fuel
System Air For Combustion
And Heating
Fuel
Spark
Plug
Combustion
Chamber Intake
Air
Filter
Motor Air Pump
Air line
To Burner Electronic
Ignitor
Burner
Head
Clean
Heated
Air Out Cool
Air
In
Output
Air
Filter
Nozzle
Fuel
Tank

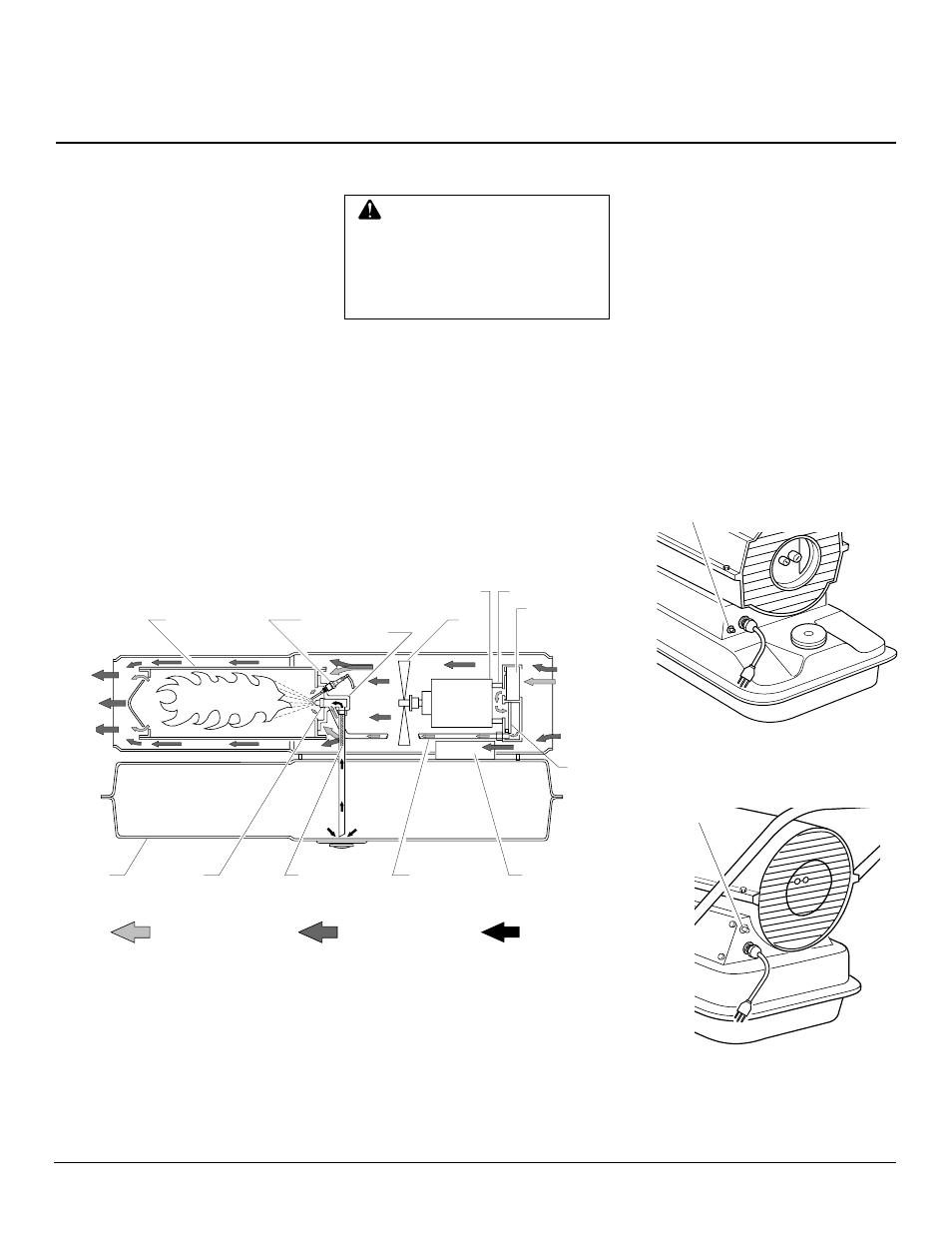

Figure 4 - Cross Section Operational View
OPERATION
WARNING: Review and un-
derstand the warnings in the
Safety Information Section. They
are needed to safely operate this
heater. Follow all local codes
when using this heater.
Figure 5 - Flame-Out Control Reset
Button, 35/70,000 Btu/Hr
To Start Heater
1. Follow all ventilation and safety infor-
mation.
2. Fill fuel tank with kerosene or No. 1
fuel oil.
3. Attach fuel cap.
4. Plug power cord of heater into standard
230 volt/50 hertz, grounded (earthed)
outlet. Use an extension cord if needed.
Use only a three-prong, grounded
(earthed) extension cord.
Flame-Out Control
Reset Button
Extension Cord Wire Size
Requirements
Up to 30.5 meters (100 feet) long, use 1.0
mm
2 (16 AWG) conductor 30.6 to 61 meters
(101 to 200 feet) long, use 1.5 mm 2 (14
AWG) conductor
Heater will start when power cord is plugged
into outlet. If not, push in flame-out control
reset button (see Figures 5 and 6).
To Stop Heater
1. Unplug power cord from outlet.
To Restart Heater
1. Wait 2 minutes after stopping heater.
2. Repeat steps under To Start Heater.
Figure 6 - Flame-Out Control Reset
Button, 100/150,000 Btu/Hr
Flame-Out Control
Reset Button
