Dca-125usj — trailer wiring diagram – Multiquip MQ Power 60 Hz Generator DCA125USJ User Manual

Page 46

background image

PAGE 46 — DCA-125USJ — OPERATION AND PARTS MANUAL — REV. #2 (01/27/11)

DCA-125USJ — TRAILER WIRING DIAGRAM

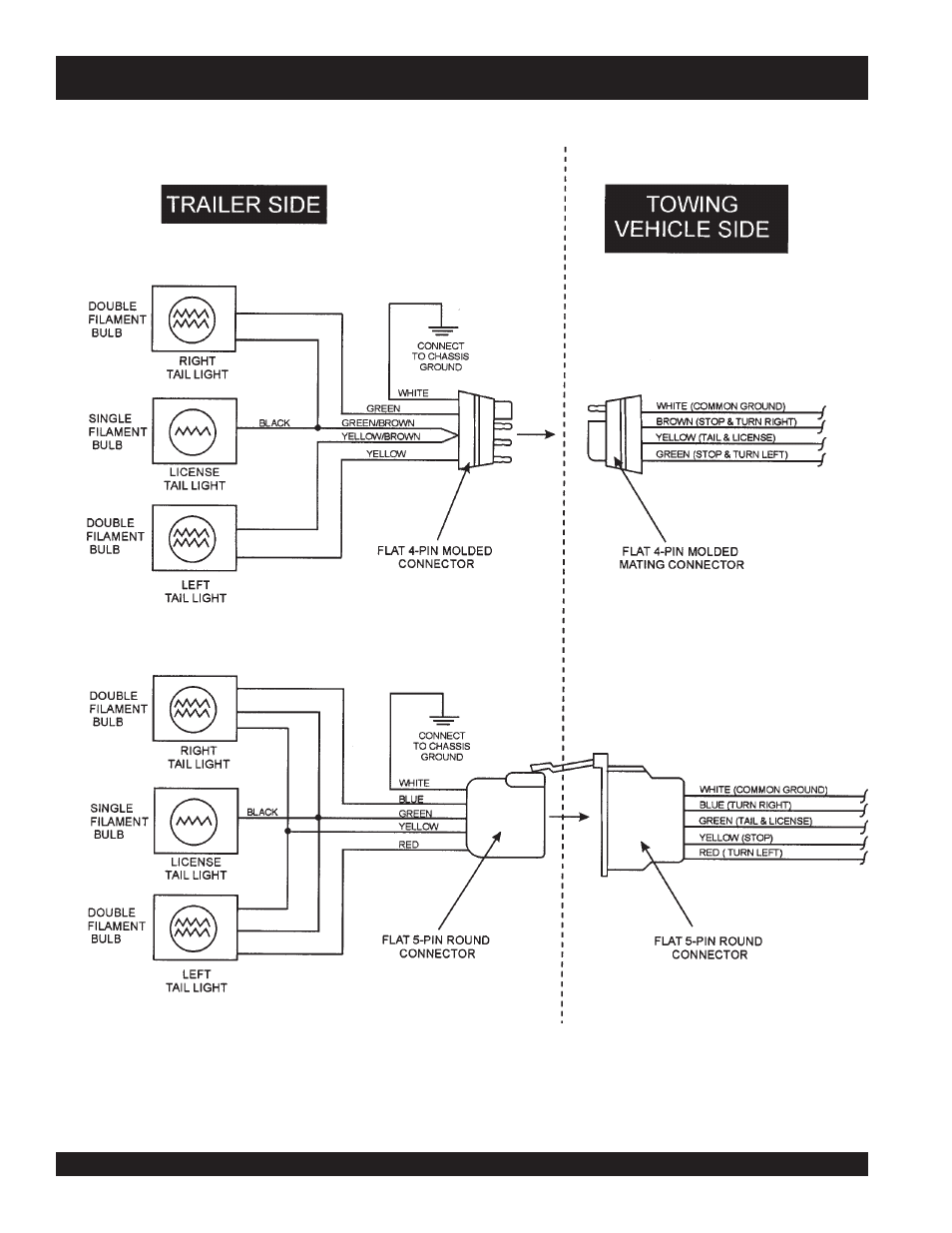

Figure 60. Trailer/Towing Vehicle Wiring Diagram
