PAGE 24 — DCA-125USJ — OPERATION AND PARTS MANUAL — REV. #2 (01/27/11)

Output Terminal Familiarization

The “

Output Terminal Panel ” (Figure 8) is provided with the

following:
 Three (3) 120/240V output receptacles @ 50 amp
 Three (3) Circuit Breakers @ 50 amps
 Two (2) 120V GFCI receptacles @ 20 amp
 Two (2) GFCI Circuit Breakers @ 20 amps
 Five (5) Output Terminal Lugs ( U, V, W, O, Ground)

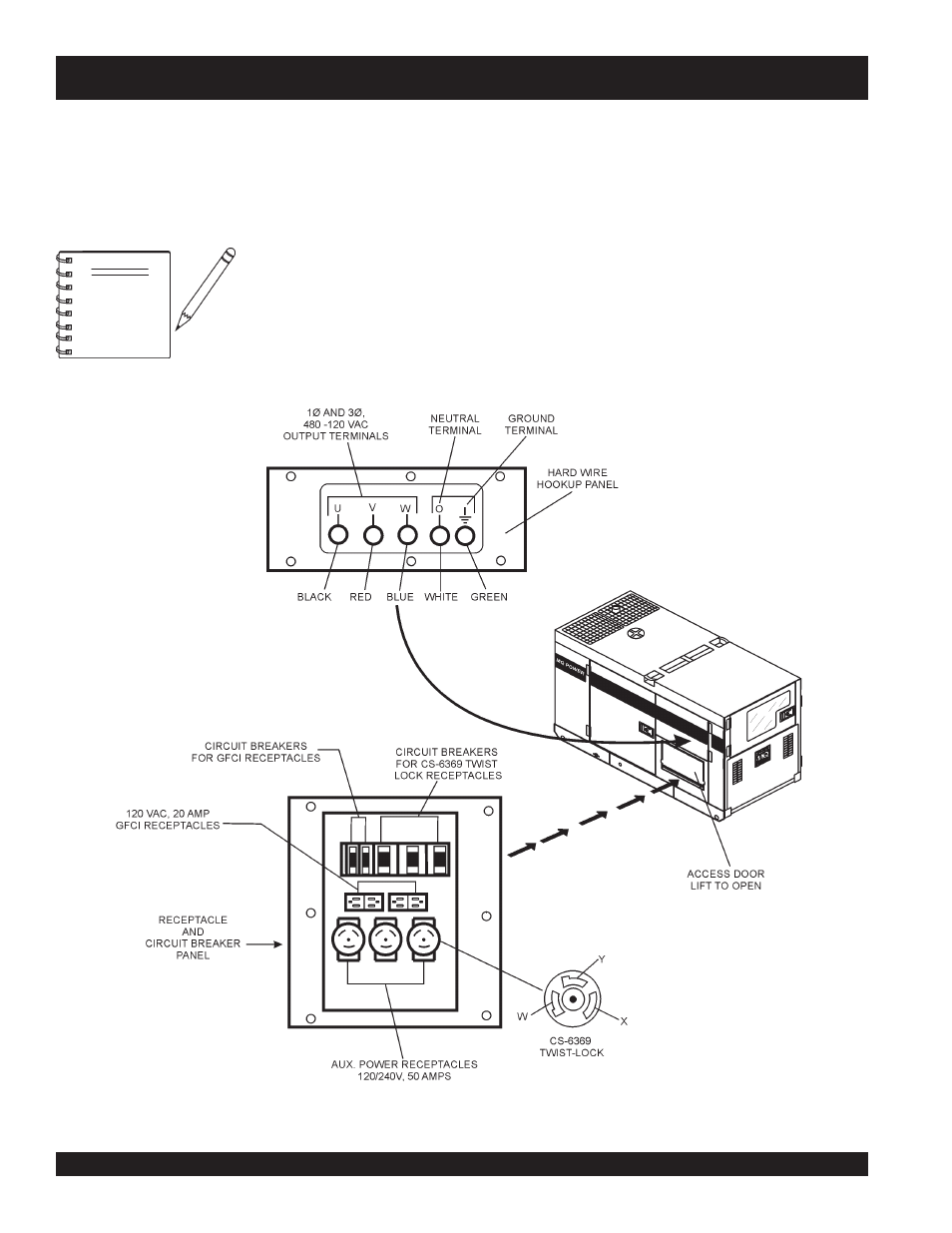

Output Terminal Panel

The

Output Terminal Panel (Figure 8) shown below is located

on the right-hand side (left from control panel) of the generator.
Lift up on the cover to gain access to receptacles and terminal
lugs.

NOTE

Terminal legs “O” and “Ground” are
considered

bonded grounds

.

Figure 8. Output Terminal Panel

DCA-125USJ — OUTPUT TERMINAL PANEL FAMILIARIZATION
