You can connect your stereo amplifier to your LCD monitor. Refer to your amplifier owner’s manual for more information.
Connect the LCD Monitor to a Stereo Amplifier
• Turn on the LCD monitor and the amplifier only after all connections have been made.
• Use an RCA cable to connect the AUDIO OUT connector (RCA) on the LCD monitor and the audio input on the amplifier.
• Do not reverse the audio left and right jacks.
• The AUDIO IN is used for audio input.
• The AUDIO OUT jack outputs sound from the selected Audio input.

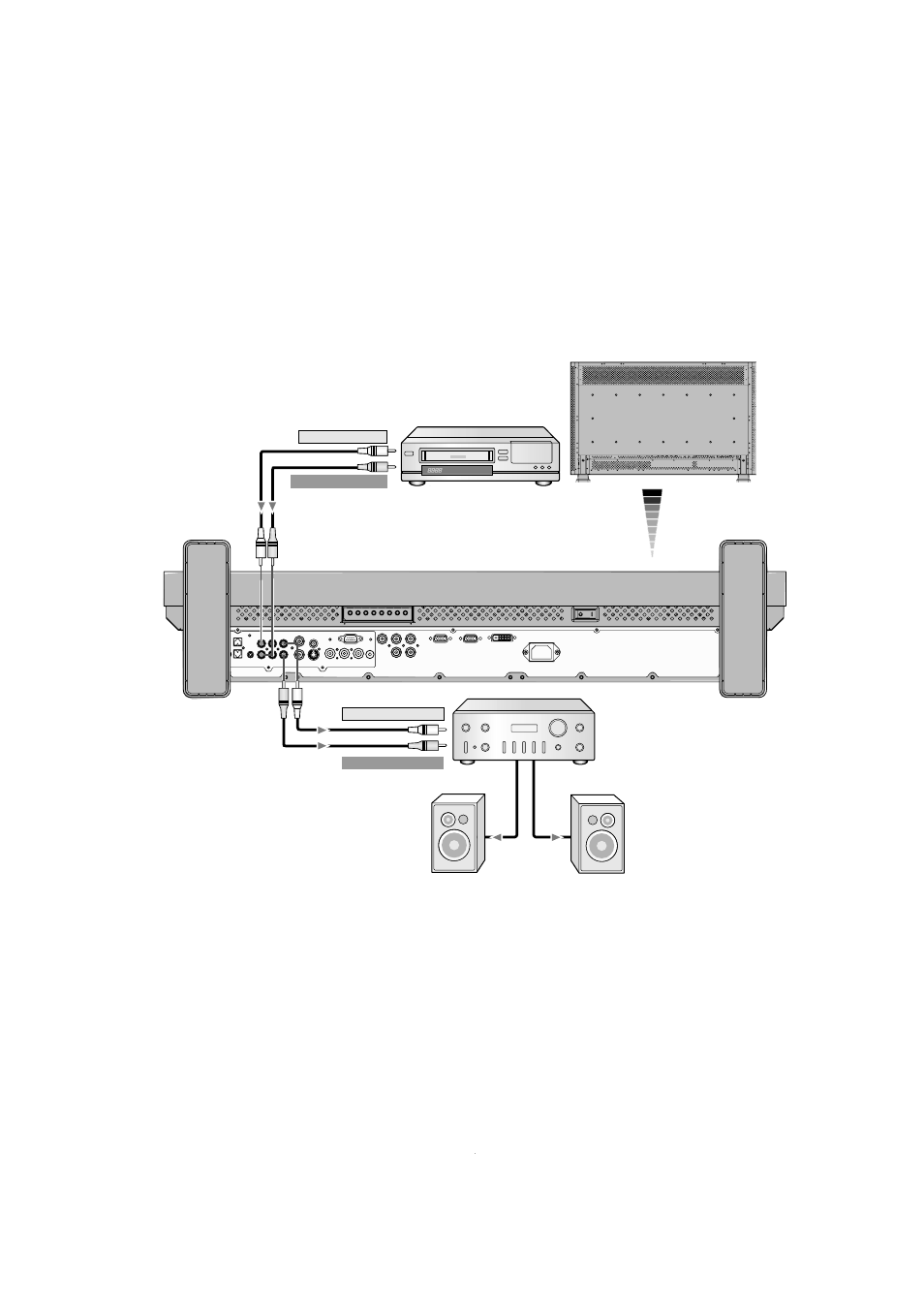

Connecting to a Stereo Amplifier
LCD monitor
To audio right output
To audio left output
RCA
To audio right output
To audio left output
Amplifier
External speaker
VCR or Laser disc player
RCA
External speaker
