Connecting your DVD player to your LCD monitor will enable you to display DVD video.
Refer to your DVD player user’s manual for more information.
Connect the LCD Monitor to a DVD Player
•
To connect the DVD/HD IN connector (BNC) on the LCD monitor, use a separately available BNC connector cable. You will
need a BNC-to-RCA adapter to connect a DVD player with an RCA pin jack to the BNC connector cable (not provided).
The AUDIO IN 2 and 3 (both RCA) can be used for audio input. For connection, select [AUDIO 2] or [AUDIO 3] from the
AUDIO INPUT button.

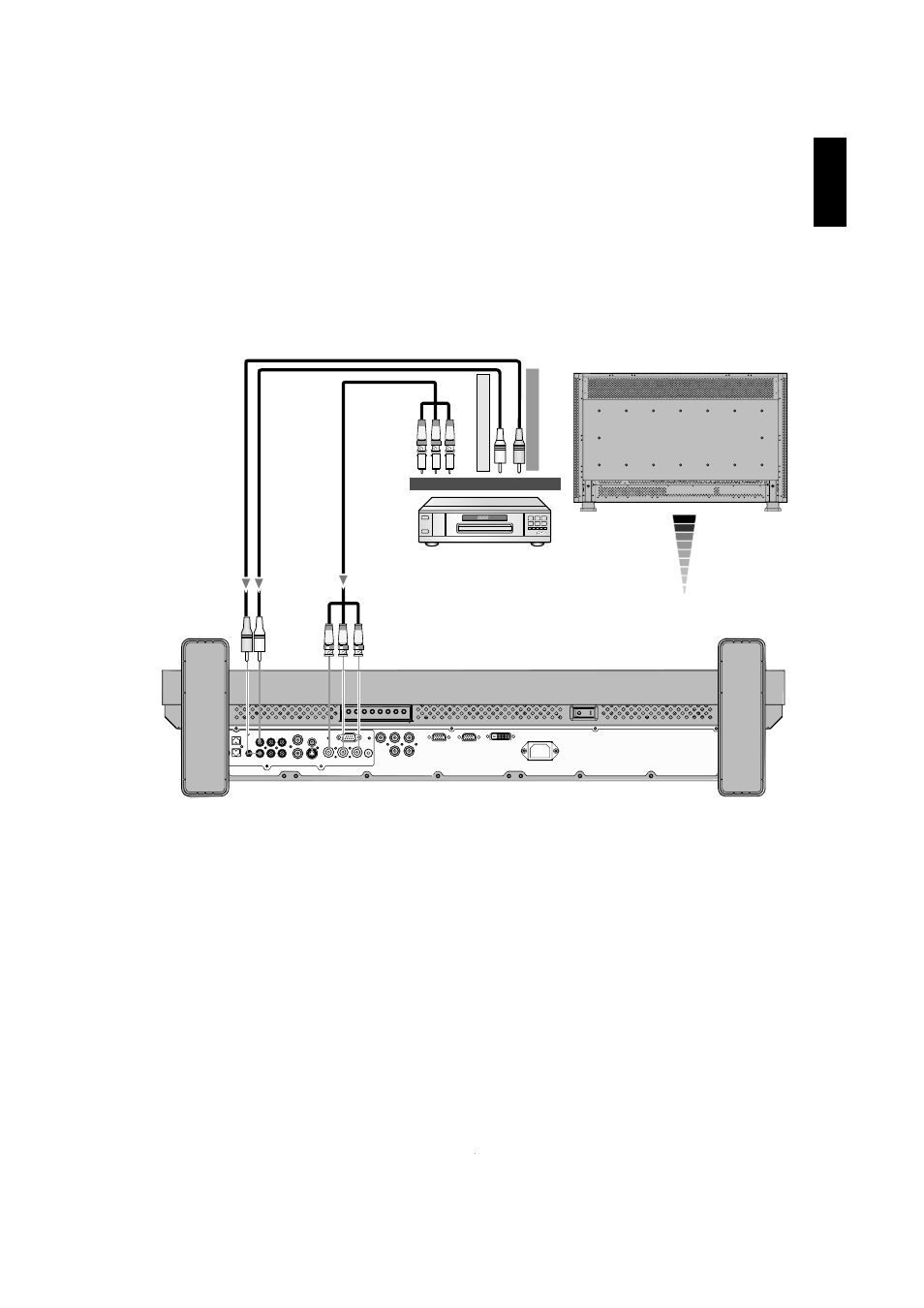

Connecting a DVD Player with component out
LCD monitor
RCA
BNC-to-RCA
adapter
BNC x 3
T
o
audio left output
BNC x 3
To DVD Component video output
T
o
audio r
ight output
DVD Player
