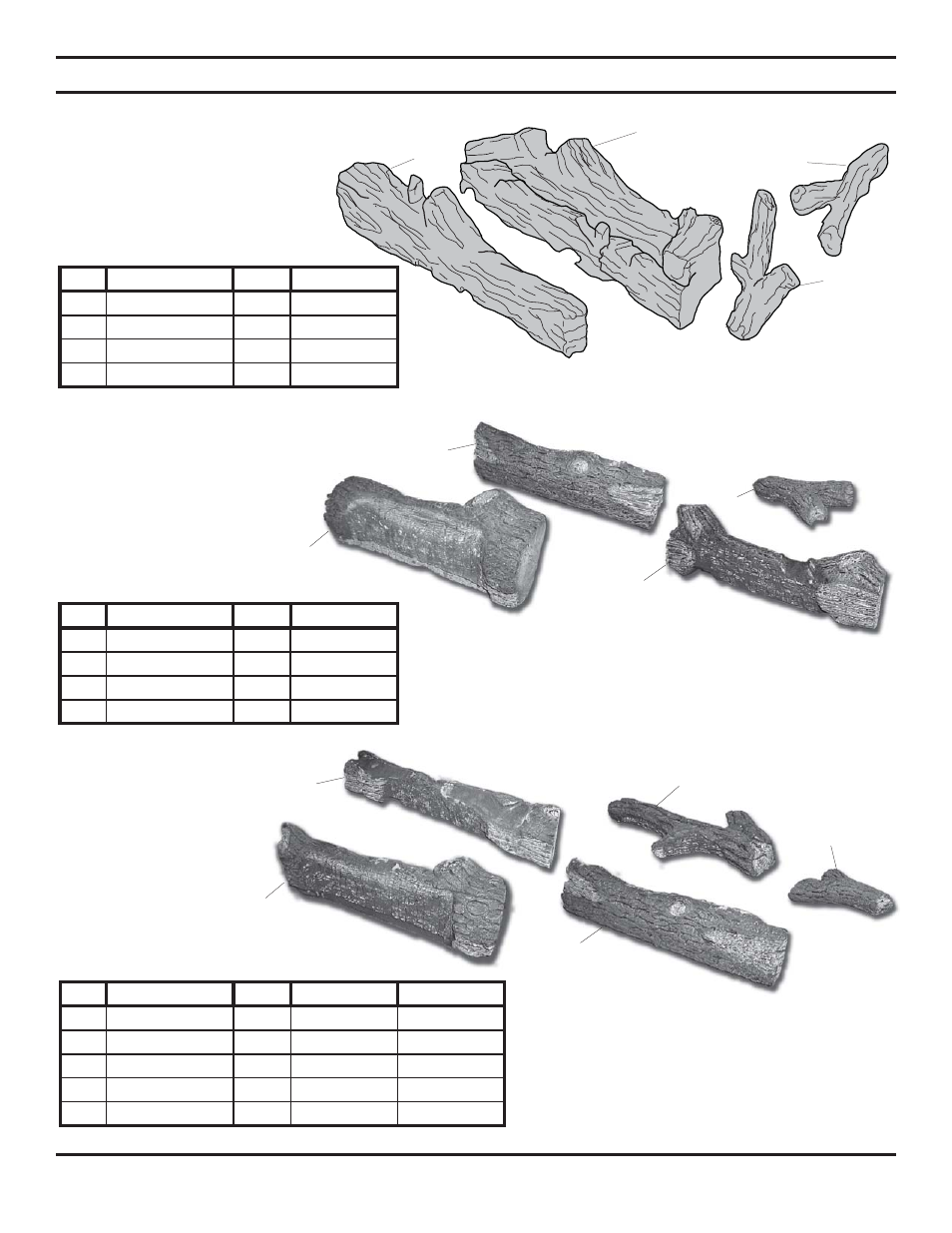

ILLUSTRATED PARTS BREAKDOWN
Item Description Qty. EYF24-F
1 Main Log 1 65D0006K
2 Front Log 1 65D1030K
3 Top Left Log 1 65D0008K
4 Top Right Log 1 65D0009K
EYF24-F
Item Description Qty. EYF18-R
1 Rear Log 1 65D1036K
2 Middle Log 1 65D1037K
3 Front Log 1 65D1038K
4 Top Log 1 65D1039K
Item Description Qty. EYF24-R EYF30-R
1 Rear Log 1 65D1031K 65D1031K
2 Middle Log 1 65D1032K 65D1500K
3 Front Log 1 65D1033K 65D1501K
4 Top Right Log 1 65D1034K 65D1034K
5 Top Left Log 1 65D1035K 65D1035K
EYF18-R
EYF24-R & EYF30-
