LOG PLACEMENT
INSTALLING EYF24-R OR EYF30-R LOG SET ON UNIT

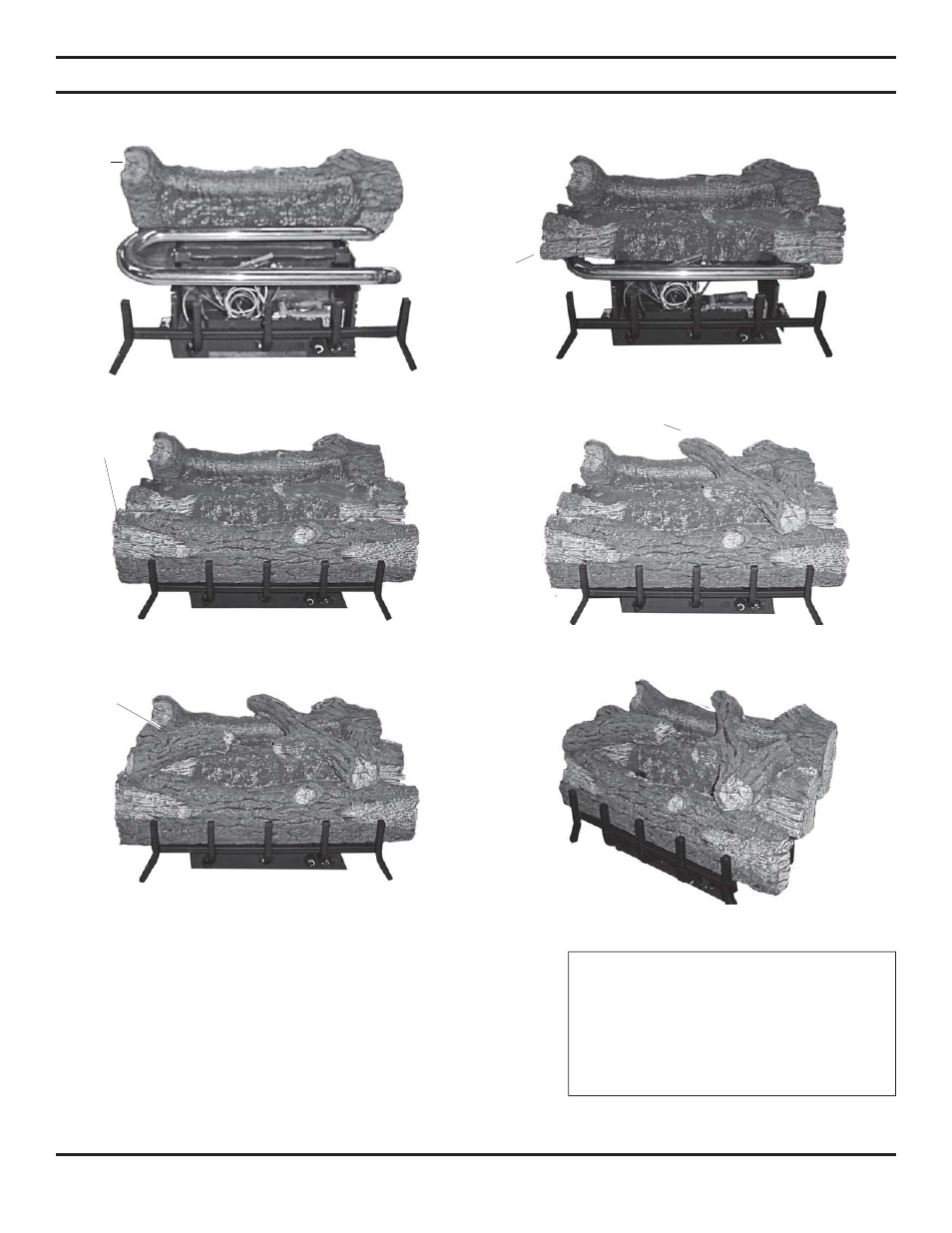

Figure 26 - Installing Front Log (#3) Figure 27 - Installing Top Right Log (#4)
Figure 23 - EYF24-R Logs on Base
Figure 24 - Installing Rear Log (#1) Figure 25 - Installing Middle Log (#2)
Figure 28 - Installing Top Left Log (#5)
Rear
Log (#1)
Middle Log
(#2)
Front
Log (#3)
Top Right Log (#4)
Top Left
Log (#5)
1. Place Rear Log (#1) on rear support. See Figure 24.
2. Place Middle Log (#2) on middle support. See Figure 25.
3. Place Front Log (#3) in between burner and grate. See Figure 26.
4. Place Top Right Log (#4) in bottom log cutouts. See Figure 27.
5. Rest Top Left Log (#5) in front and middle log cutouts. See Figure 28.
NOTE: Logs #1, #2 and #3 have ridges on the bottom which secure the logs to burner frame. After
installing each log, check to be sure it is stable.
NOTE: Installation instructions are the
same for 24" and 30" log sets. Pictures
used in this manual illustrate the 24"
set. Some variation may exist between
the images and the set included with
this manual.
